SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

27700REGULATOR ASSY, GENERATOR

main27700-13010i3KHJ,4KU..KP6#197802-198005

sub27700-36020

main27700-13050i3KHJ,4K#..KP6#198005-198409

4702

83391SWITCH, VACUUM

main83391-10020iKP61198108-198409

83399BRACKET, VACUUM SWITCH

main83399-10010iKP61..4F..DXA;KP61..DLX,S,SE,SI,STD,XL198108-198409

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-12010iKP6#197802-197908

main83420-16010iKP6#197908-198409

DENSO

sub83420-20020

main83420-20020iKP6#197908-198409

YAZAKI

83430SWITCH ASSY, WATER LEVEL SENDER

main83430-96441iKP61..4D198208-198409

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iKP6#197802-198403

sub83530-14030

main83530-12040iKP61198403-198409

sub83530-14040

84210SWITCH ASSY, BACK-UP LAMP

main84210-10060iKP61..5F197802-198409

main84210-62020iKP6#..4F197802-198409

84540SWITCH ASSY, NEUTRAL START

main84540-10030iKP61..2FC197802-198108

main84540-14090iKP61..3FC198108-198208

main84540-14100iKP61..3FC198208-198409

85336SWITCH ASSY, RESERVE TANK LEVEL WARNING

main85335-10010iKP61..S,SE,XL197802-198208

main85335-10011iKP61..S,SE,XL197810-198005

8601

89427SWITCH, TEMPERATURE DETECT

main89428-10030iKP6#197806-198005

main89428-10031iKP61..4F..DXA;KP6#..(DLX,S,SE,STD,XL)..CBR198005-198409

main89428-10040iKP6#197807-198005

COLD SPEC

main89428-10050iKP61..EFI198005-198409

COLD SPEC

main89428-13010iKP61197802-197807

COLD SPEC

main89428-13020iKP61197802-197806

89428SWITCH, TEMPERATURE DETECT, NO.2

main83430-10010iKP61..ATM198008-198208

W/COOLER

main83430-96440iKP62197810-198108

W/COOLER

sub89428-60040

main83430-96441iKP61..4D198201-198409

W/COOLER

89465SENSOR, OXYGEN

main89465-19065iKP61..SED198108-198409

sub89465-19066

89466GASKET, OXYGEN SENSOR

main89466-30010iKP61..SED198108-198409

sub89466-20020

89492SENSOR, ELECTROLYTE LEVEL

main89492-20010iKP61..S,SE197802-198208

89620IGNITER ASSY

main89620-10040iKP61197802-198005

sub89620-12H90

main89620-10041iKP61..4F..DXA;KP61..SED..(DLX,S,SE,STD,XL)198005-198208

sub89620-10H90

main89620-10060iKP61..5F..DXA198108-198208

main89620-10080iKP61..XL..EFI198208-198409

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9010106008

main90101-06008

9017908059

main90179-08059

9046106063

main90461-06063

9046400073

main90464-00073

9046400108

main90464-00108

9165640616

main91656-40616

9321016010

main93210-16010

9338516025

main93385-16025

9451100600

main94511-00600

9461110601

main94611-10601

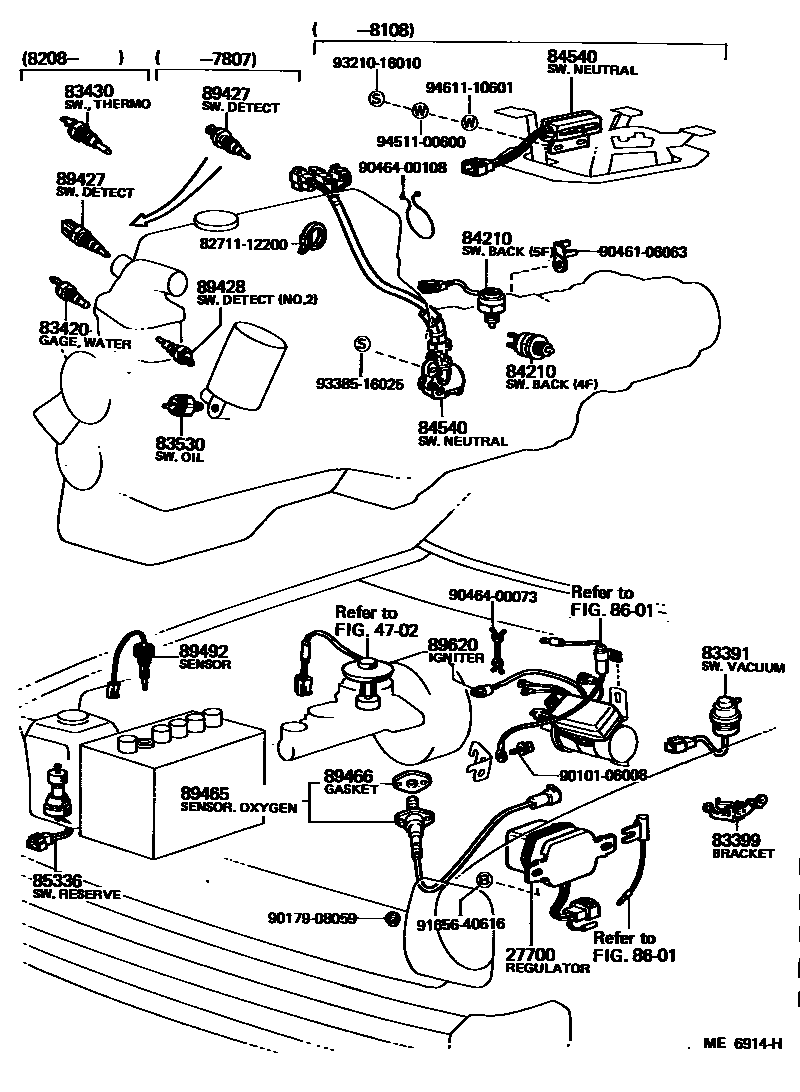

28 parts on this diagram · 5 diagrams in section
