REAR SEAT & SEAT TRACK

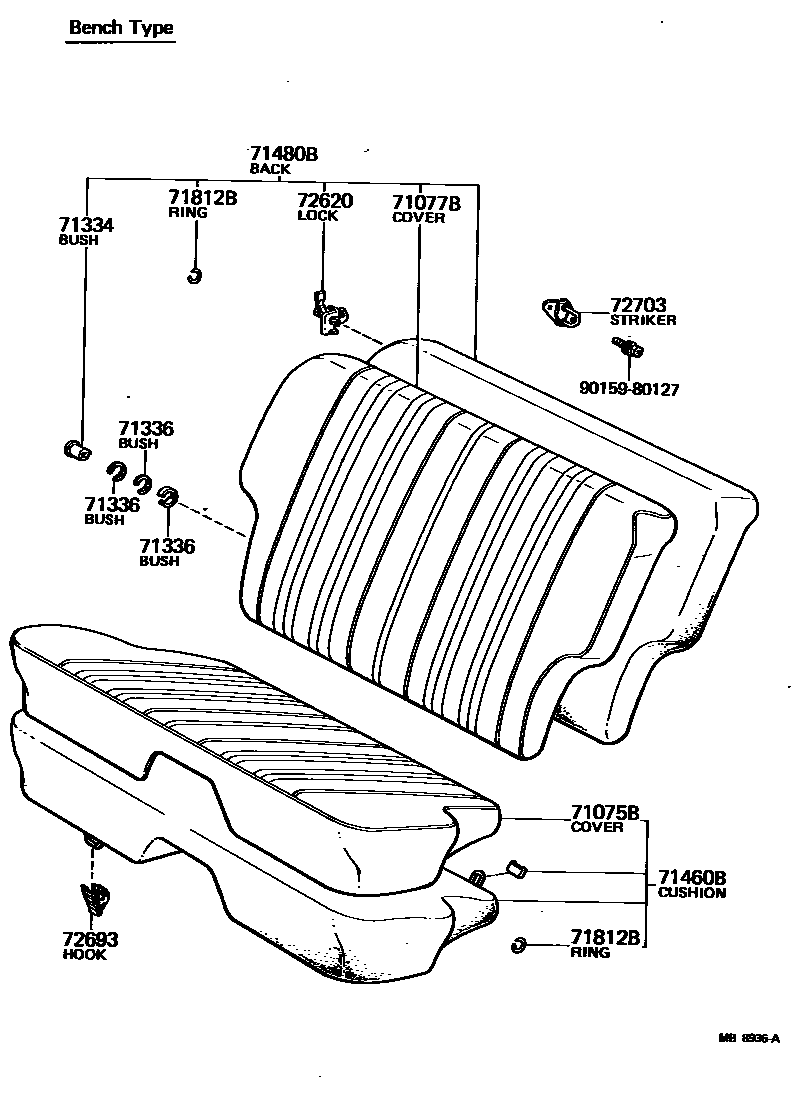

Parts diagram
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-10200-01i197802-198005
VL,BLACK,BLACK,TRIM2#
main71075-10201-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71075-10210-01i197802-198005
PF,BLACK,BLACK,TRIM2#
main71075-10210-04i197802-198005
PF,BLUE,BLUE,TRIM8#
main71075-10210-06i197802-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-10211-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71075-10211-04i198005-198108
PF,BLUE,BLUE,TRIM2#,4#,8#
main71075-10211-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM2#,4#
main71075-10212i198202-198203
FB,LIMITED DXA
main71075-10213i198205-198207
SPECIAL DXA,DARK BROWN
main71075-10214i198205-198207
SPECIAL DXA,WHITE
main71075-10220-01i197802-197806
FB,BLACK,BLACK,TRIM2#
sub71075-10220
main71075-10220-04i197802-197806
FB,BLUE,BLUE,TRIM8#
sub71075-10220
main71075-10220-06i197802-197806
FB,LIGHT BROWN,BROWN,TRIM4#
sub71075-10220
main71075-10220-11i197806-198005
FB,BLACK,BLACK,TRIM2#
sub71075-10220
main71075-10220-14i197806-198005
FB,BLUE,BLUE,TRIM8#
sub71075-10220
main71075-10220-16i197806-198005
FB,LIGHT BROWN,BROWN,TRIM4#
sub71075-10220
main71075-10221-01i198005-198108
FB,BLACK,BLACK,TRIM2#
main71075-10221-04i198005-198108
FB,BLUE & BLACK,BLUE
main71075-10221-06i198005-198108
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-10222i198011-198011
LIMITED EDITION,K-TY
main71075-10223-01i198103-198103
LIMITED EDITION,BLACK,BLACK,TRIM2#
main71075-10223-06i198103-198103
LIMITED EDITION,LIGHT BROWN,BROWN,TRIM4#
main71075-10224-02i198108-198208
FB,BLACK & RED,RED/MAROON,TRIM2#
main71075-10224-07i198108-198208
FB,BLACK & GREEN,GREEN,TRIM2#
main71075-10230-01i197802-198005
FB,BLACK,BLACK,TRIM2#
main71075-10230-04i197802-198005
FB,BLUE,BLUE,TRIM8#
main71075-10230-06i197802-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-10231-01i198005-198208
FB,BLACK,BLACK,TRIM2#
main71075-10231-04i198005-198108
FB,BLUE,BLUE,TRIM2#,4#,8#
main71075-10231-06i198005-198208
FB,LIGHT BROWN,BROWN,TRIM2#,4#
main71075-10240-01i197802-197806
FB,BLACK,BLACK,TRIM2#
sub71075-10240
main71075-10240-04i197802-197806
FB,BLUE,BLUE,TRIM8#
sub71075-10240
main71075-10240-06i197802-197806
FB,LIGHT BROWN,BROWN,TRIM4#
sub71075-10240
main71075-10240-11i197806-198005
FB,BLACK,BLACK,TRIM2#
sub71075-10240
main71075-10240-14i197806-198005
FB,BLUE,BLUE,TRIM8#
sub71075-10240
main71075-10240-16i197806-198005
FB,LIGHT BROWN,BROWN,TRIM4#
sub71075-10240
main71075-10241-01i198005-198208
FB,BLACK,BLACK,TRIM2#
main71075-10241-04i198005-198108
FB,BLUE,BLUE,TRIM2#,4#,8#
main71075-10241-06i198005-198208
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-10250-01i197802-198005
PF,BLACK,BLACK,TRIM2#
main71075-10250-04i197802-198005
PF,BLUE,BLUE,TRIM8#
main71075-10250-06i197802-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-10251-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71075-10251-04i198005-198108
PF,BLUE,BLUE,TRIM8#
main71075-10251-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-10260-01i197802-197806
FB,BLACK,BLACK,TRIM2#
sub71075-10260
main71075-10260-04i197802-197806
FB,BLUE,BLUE,TRIM8#
sub71075-10260
main71075-10260-06i197802-197806
FB,LIGHT BROWN,BROWN,TRIM4#
sub71075-10260
main71075-10260-11i197806-198005
FB,BLACK,BLACK,TRIM2#
sub71075-10260
main71075-10260-14i197806-198005
FB,BLUE,BLUE,TRIM8#
sub71075-10260
main71075-10260-16i197806-198005
FB,LIGHT BROWN,BROWN,TRIM4#
sub71075-10260
main71075-10261-01i198005-198108
FB,BLACK,BLACK,TRIM2#
main71075-10261-04i198005-198108
FB,BLUE,BLUE,TRIM8#
main71075-10261-06i198005-198108
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-10262-02i198108-198208
FB,BLACK & RED,RED/MAROON,TRIM2#
main71075-10262-07i198108-198208
FB,BLACK & GREEN,GREEN,TRIM2#
main71075-10270-01i197802-198005
FB,BLACK,BLACK,TRIM2#
main71075-10270-04i197802-198005
FB,BLUE,BLUE,TRIM8#
main71075-10270-06i197802-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-10271-01i198005-198208
FB,BLACK,BLACK,TRIM2#
main71075-10271-04i198005-198108
FB,BLUE,BLUE,TRIM2#,4#,8#
main71075-10271-06i198005-198208
FB,LIGHT BROWN,BROWN,TRIM2#,4#
main71075-10280-01i197802-197806
FB,BLACK,BLACK,TRIM2#
sub71075-10280
main71075-10280-04i197802-197806
FB,BLUE,BLUE,TRIM8#
sub71075-10280
main71075-10280-06i197802-197806
FB,LIGHT BROWN,BROWN,TRIM4#
sub71075-10280
main71075-10280-11i197806-198005
FB,BLACK,BLACK,TRIM2#
sub71075-10280
main71075-10280-14i197806-198005
FB,BLUE,BLUE,TRIM8#
sub71075-10280
main71075-10280-16i197806-198005
FB,LIGHT BROWN,BROWN,TRIM4#
sub71075-10280
main71075-10281-01i198005-198208
FB,BLACK,BLACK,TRIM2#
main71075-10281-04i198005-198108
FB,BLUE,BLUE,TRIM2#,4#,8#
main71075-10281-06i198005-198208
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-10300-01i198003-198003
FB,LIMITED S,BLACK,BLACK,TRIM2#
main71075-10350-01i197903-198005
FB,TARTHAN CHECK,BLACK,BLACK,TRIM2#
main71075-10360-01i197903-198005
FB,TARTHAN CHECK,BLACK,BLACK,TRIM2#
main71075-10390-08i198005-198108
FB,XL-L,IVORY,IVORY,TRIM0#
main71075-10391-08i198108-198208
FB,XL-L,IVORY,IVORY,TRIM0#
main71075-10410-08i198005-198108
FB,XL-L,IVORY,IVORY,TRIM0#
main71075-10411-08i198108-198208
FB,XL-L,IVORY,IVORY,TRIM0#
main71075-10430i198208-198409
VL,LIGHT GRAY
main71075-10440-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71075-10440-05i198208-198409
PF,BEIGE,BEIGE,TRIM1#,4#
main71075-10441i198211-198212
STARLET SPECIAL,SEMI FB
main71075-10442i198301-198409
STARLET SPECIAL,SEMI FB
main71075-10443i198301-198303
LISSE SPECIAL,SEMI FB
main71075-10450-03i198208-198304
FB,GRAY,GRAY,TRIM1#
main71075-10450-06i198208-198304
FB,BROWN,BROWN,TRIM4#
main71075-10451-03i198304-198409
FB,GRAY,GRAY,TRIM1#
main71075-10451-06i198304-198409
FB,BROWN,BROWN,TRIM4#
main71075-10452i198308-198409
SUPER,FB
main71075-10460i198208-198304
FB,XL-L,BLACK
main71075-10461i198304-198409
FB,XL-L,IVORY
main71075-10470-02i198208-198409
FB,RED,RED/MAROON,TRIM1#
main71075-10470-09i198208-198409
FB,YELLOW,YELLOW,TRIM1#
main71075-10471i198305-198409
LIMITED S,SI
main71075-10500-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71075-10500-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71075-10501i198301-198303
LISSE SPECIAL,SEMI FB
main71075-10510-03i198208-198304
FB,GRAY,GRAY,TRIM1#
main71075-10510-06i198208-198304
FB,BROWN,BROWN,TRIM4#
main71075-10511-03i198304-198409
FB,GRAY,GRAY,TRIM1#
main71075-10511-06i198304-198409
FB,BROWN,BROWN,TRIM4#
main71075-10512i198308-198409
SUPER,FB
main71075-10520i198208-198304
FB,XL-L,BLACK
main71075-10521i198304-198409
FB,XL-L,IVORY
main71075-10530-02i198208-198409
FB,RED,RED/MAROON,TRIM1#
main71075-10530-09i198208-198409
FB,YELLOW,YELLOW,TRIM1#
main71075-10540-02i198208-198409
FB,DARK WINE,RED/MAROON,TRIM3#
main71075-10540-03i198208-198409
FB,GRAY,GRAY,TRIM1#
main71075-10540-06i198208-198409
FB,BROWN,BROWN,TRIM4#
main71075-96440-01i197810-198005
VL,BLACK,BLACK,TRIM2#
main71075-96441-01i197810-198005
PF,BLACK,BLACK,TRIM2#
main71075-96441-04i197810-198005
PF,BLUE,BLUE,TRIM8#
main71075-96441-06i197810-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-96442-01i197810-198005
FB,BLACK,BLACK,TRIM2#
main71075-96442-04i197810-198005
FB,BLUE,BLUE,TRIM8#
main71075-96442-06i197810-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-96446-01i198005-198208
FB,BLACK,BLACK,TRIM2#
main71075-96446-06i198005-198208
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-96448-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71075-96449-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71075-96449-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-96452i198208-198409
PF,LIGHT GRAY
main71075-96453i198208-198409
FB,GRAY
main71075-96458i198208-198409
VL,LIGHT GRAY
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-10260-01i197802-197910
VL,BLACK,BLACK,TRIM2#
sub71077-10261
main71077-10261-01i197910-198005
VL,BLACK,BLACK,TRIM2#
main71077-10262-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71077-10270-01i197802-197910
PF,BLACK,BLACK,TRIM2#
sub71077-10271
main71077-10270-04i197802-197910
PF,BLUE,BLUE,TRIM8#
sub71077-10271
main71077-10270-06i197802-197910
PF,LIGHT BROWN,BROWN,TRIM4#
sub71077-10271
main71077-10271-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71077-10271-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71077-10271-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-10272-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71077-10272-04i198005-198108
PF,BLUE,BLUE,TRIM2#,4#,8#
main71077-10272-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM2#,4#
main71077-10273i198202-198203
FB,LIMITED DXA
main71077-10274i198205-198207
SPECIAL DXA,DARK BROWN
main71077-10275i198205-198207
SPECIAL DXA,WHITE
main71077-10330-01i197802-197910
PF,BLACK,BLACK,TRIM2#
sub71077-10331
main71077-10330-04i197802-197910
PF,BLUE,BLUE,TRIM8#
sub71077-10331
main71077-10330-06i197802-197910
PF,LIGHT BROWN,BROWN,TRIM4#
sub71077-10331
main71077-10331-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71077-10331-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71077-10331-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-10332-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71077-10332-04i198005-198108
PF,BLUE,BLUE,TRIM2#,4#,8#
main71077-10332-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-10550i198208-198409
VL,LIGHT GRAY
main71077-10560-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71077-10560-05i198208-198409
PF,BEIGE,BEIGE,TRIM1#,4#
main71077-10561i198211-198212
STARLET SPECIAL,SEMI FB
main71077-10562i198301-198409
STARLET SPECIAL,SEMI FB
main71077-10563i198301-198303
LISSE SPECIAL,SEMI FB
main71077-10630-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71077-10630-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71077-10631i198301-198303
LISSE SPECIAL,SEMI FB
main71077-96440-01i197810-198005
VL,BLACK,BLACK,TRIM2#
main71077-96441-01i197810-198005
PF,BLACK,BLACK,TRIM2#
main71077-96441-04i197810-198005
PF,BLUE,BLUE,TRIM8#
main71077-96441-06i197810-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-96442-01i197810-198005
PF,BLACK,BLACK,TRIM2#
main71077-96442-04i197810-198005
PF,BLUE,BLUE,TRIM8#
main71077-96442-06i197810-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-96446-01i198005-198208
FB,BLACK,BLACK,TRIM2#
main71077-96446-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM2#
main71077-96448-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71077-96449-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71077-96449-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-96452i198208-198409
PF,LIGHT GRAY
main71077-96453i198208-198409
FB,GRAY
main71077-96458i198208-198409
VL,LIGHT GRAY
71334BUSH, REAR SEATBACK PIVOT
main71331-13010i197810-198409
main90386-13003i197802-198208
main90386-13005i197802-198208
71336BUSH OR SPACER, REAR SEATBACK HINGE
main71331-20030i197802-198208
T=2
main71332-10010i197802-198208
T=8
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
main71460-10170-01i197802-198005
VL,BLACK,BLACK,TRIM2#
main71460-10171-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71460-10180-01i197802-198005
PF,BLACK,BLACK,TRIM2#
main71460-10180-04i197802-198005
PF,BLUE,BLUE,TRIM8#
main71460-10180-06i197802-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-10181-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71460-10181-04i198005-198108
PF,BLUE,BLUE,TRIM2#,4#,8#
main71460-10181-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM2#,4#
main71460-10190-01i197802-197806
FB,BLACK,BLACK,TRIM2#
sub71460-10190
main71460-10190-04i197802-197806
FB,BLUE,BLUE,TRIM8#
sub71460-10190
main71460-10190-06i197802-197806
FB,LIGHT BROWN,BROWN,TRIM4#
sub71460-10190
main71460-10190-11i197806-198005
FB,BLACK,BLACK,TRIM2#
sub71460-10190
main71460-10190-14i197806-198005
FB,BLUE,BLUE,TRIM8#
sub71460-10190
main71460-10190-16i197806-198005
FB,LIGHT BROWN,BROWN,TRIM4#
sub71460-10190
main71460-10191-01i198005-198108
FB,BLACK,BLACK,TRIM2#
main71460-10191-04i198005-198108
FB,BLUE,BLUE,TRIM8#
main71460-10191-06i198005-198108
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-10194-02i198108-198208
FB,BLACK & RED,RED/MAROON,TRIM2#
main71460-10194-07i198108-198208
FB,BLACK & GREEN,GREEN,TRIM2#
main71460-10200-01i197802-198005
FB,BLACK,BLACK,TRIM2#
main71460-10200-04i197802-198005
FB,BLUE,BLUE,TRIM8#
main71460-10200-06i197802-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-10201-01i198005-198208
FB,BLACK,BLACK,TRIM2#
main71460-10201-04i198005-198108
FB,BLUE,BLUE,TRIM2#,4#,8#
main71460-10201-06i198005-198208
FB,LIGHT BROWN,BROWN,TRIM2#,4#
main71460-10210-01i197802-197806
FB,BLACK,BLACK,TRIM2#
sub71460-10210
main71460-10210-04i197802-197806
FB,BLUE,BLUE,TRIM8#
sub71460-10210
main71460-10210-06i197802-197806
FB,LIGHT BROWN,BROWN,TRIM4#
sub71460-10210
main71460-10210-11i197806-198005
FB,BLACK,BLACK,TRIM2#
sub71460-10210
main71460-10210-14i197806-198005
FB,BLUE,BLUE,TRIM8#
sub71460-10210
main71460-10210-16i197806-198005
FB,LIGHT BROWN,BROWN,TRIM4#
sub71460-10210
main71460-10211-01i198005-198208
FB,BLACK,BLACK,TRIM2#
main71460-10211-04i198005-198108
FB,BLUE,BLUE,TRIM2#,4#,8#
main71460-10211-06i198005-198208
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-10220-01i197802-198005
PF,BLACK,BLACK,TRIM2#
main71460-10220-04i197802-198005
PF,BLUE,BLUE,TRIM8#
main71460-10220-06i197802-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-10221-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71460-10221-04i198005-198108
PF,BLUE,BLUE,TRIM8#
main71460-10221-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-10230-01i197802-197806
PF,BLACK,BLACK,TRIM2#
sub71460-10230
main71460-10230-04i197802-197806
PF,BLUE,BLUE,TRIM8#
sub71460-10230
main71460-10230-06i197802-197806
PF,LIGHT BROWN,BROWN,TRIM4#
sub71460-10230
main71460-10230-11i197806-198005
FB,BLACK,BLACK,TRIM2#
sub71460-10230
main71460-10230-14i197806-198005
FB,BLUE,BLUE,TRIM8#
sub71460-10230
main71460-10230-16i197806-198005
FB,LIGHT BROWN,BROWN,TRIM4#
sub71460-10230
main71460-10231-01i198005-198108
FB,BLACK,BLACK,TRIM2#
main71460-10231-04i198005-198108
FB,BLUE,BLUE,TRIM8#
main71460-10231-06i198005-198108
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-10232-02i198108-198208
FB,BLACK & RED,RED/MAROON,TRIM2#
main71460-10232-07i198108-198208
FB,BLACK & GREEN,GREEN,TRIM2#
main71460-10240-01i197802-198005
FB,BLACK,BLACK,TRIM2#
main71460-10240-04i197802-198005
FB,BLUE,BLUE,TRIM8#
main71460-10240-06i197802-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-10241-01i198005-198208
FB,BLACK,BLACK,TRIM2#
main71460-10241-04i198005-198108
FB,BLUE,BLUE,TRIM2#,4#,8#
main71460-10241-06i198005-198208
FB,LIGHT BROWN,BROWN,TRIM2#,4#
main71460-10250-01i197802-197806
FB,BLACK,BLACK,TRIM2#
sub71460-10250
main71460-10250-04i197802-197806
FB,BLUE,BLUE,TRIM8#
sub71460-10250
main71460-10250-06i197802-197806
FB,LIGHT BROWN,BROWN,TRIM4#
sub71460-10250
main71460-10250-11i197806-198005
FB,BLACK,BLACK,TRIM2#
sub71460-10250
main71460-10250-14i197806-198005
FB,BLUE,BLUE,TRIM8#
sub71460-10250
main71460-10250-16i197806-198005
FB,LIGHT BROWN,BROWN,TRIM4#
sub71460-10250
main71460-10251-01i198005-198208
FB,BLACK,BLACK,TRIM2#
main71460-10251-04i198005-198108
FB,BLUE,BLUE,TRIM2#,4#,8#
main71460-10251-06i198005-198208
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-10320-01i197903-198005
FB,TARTAN CHECK,BLACK,BLACK,TRIM2#
main71460-10330-01i197903-198005
FB,TARTAN CHECK,BLACK,BLACK,TRIM2#
main71460-10360-08i198005-198108
XL-L,IVORY,IVORY,TRIM0#
main71460-10361-08i198108-198208
XL-L,IVORY,IVORY,TRIM0#
main71460-10370-08i198005-198108
FB,XL-L,IVORY,IVORY,TRIM0#
main71460-10371-08i198108-198208
FB,XL-L,IVORY,IVORY,TRIM0#
main71460-10400i198208-198409
VL,LIGHT GRAY
main71460-10410-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71460-10410-05i198208-198409
PF,BEIGE,BEIGE,TRIM1#,4#
main71460-10430-03i198208-198304
FB,GRAY,GRAY,TRIM1#
main71460-10430-06i198208-198304
FB,BROWN,BROWN,TRIM4#
main71460-10431-03i198304-198409
FB,GRAY,GRAY,TRIM1#
main71460-10431-06i198304-198409
FB,BROWN,BROWN,TRIM4#
main71460-10440i198208-198304
FB,XL-L,BLACK
main71460-10441i198304-198409
FB,XL-L,IVORY
main71460-10450-02i198208-198409
FB,RED,RED/MAROON,TRIM1#
main71460-10450-09i198208-198409
FB,YELLOW,YELLOW,TRIM1#
main71460-10480-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71460-10480-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71460-10490-03i198208-198304
FB,GRAY,GRAY,TRIM1#
main71460-10490-06i198208-198304
FB,BROWN,BROWN,TRIM4#
main71460-10491-03i198304-198409
FB,GRAY,GRAY,TRIM1#
main71460-10491-06i198304-198409
FB,BROWN,BROWN,TRIM4#
main71460-10500i198208-198304
FB,XL-L,BLACK
main71460-10501i198304-198409
FB,XL-L,IVORY
main71460-10510-02i198208-198409
FB,RED,RED/MAROON,TRIM1#
main71460-10510-09i198208-198409
FB,YELLOW,YELLOW,TRIM1#
main71460-10520-02i198208-198409
FB,DARK WINE,RED/MAROON,TRIM3#
main71460-10520-03i198208-198409
FB,GRAY,GRAY,TRIM1#
main71460-10520-06i198208-198409
FB,BROWN,BROWN,TRIM4#
main71460-96440-01i197810-198005
VL,BLACK,BLACK,TRIM2#
main71460-96441-01i197810-198005
PF,BLACK,BLACK,TRIM2#
main71460-96441-04i197810-198005
PF,BLUE,BLUE,TRIM8#
main71460-96441-06i197810-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-96442-01i197810-198005
FB,BLACK,BLACK,TRIM2#
main71460-96442-04i197810-198005
FB,BLUE,BLUE,TRIM8#
main71460-96442-06i197810-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-96449-01i198005-198208
FB,BLACK,BLACK,TRIM2#
main71460-96449-06i198005-198208
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-96452-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71460-96453-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71460-96453-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-96457i198208-198409
PF,LIGHT GRAY
main71460-96458i198208-198409
FB,GRAY
main71460-96464i198208-198409
VL,LIGHT GRAY
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
main71480-10240-01i197802-197910
VL,BLACK,BLACK,TRIM2#
main71480-10241-01i197910-198005
VL,BLACK,BLACK,TRIM2#
main71480-10242-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71480-10250-01i197802-197910
PF,BLACK,BLACK,TRIM2#
main71480-10250-04i197802-197910
PF,BLUE,BLUE,TRIM8#
main71480-10250-06i197802-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-10251-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71480-10251-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71480-10251-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-10252-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71480-10252-04i198005-198108
PF,BLUE,BLUE,TRIM2#,4#,8#
main71480-10252-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM2#,4#
main71480-10320-01i197802-197910
PF,BLACK,BLACK,TRIM2#
main71480-10320-04i197802-197910
PF,BLUE,BLUE,TRIM8#
main71480-10320-06i197802-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-10321-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71480-10321-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71480-10321-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-10322-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71480-10322-04i198005-198108
PF,BLUE,BLUE,TRIM2#,4#,8#
main71480-10322-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-10510i198208-198409
VL,LIGHT GRAY
main71480-10520-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71480-10520-05i198208-198409
PF,BEIGE,BEIGE,TRIM1#,4#
main71480-10590-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71480-10590-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71480-96440-01i197810-198005
VL,BLACK,BLACK,TRIM2#
main71480-96441-01i197810-198005
PF,BLACK,BLACK,TRIM2#
main71480-96441-04i197810-198005
PF,BLUE,BLUE,TRIM8#
main71480-96441-06i197810-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-96442-01i197810-198005
FB,BLACK,BLACK,TRIM2#
main71480-96442-04i197810-198005
FB,BLUE,BLUE,TRIM8#
main71480-96442-06i197810-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-96449-01i198005-198208
FB,BLACK,BLACK,TRIM2#
main71480-96449-06i198005-198208
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-96452-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71480-96453-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71480-96453-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-96457i198208-198409
PF,LIGHT GRAY
main71480-96458i198208-198409
FB,GRAY
main71480-96464i198208-198409
VL,LIGHT GRAY
71812BCLIP(FOR REAR SEAT CUSHION COVER)
main71812-30010i197802-198409
sub90468-18008
72620LOCK ASSY, REAR SEATBACK
main72630-10020i197802-198005
RH
sub72630-10030
main72630-10030i198005-198409
RH
main72630-96440i197810-198005
RH
main72630-96442i198005-198409
RH
main72640-10010i197802-198005
LH
sub72640-10020
main72640-10020i198005-198409
LH
main72640-96440i197810-198005
LH
main72640-96442i198005-198409
LH
72693HOOK, REAR SEAT CUSHION LOCK
main72693-10020i197802-198005
sub72693-10021
main72693-10021i198005-198208
main72693-10030i198208-198409
72703STRIKER SUB-ASSY, REAR SEATBACK STOPPER
main72601-10020i197802-198409
RH
main72601-13030i197810-198409
RH
sub72601-21020
main72602-10010i197802-198409
LH
main72604-13030i197810-198409
LH
sub72602-21030
9015980127
main90159-80127

11 parts on this diagram · 8 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
