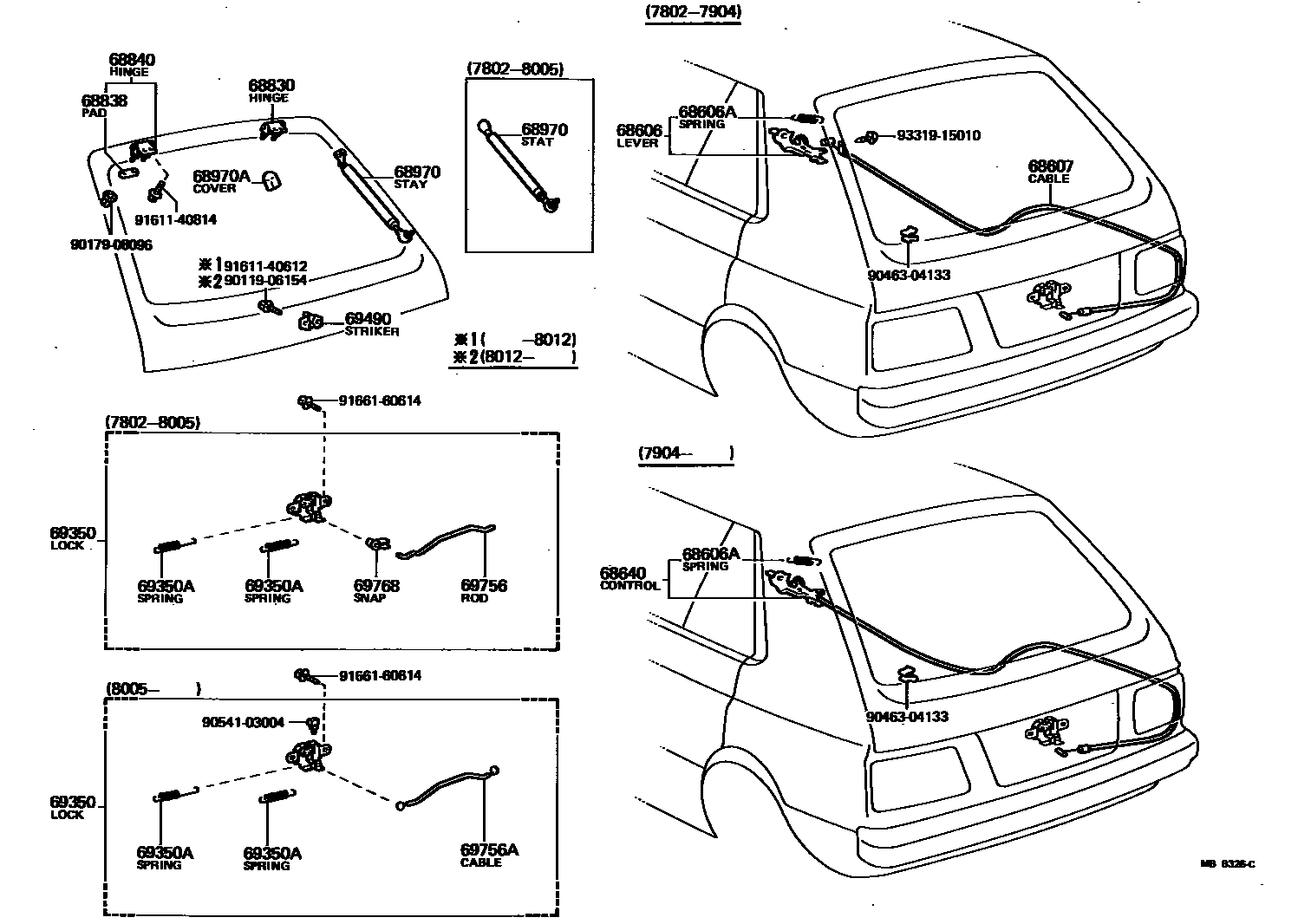

BACK DOOR LOCK & HANDLE

0001 1 0002 1 0003 1

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-10020iKP61..S,SE,XL197802-197904

main64606-10040iKP61..S,SE,SI198208-198409

W/FUEL LID OPENER

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90045-06162iKP61..S,SE,SI198208-198409

W/FUEL LID OPENER

main90506-09004iKP61..3D..4F..(DLX,DXA)198208-198409

W/O FUEL LID OPENER

main90506-09004iKP61..S,SE,XL197802-198208

main90506-09004iKP61..5D..DLX198301-198303

LISSE SPECIAL

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-10020iKP61..S,SE,XL197802-197904

main64607-10040iKP61..S,SE,SI198208-198409

W/FUEL LID OPENER

main64607-10050iKP61..5D..DLX198301-198303

LISSE SPECIAL

main64607-10050iKP61..3D..4F..(DLX,DXA)198208-198409

W/O FUEL LID OPENER

68640CONTROL ASSY, BACK DOOR LOCK

main64640-10021iKP61..S,SE,XL197904-198208

main64640-10050iKP61..5D..DLX198301-198303

LISSE SPECIAL

main64640-10050iKP61..3D..4F..(DLX,DXA)198208-198409

68830HINGE ASSY, BACK DOOR, RH

main68801-10010iKP61..SED197802-198208

main68801-10011iKP61..SED198208-198409

main68810-13070iKP6#..4D197911-198409

sub68810-13071

main68810-15030iKP62197810-197911

sub68810-15031

68838PAD, BACK DOOR HINGE, NO.1

main68838-14021iKP61..SED198207-198409

sub68838-14022

main68838-15010iKP6#..4D197810-198409

sub68838-15011

main68861-10010iKP61..SED197802-198207

68840HINGE ASSY, BACK DOOR, LH

main68801-10010iKP61..SED197802-198208

main68801-10011iKP61..SED198208-198409

main68810-13070iKP6#..4D197911-198409

sub68810-13071

main68810-15030iKP62197810-197911

sub68810-15031

68970STAY ASSY, BACK DOOR, RH

main68950-19035iKP61..S,SE,XL197802-198005

W/RR WIPER

main68950-19036iKP61..5D..DLX198005-198208

W/RR WIPER

main68950-19037iKP61..5D..DLX198208-198409

W/RR WIPER

main68950-19065iKP62197810-198005

W/O RR WIPER

main68950-19075iKP62..XL197810-198005

W/RR WIPER

main68950-19076iKP6#..4D198005-198409

W/O RR WIPER

main68950-19085iKP61..DLX,STD,XL197802-198005

W/O RR WIPER

main68950-19086iKP61..SED..(DLX,DXA,STD,XL)198005-198208

W/O RR WIPER

main68950-19087iKP61..SED..(DLX,DXA,STD,XL)198208-198409

W/O RR WIPER

main68950-19175iKP6#..4D..XL198005-198409

W/RR WIPER

68970ACOVER, BACK DOOR STAY

main68911-10010iKP61..SED198005-198409

69350LOCK ASSY, BACK DOOR

main69350-10010iKP61197802-198005

main69350-10011iKP61..SED198005-198208

main69350-10020iKP61..SED..(S,SE,SI,XL)198208-198209

W/OPENER

sub69350-10021

main69350-10021iKP61..5D..DLX198301-198303

LISSE SPECIAL

main69350-10021iKP61..3D..4F..(DLX,DXA)198209-198312

W/OPENER

main69350-10022iKP61..3D..4F..(DLX,DXA)198312-198409

W/OPENER

main69350-10030iKP61..SED..(DLX,DXA,STD)198208-198209

W/O OPENER

main69350-10031iKP61..SED..(DLX,DXA,STD)198209-198312

W/O OPENER

sub69350-10021

main69350-10032iKP61..SED..(DLX,DXA,STD)198312-198409

W/O OPENER

sub69350-10022

main69350-96440iKP62197810-198005

main69350-96441iKP6#..4D198005-198409

69350ASPRING(FOR BACK DOOR LOCK)

main90506-07001iKP61197802-198012

L=34

main90506-07003iKP61..SED198012-198208

L=34

main90506-08008iKP61197802-198012

L=26

main90506-08015iKP61..SED198012-198208

L=26

69490STRIKER ASSY, BACK DOOR LOCK

main69430-10010iKP61..SED197802-198208

main69430-10020iKP61..SED..(DLX,DXA,STD)198208-198409

W/O OPENER

sub69430-10030

main69430-10030iKP61..SED..(S,SE,SI,XL)198208-198409

W/OPENER

main69430-10030iKP61..5D..DLX198301-198303

LISSE SPECIAL

main69430-96440iKP6#..4D197810-198409

69756ROD, BACK DOOR LOCKING CONTROL PUSH

main69764-10020iKP61197802-198005

69756ACABLE, BACK DOOR LOCKING CONTROL

main64680-10010iKP61..SED198005-198208

69768SNAP, BACK DOOR LOCK CONTROL LINK

main69377-13010iKP6#..4D198005-198409

main69377-30020iKP62197810-198005

main69759-10020iKP61197802-198005

9011906154

main90119-06154

9017908096

main90179-08096

9046304133

main90463-04133

9054103004

main90541-03004

9161140612

main91611-40612

9161140814

main91611-40814

9166160614

main91661-60614

9331915010

main93319-15010

23 parts on this diagram · 3 diagrams in section
