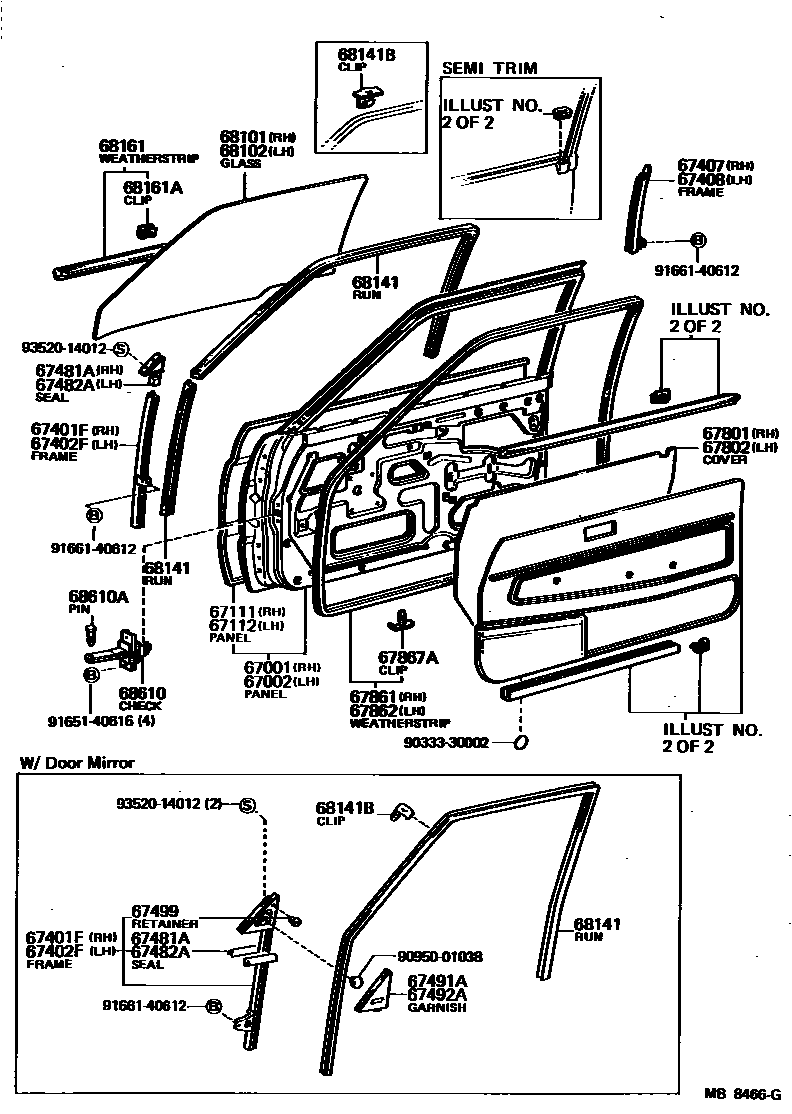

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-10110iKP61..3D197802-198002

sub67001-10111

main67001-10111iKP61..3D198002-198208

sub67001-10112

sub90333-30002

main67001-10130iKP6#..4D,5D197802-198208

sub67001-10131

sub90333-30002

main67001-10141iKP61..4D,5D198208-198409

sub67001-10191

main67001-10230iKP61..3D198208-198409

sub67001-10171

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-10110iKP61..3D197802-198002

sub67002-10111

main67002-10111iKP61..3D198002-198208

sub67002-10112

sub90333-30002

main67002-10130iKP6#..4D,5D197802-198208

sub67002-10131

sub90333-30002

main67002-10141iKP61..4D,5D198208-198409

sub67002-10191

main67002-10240iKP61..3D198208-198409

sub67002-10171

67111PANEL, FRONT DOOR, OUTER RH

main67111-10110iKP61..3D197802-198208

sub67111-10150

main67111-10130iKP6#..4D,5D197802-198208

sub67111-10170

main67111-10150iKP61..3D198208-198409

main67111-10170iKP61..4D,5D198208-198409

67112PANEL, FRONT DOOR, OUTER LH

main67112-10100iKP61..3D197802-198208

sub67112-10160

main67112-10130iKP6#..4D,5D197802-198208

sub67112-10170

main67112-10160iKP61..3D198208-198409

main67112-10170iKP61..4D,5D198208-198409

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-10090iKP6#197802-198409

main67401-10100iKP61..SED198305-198409

W/DOOR MIRROR

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-10090iKP6#197802-198409

main67402-10100iKP61..SED198305-198409

W/DOOR MIRROR

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-10010iKP61..3D197802-198409

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-10010iKP61..3D197802-198409

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-10020iKP6#197802-198409

main67481-10030iKP61..SED198305-198409

W/DOOR MIRROR

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67481-10020iKP6#197802-198409

main67481-10030iKP61..SED198305-198409

W/DOOR MIRROR

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-10020iKP61..SED198305-198409

W/DOOR MIRROR

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-10020iKP61..SED198305-198409

W/DOOR MIRROR

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010iKP61..SED198305-198409

W/DOOR MIRROR

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67831-10050iKP61..3D197802-198001

sub67831-10051

sub67832-10030

main67831-10051iKP61..3D198001-198208

sub67831-10052

main67831-10052iKP61..3D198208-198409

sub67831-10080

main67831-10060iKP6#..4D,5D197802-198409

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67831-10050iKP61..3D197802-198001

sub67831-10051

sub67832-10030

main67831-10060iKP6#..4D,5D197802-198409

main67832-10030iKP61..3D198001-198208

sub67832-10031

main67832-10031iKP61..3D198208-198409

sub67832-10040

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-10080iKP61..3D197802-198005

sub67861-10081

main67861-10081iKP61..3D198005-198409

main67861-10090iKP6#..4D,5D197802-198005

sub67861-10091

main67861-10091iKP6#..4D,5D198005-198409

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-10080iKP61..3D197802-198005

sub67862-10081

main67862-10081iKP61..3D198005-198409

main67862-10090iKP6#..4D,5D197802-198005

sub67862-10091

main67862-10091iKP6#..4D,5D198005-198409

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30040iKP6#197802-198409

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-10100iKP61..3D..(DLX,S,SE,XL)197802-198005

*TT,T=4.0

sub68111-10150

main68111-10110iKP61..STD197802-198005

*TEM,T=4.0

sub68111-10140

main68111-10120iKP6#..(4D,5D)..(DLX,S,SE,XL)197802-198005

*TT,T=4.0

sub68111-10160

main68111-10130iKP62..STD197810-198005

*TEM,T=4.0

sub68111-10170

main68111-10140iKP61..3D..STD198005-198409

W/O *DM,*TEM,T=3.5

sub68111-10150

main68111-10140iKP61..3D..XL..CBR198308-198409

SUPER,W/O *DM,*TEM,T=3.5

sub68111-10150

main68111-10140iKP61..4F..DXA198301-198409

SPECIAL,W/O *DM,*TEM,T=3.5

sub68111-10150

main68111-10150iKP61..3D..(DLX,DXA,S,SE,SI,XL)198005-198409

W/O *DM,*TT,T=3.5

main68111-10160iKP6#..(4D,5D)..(DLX,S,SE,SI,XL)198005-198409

W/O *DM,*TT,T=3.5

main68111-10170iKP61..5D..XL198308-198409

SUPER,W/O *DM,*TEM,T=3.5

sub68111-10160

main68111-10170iKP6#..4D..STD198005-198409

*TEM,T=3.5

sub68111-10160

main68111-10180iKP61..3D..STD198305-198409

SPECIAL,W/*DM,*TEM,T=3.5

sub68111-10210

main68111-10180iKP61..4F..DXA198305-198409

W/*DM,*TEM,T=3.5

sub68111-10210

main68111-10180iKP61..3D..XL..CBR198308-198409

SUPER,W/*DM,*TEM,T=3.5

sub68111-10210

main68111-10190iKP61..5D..XL198308-198409

SUPER,W/*DM,*TEM,T=3.5

sub68111-10200

main68111-10200iKP61..5D198305-198409

W/*DM,*TT,T=3.5

main68111-10210iKP61..3D..(DLX,DXA,S,SI,XL)198305-198409

W/*DM,*TT,T=3.5

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-10060iKP61..3D..(DLX,S,SE,XL)197802-198005

*TT,T=4.0

sub68112-10110

main68112-10070iKP61..STD197802-198005

*TEM,T=4.0

sub68112-10100

main68112-10080iKP6#..(4D,5D)..(DLX,S,SE,XL)197802-198005

*TT,T=4.0

sub68112-10120

main68112-10090iKP62..STD197810-198005

*TEM,T=4.0

sub68112-10130

main68112-10100iKP61..3D..STD198005-198409

W/O *DM,*TEM,T=3.5

sub68112-10110

main68112-10100iKP61..3D..XL..CBR198308-198409

SUPER,W/O *DM,*TEM,T=3.5

sub68112-10110

main68112-10100iKP61..4F..DXA198301-198409

SPECIAL,W/O *DM,*TEM,T=3.5

sub68112-10110

main68112-10110iKP61..3D..(DLX,DXA,S,SE,SI,XL)198005-198409

W/O *DM,*TT,T=3.5

main68112-10120iKP6#..(4D,5D)..(DLX,S,SE,SI,XL)198005-198409

W/O *DM,*TT,T=3.5

main68112-10130iKP61..5D..XL198308-198409

SUPER,W/O *DM,*TEM,T=3.5

sub68112-10120

main68112-10130iKP6#..4D..STD198005-198409

*TEM,T=3.5

sub68112-10120

main68112-10140iKP61..3D..STD198305-198409

W/*DM,*TEM,T=3.5

main68112-10140iKP61..3D..STD198305-198409

SPECIAL,W/*DM,*TEM,T=3.5

main68112-10140iKP61..3D..XL..CBR198308-198409

SUPER,W/*DM,*TEM,T=3.5

main68112-10150iKP61..5D..XL198308-198409

SUPER,W/*DM,*TEM,T=3.5

sub68112-10160

main68112-10160iKP61..5D198305-198409

W/*DM,*TT,T=3.5

main68112-10170iKP61..3D..(DLX,DXA,S,SI,XL)198305-198409

W/*DM,*TT,T=3.5

68141RUN, FRONT DOOR GLASS

main68141-10040iKP61..3D197802-198005

L=1958

main68141-10040iKP61..4F..DXA;KP61..3D..(DLX,S,SI,STD,XL)198208-198409

W/O *DM,COLD SPEC,L=1958

main68141-10050iKP61..5D198208-198409

W/O *DM,COLD SPEC,L=1616

sub68141-20031

main68141-10050iKP61..5D197802-198005

L=1616

sub68141-20031

main68141-10060iKP61..3D198005-198409

W/O *DM,L=1958

main68141-10070iKP6#..4D,5D198005-198409

W/O *DM,L=1615

main68141-10080iKP61..3D198305-198409

W/*DM,L=2338

main68141-10090iKP61..5D198305-198409

W/*DM,L=1995

main68141-10120iKP61..3D198305-198409

W/*DM,COLD SPEC,L=2338

main68141-10130iKP61..5D198305-198409

W/*DM,COLD SPEC,L=1995

main68141-96440iKP62197810-198005

L=1615

sub68141-10070

main68143-10010iKP61..4F..DXA;KP61..DLX,S,SE,SI,STD,XL198208-198409

W/O *DM,COLD SPEC,L=430

sub68143-14020

main68143-10010iKP61197802-198005

L=430

sub68143-14020

main68143-96440iKP6#198005-198409

W/O *DM,L=430

main68143-96440iKP62197810-198005

L=430

68141BCLIP, DOOR GLASS RUN

main62367-10010iKP61198208-198409

main62377-14020iKP6#198005-198208

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-10050iKP61..3D..(DLX,DXA,S,STD,XL)197802-198205

RH

main68160-10051iKP61..3D..(DLX,DXA,S,STD,XL)198205-198207

RH

main68160-10060iKP6#..4D197802-198205

RH

main68160-10061iKP61..5D..(DLX,S,XL)198205-198207

RH

main68160-10070iKP61..3D198305-198409

RH,W/DOOR MIRROR

main68160-10080iKP61..5D..(DLX,S,SI,XL)198305-198409

RH,W/DOOR MIRROR

main68160-10090iKP61..3D..(DLX,DXA,S,SI,STD,XL)198207-198409

RH,W/O DOOR MIRROR

main68160-10100iKP61..5D..(DLX,S,SI,XL)198207-198409

RH

main68160-10100iKP61..4D198207-198409

RH,W/O DOOR MIRROR

main68210-10030iKP61..3D..(DLX,DXA,S,STD,XL)197802-198205

LH

main68210-10031iKP61..3D..(DLX,DXA,S,STD,XL)198205-198207

LH

main68210-10040iKP61..5D..(DLX,S,XL)197802-198205

LH

main68210-10041iKP61..5D..(DLX,S,XL)198205-198207

LH

main68210-10050iKP61..3D198305-198409

LH,W/DOOR MIRROR

main68210-10060iKP61..5D..(DLX,S,SI,XL)198305-198409

LH,W/DOOR MIRROR

main68210-10070iKP61..3D..(DLX,DXA,S,SI,STD,XL)198207-198409

LH,W/O DOOR MIRROR

main68210-10080iKP61..5D..(DLX,S,SI,XL)198207-198409

LH,W/O DOOR MIRROR

main68210-10080iKP61..4D198207-198409

LH

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-10030iKP61..5D..(DLX,S,XL)197802-198207

main68211-12080iKP61..4D198301-198409

main68211-14100iKP61..3D198207-198301

68610CHECK ASSY, FRONT DOOR

main68610-10010iKP6#197802-198409

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010iKP61198405-198409

sub68617-90A00

main68617-22010iKP6#197802-198405

sub68617-12010

9033330002

main90333-30002

9095001038

main90950-01038

9165140616

main91651-40616

9166140612

main91661-40612

9352014012

main93520-14012

31 parts on this diagram · 2 diagrams in section
