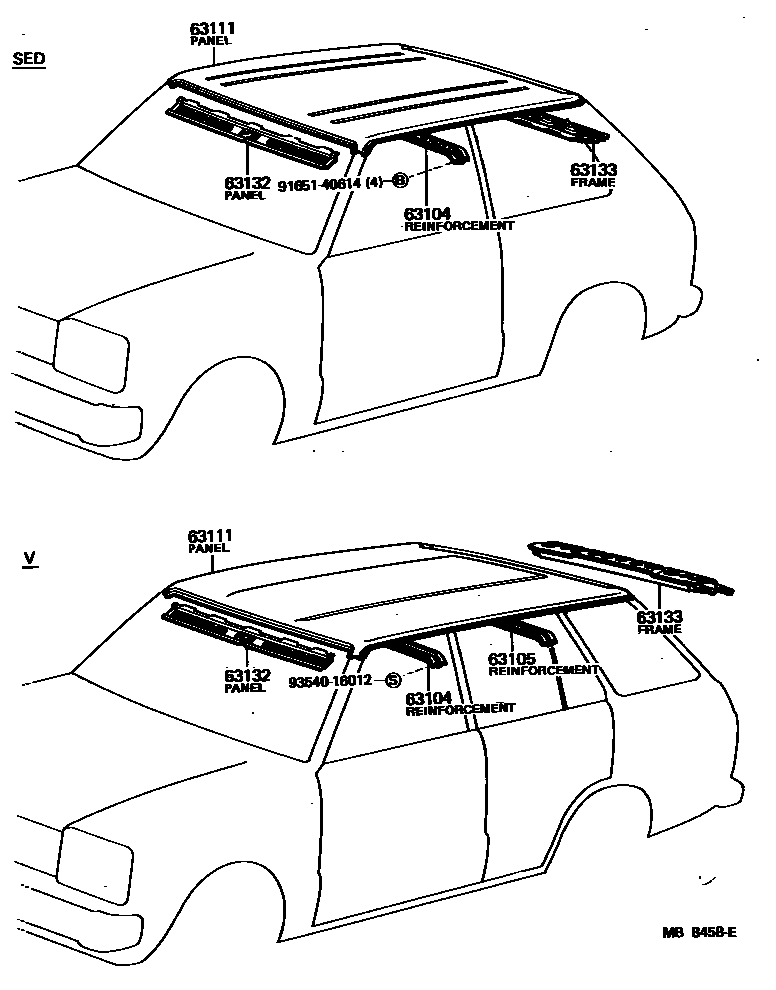

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-10040iKP61197802-198409

main63141-96440iKP6#..4D197810-198409

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63141-96440iKP6#..4D197810-198409

63111PANEL, ROOF

main63111-10050iKP61197802-198409

main63111-10060iKP61..S,SE,SI198005-198409

W/REMOVABLE ROOF

main63111-96440iKP6#..4D197810-198409

63132PANEL, WINDSHIELD HEADER, INNER

main63132-10070iKP6#197802-198409

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-10020iKP61..5D..DLX198208-198409

W/RR WINDOW WIPER

main63105-10020iKP61..SED..(S,SE,XL)197802-198208

W/RR WINDOW WIPER,DEFOGGER

main63105-10030iKP61..SED..(DLX,DXA,STD)197802-198208

main63105-10040iKP61..4F..DXA;KP61..SED..(DLX,XL)197802-198208

W/RR WINDOW DEFOGGER

main63105-10040iKP61..SED..(DLX,DXA,STD,XL)198208-198409

W/O RR WINDOW WIPER

main63105-96440iKP6#..4D197810-198409

9165140614

main91651-40614

9354016012

main93540-16012

7 parts on this diagram · 2 diagrams in section
