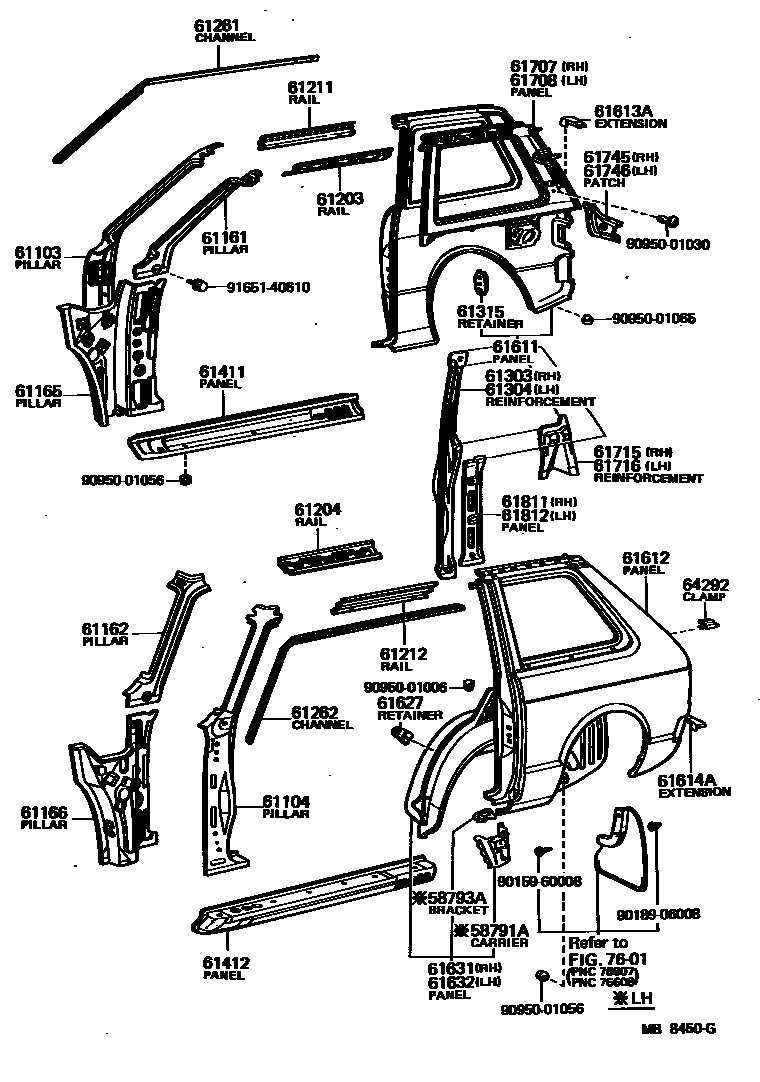

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

58791ACARRIER, JACK

main58791-10020iKP61..SED197802-198409

58793ABRACKET, JACK CARRIER

main58793-10020iKP61..SED197802-198409

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61027-10010iKP6#197802-198208

sub61027-10011

main61027-10011iKP61198208-198409

sub61027-10040

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61028-10010iKP6#197802-198208

sub61028-10011

main61028-10011iKP61198208-198409

61161PILLAR, FRONT BODY, UPPER INNER RH

main61021-10020iKP61198208-198409

main61161-10040iKP6#197802-198208

61162PILLAR, FRONT BODY, UPPER INNER LH

main61022-10010iKP61198208-198409

main61162-10040iKP6#197802-198208

61165PILLAR, FRONT BODY LOWER INNER, RH

main61023-10010iKP61197802-198005

main61023-10011iKP61198005-198108

sub61023-10010

main61023-10012iKP61..SED198108-198208

sub61023-10010

main61023-10013iKP61..4D198306-198409

W/O RR WIPER

main61023-10013iKP61..SED198208-198409

main61023-10022iKP61..4D198208-198306

W/O RR WIPER

sub61023-10013

main61023-10080iKP61..4D..XL198208-198409

W/RR WIPER

main61023-96440iKP6#..4D197908-198208

61166PILLAR, FRONT BODY LOWER INNER, LH

main61024-10010iKP61197802-198005

main61024-10011iKP61..SED198005-198208

main61024-10012iKP61..SED..CBR198208-198409

main61024-10070iKP61..EFI198208-198409

main61024-96440iKP6#..4D197908-198208

main61024-96445iKP61..4D198208-198409

sub61024-10012

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61231-10040iKP61..3D197802-198409

main61231-10050iKP61..5D197802-198003

sub61231-10051

main61231-10051iKP61..5D198003-198409

main61231-96440iKP6#..4D197810-198409

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61231-10040iKP61..3D197802-198001

main61232-10040iKP61..5D197802-198003

sub61232-10041

main61232-10041iKP61..5D198003-198409

main61232-10050iKP61..3D198001-198409

main61232-96440iKP6#..4D197810-198409

61211RAIL, ROOF SIDE, OUTER RH

main61211-10040iKP61..3D197802-198409

main61211-10050iKP61..5D197802-198409

main61211-96440iKP6#..4D197810-198409

61212RAIL, ROOF SIDE, OUTER LH

main61211-10040iKP61..3D197802-198409

main61212-10040iKP61..5D197802-198409

main61212-96440iKP6#..4D197810-198409

61261CHANNEL, ROOF DRIP, RH

main61261-10040iKP61..SED197802-198409

main61261-96440iKP6#..4D197810-198409

61262CHANNEL, ROOF DRIP, LH

main61262-10040iKP61..SED197802-198409

main61262-96440iKP6#..4D197810-198409

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-10040iKP61..3D197802-198005

main61303-10041iKP61..3D198005-198108

sub61303-10042

main61303-10042iKP61..3D198108-198409

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-10030iKP61..3D197802-198005

main61304-10031iKP61..3D198005-198108

sub61304-10032

main61304-10032iKP61..3D198108-198409

61315RETAINER, DOOR LOCK STRIKER PLATE

main61309-10030iKP6#197802-198409

61411PANEL, ROCKER, OUTER RH

main61401-10010iKP61..3D197903-198409

W/*ELR

main61411-10100iKP61..3D197802-198005

main61411-10110iKP6#..4D,5D197802-198409

61412PANEL, ROCKER, OUTER LH

main61402-10010iKP61..3D197903-198409

W/*ELR

main61412-10100iKP61..3D197802-198005

main61412-10110iKP6#..4D,5D197802-198409

61611PANEL, QUARTER, RH

main61601-10060iKP61..STD197802-198005

sub61601-10111

sub77292-10030

sub77371-10020

main61601-10071iKP61..3D..(DLX,DXA,S,XL)198005-198010

sub61601-10072

sub84231-20060

sub84232-10030

main61601-10072iKP61..3D..(DLX,DXA,S,XL)198010-198208

sub61601-10550

main61601-10100iKP61..3D..(DLX,S,SE,XL)197802-198005

sub61601-10072

sub77292-10030

sub77371-10020

sub84231-20060

sub84232-10020

main61601-10111iKP61..3D..STD198005-198208

main61601-10410iKP61..3D..(S,SE,XL)198005-198010

W/*UB

sub61601-10907

sub84231-20060

sub84232-10030

main61601-10902iKP61..5D197802-198005

sub61601-10904

sub77292-10030

sub77371-10020

main61601-10903iKP61..5D..(S,SE,XL)198005-198208

W/*UB

main61601-10904iKP61..5D..(DLX,S,XL)198005-198208

sub61601-10908

main61601-10905iKP6#..4D198005-198208

main61601-10907iKP61..3D..(S,SE,XL)198010-198208

W/*UB

main61601-10910iKP61..3D..STD198208-198409

main61601-10911iKP61..3D..(DLX,DXA,S,SI,XL)198208-198409

W/O FUEL LID OPENER,*UB

main61601-10912iKP61..3D..XL..CBR198308-198409

SUPER

sub61601-10927

sub61726-10052

main61601-10912iKP61..3D..(S,SI)198301-198409

W/*UB,W/O FUEL LID OPENER

sub61601-10927

sub61726-10052

main61601-10912iKP61..3D..XL..CBR198304-198409

XL-L

sub61601-10927

sub61726-10052

main61601-10915iKP61..5D..(DLX,S,SI,XL)198208-198409

W/O FUEL LID OPENER,*UB

main61601-10917iKP61..5D..XL198308-198409

SUPER

main61601-10917iKP61..5D..XL198304-198409

XL-L

main61601-10917iKP61..5D..(S,SI)198301-198409

W/*UB,W/O FUEL LID OPENER

main61601-10920iKP61..5D..(S,SE,SI)198208-198409

W/FUEL LID OPENER,W/O *UB

main61601-10925iKP61..3D..(S,SI)198208-198409

W/FUEL LID OPENER,W/O *UB

sub61601-10927

main61601-10927iKP61..3D..(S,SI)198301-198409

W/*UB,FUEL LID OPENER

main61601-10929iKP61..5D..(S,SI)198301-198409

W/*UB,FUEL LID OPENER

main61601-96900iKP62197810-198005

main61601-96901iKP61..4D198208-198409

61612PANEL, QUARTER, LH

main61602-10061iKP61..3D..(DLX,DXA,S,XL)198005-198010

sub61602-10062

sub84231-20060

sub84232-10030

main61602-10062iKP61..3D..(DLX,DXA,S,XL)198010-198208

sub61602-10550

main61602-10090iKP61..3D..(DLX,S,SE,XL)197802-198005

sub61602-10062

sub84231-20060

sub84232-10020

main61602-10101iKP61..3D..STD198005-198208

main61602-10250iKP61..STD197802-198005

sub61602-10101

main61602-10410iKP61..3D..(S,SE,XL)198005-198010

W/*UB

sub61602-10908

sub84231-20060

sub84232-10030

main61602-10903iKP61..5D197802-198005

sub61602-10905

main61602-10904iKP61..5D..(S,SE,XL)198005-198208

W/*UB

main61602-10905iKP61..5D..(DLX,S,XL)198005-198208

sub61602-10909

main61602-10906iKP6#..4D198005-198208

main61602-10908iKP61..3D..(S,SE,XL)198010-198208

W/*UB

main61602-10910iKP61..3D..STD198208-198409

main61602-10911iKP61..3D..(DLX,DXA,S,SI,XL)198208-198409

main61602-10912iKP61..3D..(S,SI)198301-198409

W/*UB

main61602-10912iKP61..3D..XL..CBR198308-198409

SUPER

main61602-10912iKP61..3D..XL..CBR198304-198409

XL-L

main61602-10915iKP61..5D198208-198409

main61602-10917iKP61..5D..XL198304-198409

XL-L

main61602-10917iKP61..5D..(S,SI)198301-198409

W/*UB

main61602-10917iKP61..5D..XL198308-198409

SUPER

main61602-96900iKP62197810-198005

sub61602-10906

main61602-96901iKP61..4D198208-198409

61613AEXTENSION, QUARTER PANEL REAR, RH

main61625-10010iKP61..DLX,STD,XL197802-198005

main61625-10010iKP61..SED..(DLX,DXA,STD)198005-198208

W/SMALL TYPE BUMPER

61614AEXTENSION, QUARTER PANEL, REAR LH

main61626-10010iKP61..DLX,STD,XL197802-198005

main61626-10010iKP61..SED..(DLX,DXA,STD)198005-198208

W/SMALL TYPE BUMPER

61627RETAINER, QUARTER TRIM, LOWER

main61751-10060iKP61..3D197802-198409

61631PANEL, QUARTER WHEEL HOUSE, RH

main61603-96440iKP6#..4D..05S197810-198409

main61603-96441iKP61..02S198201-198409

main61607-10900iKP61197802-198005

main61607-10901iKP61..SED198005-198208

main61617-10900iKP61..SED198208-198409

W/O REMOVABLE ROOF

sub61617-10902

main61617-10901iKP61..S,SE,SI198208-198409

W/REMOVABLE ROOF

sub61617-10900

61632PANEL, QUARTER WHEEL HOUSE, LH

main61604-96440iKP6#..4D..05S197810-198409

main61604-96441iKP61..02S198201-198409

main61608-10900iKP61..SED198005-198208

main61608-10908iKP61197802-198005

main61618-10900iKP61..SED198208-198409

W/O REMOVABLE ROOF

sub61618-10902

main61618-10901iKP61..S,SE,SI198208-198409

W/REMOVABLE ROOF

sub61618-10902

61707PANEL SUB-ASSY, QUARTER, INNER RH

main61703-10900iKP61..3D198208-198409

main61703-10906iKP61..5D198208-198409

main61731-10900iKP61..3D..(DLX,S,STD,XL)197802-198005

sub61731-10918

sub91651-40614

main61731-10901iKP61..3D..(DLX,S,SE,XL)197802-198005

W/PACKAGE TRAY

sub61731-10919

sub91651-40614

main61731-10904iKP61..5D..(DLX,S,XL)197802-198005

main61731-10905iKP61..5D197802-198005

W/PACKAGE TRAY

main61731-10913iKP61..3D..(DXA,STD)198005-198208

sub61731-10906

main61731-10915iKP61..3D..(DLX,S,SE,XL)198005-198208

main61731-10917iKP61..5D198005-198208

61708PANEL SUB-ASSY, QUARTER, INNER LH

main61704-10900iKP61..3D198208-198409

main61704-10906iKP61..5D198208-198409

main61732-10900iKP61..3D..(DLX,S,STD,XL)197802-198005

sub61732-10918

sub91651-40614

main61732-10901iKP61..3D..(DLX,S,SE,XL)197802-198005

W/PACKAGE TRAY

sub61732-10919

sub91651-40614

main61732-10904iKP61..5D..(DLX,S,XL)197802-198005

main61732-10905iKP61..5D197802-198005

W/PACKAGE TRAY

main61732-10913iKP61..3D..(DXA,STD)198005-198208

main61732-10915iKP61..3D..(DLX,S,SE,XL)198005-198208

sub61732-10910

main61732-10917iKP61..5D198005-198208

61715REINFORCEMENT, ROOF SIDE, INNER REAR RH

main61737-10020iKP61..3D197802-198208

sub61737-10021

main61737-10021iKP61..3D198208-198409

sub61737-10900

main61737-10030iKP61..5D197802-198208

main61737-10031iKP61..5D198208-198409

61716REINFORCEMENT, ROOF SIDE, INNER REAR LH

main61738-10010iKP61..3D197802-198208

sub61738-10011

main61738-10011iKP61..3D198208-198409

sub61738-10900

main61738-10020iKP61..5D197802-198208

main61738-10021iKP61..5D198208-198409

61745PATCH, BACK DOOR OPENING, LOWER RH

main61745-10010iKP61..SED197802-198208

main61745-10011iKP61..SED198208-198409

61746PATCH, BACK DOOR OPENING, LOWER LH

main61746-10010iKP61..SED197802-198208

main61746-10011iKP61..SED198208-198409

61811PANEL, QUARTER INSIDE, FRONT RH

main61613-10010iKP61..3D197802-198409

61812PANEL, QUARTER INSIDE, FRONT LH

main61614-10010iKP61..3D197802-198409

64292CLAMP, JACK HANDLE

main64292-10020iKP61197802-197903

7601

9015960008

main90159-60008

9018906008

main90189-06008

9095001006

main90950-01006

9095001030

main90950-01030

9095001056

main90950-01056

9095001065

main90950-01065

9165140610

main91651-40610

43 parts on this diagram · 9 diagrams in section
