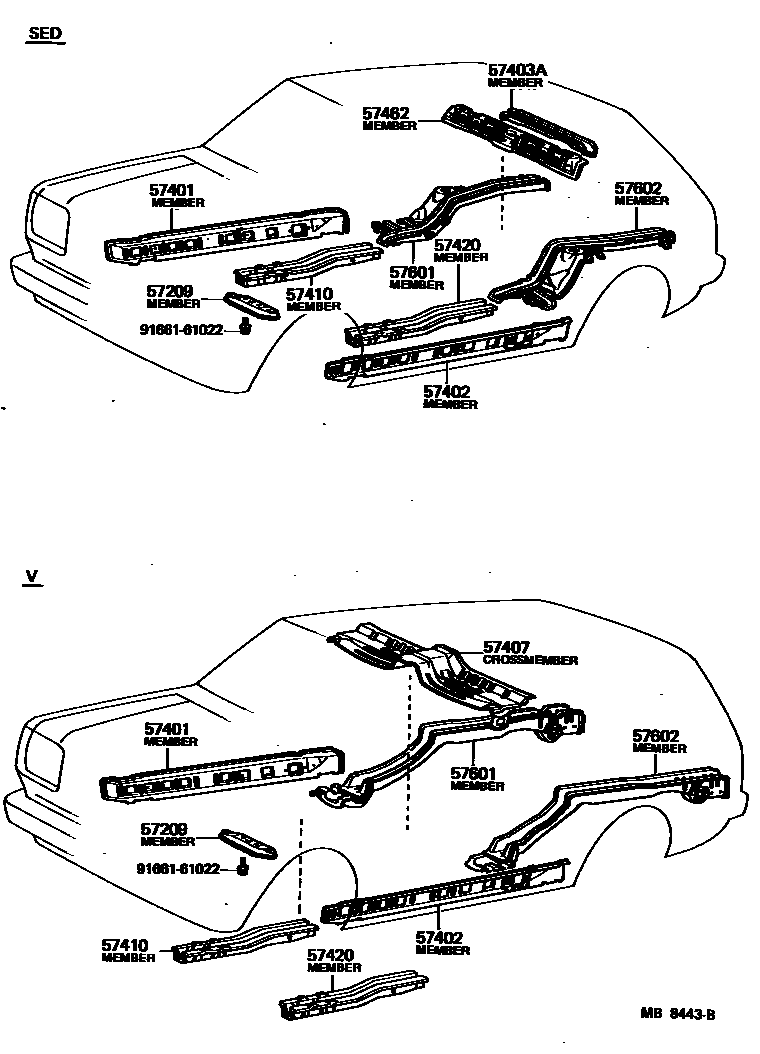

FLOOR SIDE MEMBER

0001 1 0002 1

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-10040iKP6#..MTM¥3,210198108-198409

main57209-10050iKP61..3FC¥4,430198108-198409

main57255-10030iKP6#197802-198108

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-10040iKP61..3D197802-198005

main57401-10050iKP61..3D198005-198208

main57401-10050iKP61..3D197903-198005

*ELR

main57401-10060iKP6#..4D,5D197802-198208

main57401-10061iKP61..4D,5D198208-198409

main57401-10080iKP61..3D198208-198409

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-10040iKP61..3D197802-198005

main57402-10050iKP61..3D197903-198005

*ELR

main57402-10050iKP61..3D198005-198208

main57402-10060iKP6#..4D,5D197802-198208

main57402-10061iKP61..4D,5D198208-198409

main57402-10080iKP61..3D198208-198409

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57403-10020iKP61197802-198005

main57403-10021iKP61..SED¥5,500198005-198208

sub57403-10050

main57403-10050iKP61..SED198208-198409

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-96440iKP62197810-198005

main57407-96441iKP6#..4D198005-198409

57410MEMBER ASSY, FLOOR SIDE, RH

main57417-10020iKP6#¥3,140197802-198306

sub57417-10030¥3,140

main57417-10030iKP61¥3,140198306-198409

57420MEMBER ASSY, FLOOR SIDE, LH

main57418-10010iKP62¥3,140197810-198201

sub57418-10020¥4,230

main57506-10030iKP61197802-198108

main57506-10031iKP61¥6,800198108-198306

sub57506-10041

main57506-10041iKP61198306-198409

57462MEMBER, CENTER FLOOR CROSS, NO.2

main57462-10020iKP61..SED197802-198409

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-10020iKP61197802-198005

main57601-10021iKP61..SED¥25,100198005-198208

main57601-10021iKP61..S,SI¥25,100198301-198409

W/URETHANE BUMPER

main57601-10021iKP61..SED..XL..CBR¥25,100198308-198409

SUPER

main57601-10021iKP61..SED¥25,100198208-198209

PLANT NO.K21

main57601-10021iKP61..SED..XL..CBR¥25,100198304-198409

XL-L,W/URETHANE BUMPER

main57601-10022iKP61..SED198209-198409

main57601-10022iKP61..SED198208-198209

PLANT NO.B11

main57601-96440iKP62197810-198005

main57601-96441iKP6#..4D198005-198409

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-10030iKP61197802-198005

main57602-10031iKP61..SED..XL..CBR198304-198409

XL-L,W/URETHANE BUMPER

main57602-10031iKP61..SED198005-198208

main57602-10031iKP61..SED198208-198209

PLANT NO.K21

main57602-10031iKP61..S,SI198301-198409

W/URETHANE BUMPER

main57602-10031iKP61..SED..XL..CBR198308-198409

SUPER

main57602-10032iKP61..SED198208-198209

PLANT NO.B11

main57602-10032iKP61..SED198209-198409

main57602-96440iKP6#..4D197810-198409

9166161022

main91661-61022¥180

11 parts on this diagram · 2 diagrams in section
