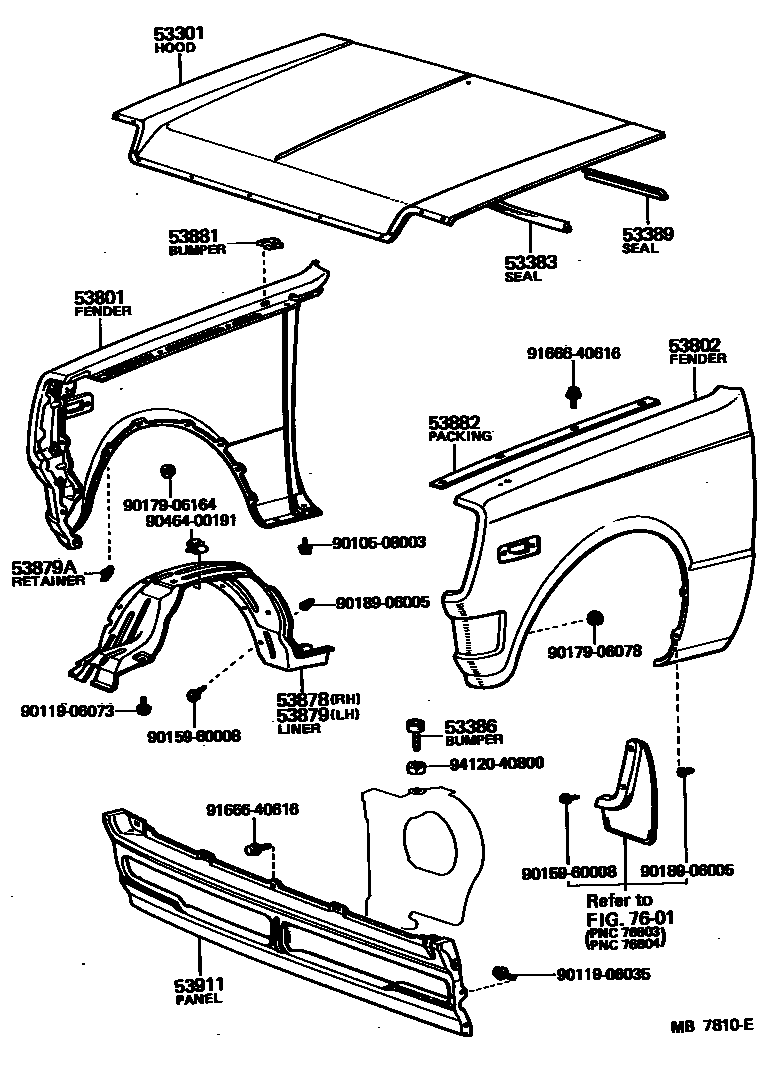

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53301HOOD SUB-ASSY

main53301-10150iKP6#197802-198005

sub53301-10154

main53301-10151iKP6#198005-198208

sub53301-10153

main53301-10152iKP61198208-198409

sub53301-10191

53383SEAL, HOOD TO COWL TOP

main53383-10011iKP6#197802-198409

53386BUMPER, HOOD, REAR

main53382-12040iKP6#198110-198409

main53382-20011iKP6#197802-198110

sub53382-90A00

53389SEAL, HOOD TO COWL TOP SIDE

main53389-10011iKP6#197802-198208

main53389-10020iKP61198208-198409

53801FENDER SUB-ASSY, FRONT RH

main53801-10270iKP6#197802-198005

main53801-10271iKP6#..4D198005-198208

W/SMALL TYPE BUMPER

main53801-10272iKP61198208-198409

W/FENDER MIRROR HOLE

main53801-10292iKP61..SED198305-198409

W/O FENDER MIRROR HOLE

main53801-10330iKP61..SED..(DLX,DXA,S,SE,XL)198005-198208

W/BIG TYPE OR URETHANE BUMPER

53802FENDER SUB-ASSY, FRONT LH

main53802-10320iKP6#197802-198005

main53802-10321iKP61..SED..(DLX,DXA,STD)198005-198208

W/SMALL TYPE BUMPER

main53802-10323iKP61198208-198409

W/FENDER MIRROR HOLE

main53802-10342iKP61..SED198305-198409

W/O FENDER MIRROR HOLE

main53802-10380iKP61..SED..(DLX,DXA,S,SE,XL)198005-198208

W/BIG TYPE OR URETHANE BUMPER

53878LINER, FRONT FENDER, RH

main53875-10010iKP6#197802-198005

main53875-10011iKP6#198005-198409

53879LINER, FRONT FENDER, LH

main53876-10010iKP6#197802-198005

main53876-10011iKP6#198005-198409

53879ARETAINER, FRONT FENDER LINER

main53879-10010iKP6#197802-198409

sub53879-22010

53881BUMPER, FENDER TO HOOD

main53384-10040iKP6#197904-198409

main53384-10040iKP6#197802-197904

RH

main53387-10010iKP6#197802-197904

LH

sub53384-10040

53882PACKING, FRONT FENDER MAIN

main53882-10040iKP6#197802-198005

main53882-10041iKP6#198005-198208

main53882-10042iKP61198208-198409

53911PANEL, FRONT VALANCE

main53901-10020iKP6#197802-198005

main53901-10050iKP61..SED..(DLX,DXA,STD)198005-198208

UPR,W/SMALL TYPE BUMPER

sub53901-10070

main53901-10060iKP61..SED..(DLX,DXA,S,SE,XL)198005-198208

UPR,W/BIG OR URETHANE BUMPER

sub53901-10080

main53901-96440iKP6#..4D198005-198208

UPR

main53902-10010iKP6#..4D198005-198208

LWR

sub53902-10030

main53902-10010iKP6#..4D198005-198208

LWR,W/SMALL TYPE BUMPER

sub53902-10030

main53902-10020iKP61..SED..(DLX,DXA,S,SE,XL)198005-198208

LWR,W/BIG OR URETHANE BUMPER

sub53902-10040

main53902-10031iKP61198208-198409

7601

9010508003

main90105-08003

9011906035

main90119-06035

9011906073

main90119-06073

9015960008

main90159-60008

9017906078

main90179-06078

9017906164

main90179-06164

9018906005

main90189-06005

9046400191

main90464-00191

9166640616

main91666-40616

9412040800

main94120-40800

23 parts on this diagram · 3 diagrams in section
