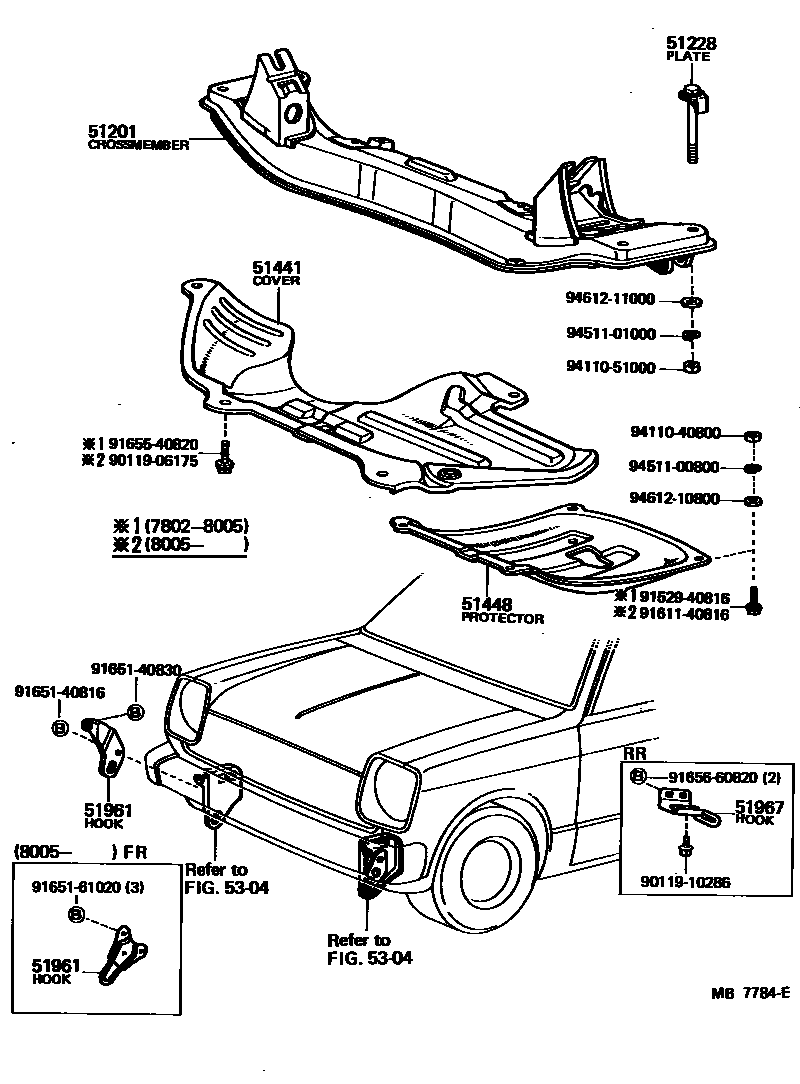

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-10040iKP6#197802-198005

sub51201-10100

sub91666-40620

main51201-10060iKP6#198005-198409

51228PLATE, SUSPENSION MEMBER SET

main51229-10010iKP61197802-197804

sub51229-10020

main51229-10020iKP6#197804-198409

51441COVER, ENGINE UNDER, NO.1

main51405-10010iKP6#197802-198005

main51441-10060iKP6#198005-198409

51448PROTECTOR, OIL PAN

main51447-10030iKP61197802-198005

sub51447-10031

main51447-10031iKP6#198005-198409

51961HOOK, NO.1

main51093-10010iKP6#198005-198409

main51961-10010iKP61197802-198005

51967HOOK, TRANSPORT, REAR

main51095-10010iKP61..SED198208-198209

RH,PLANT NO.B11

main51095-10010iKP61..SED198209-198409

RH

main51096-10010iKP61..SED198208-198209

LH,PLANT NO.B11

main51096-10010iKP61..SED198209-198409

LH

5304

9011906175

main90119-06175

9011910286

main90119-10286

9152940816

main91529-40816

9161140816

main91611-40816

9165140816

main91651-40816

9165140830

main91651-40830

9165161020

main91651-61020

9165540820

main91655-40820

9165660820

main91656-60820

9411040800

main94110-40800

9411051000

main94110-51000

9451100800

main94511-00800

9451101000

main94511-01000

9461210800

main94612-10800

9461211000

main94612-11000

22 parts on this diagram · 1 diagram in section
