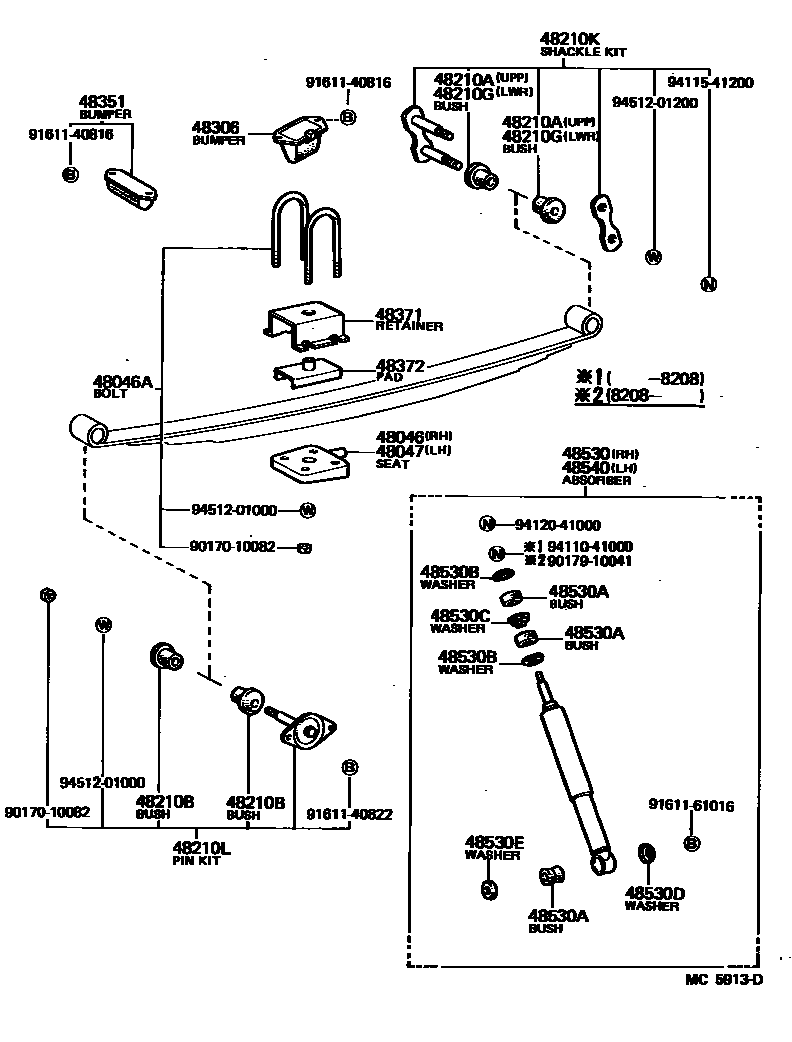

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-11040iKP6#..4D197810-198409

48046ABOLT, U(FOR REAR SPRING)

main90118-10138iKP6#..4D197810-198409

sub90118-10129

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-11040iKP6#..4D197810-198409

48210SPRING ASSY, REAR RH

main48210-11090iKP62197810-198005

main48210-11110iKP6#..4D198005-198409

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-15070iKP6#..4D197810-198409

48210BBUSH(FOR REAR SPRING PIN)

main90385-13002iKP6#..4D197810-198409

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-15070iKP6#..4D197810-198409

48210KSHACKLE KIT, REAR SPRING

main04483-21010iKP6#..4D197810-198409

48210LPIN KIT, REAR SPRING

main04484-12050iKP6#..4D197810-198409

48306BUMPER SUB-ASSY, REAR SPRING

main48341-10050iKP61..SED197802-198409

main48341-11040iKP6#..4D197810-198409

48351BUMPER, DIFFERENTIAL CARRIER

main48351-29015iKP6#..4D197810-198409

sub48351-20020

48371RETAINER, REAR SPRING PAD

main48371-13010iKP6#..4D197810-198409

48372PAD, REAR SPRING

main48372-11010iKP6#..4D197810-198409

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-19495iKP61..DLX,SE,STD,XL197802-198005

sub48531-19496

main48531-19505iKP61..S197802-198005

sub48531-19506

main48531-19555iKP6#..4D197810-198409

sub48531-19556

main48531-19675iKP61..DLX,DXA,SE,STD,XL198005-198008

sub48531-19676

main48531-19676iKP61..SED..(DLX,DXA,SE,STD,XL)198008-198205

sub48531-19677

main48531-19677iKP61..SED..(DLX,DXA,SE,STD,XL)198205-198208

sub48531-19678

main48531-19678iKP61..SED..(DLX,DXA,SE,STD,XL)198208-198409

sub48531-19698

main48531-19685iKP61..S198005-198008

sub48531-19686

main48531-19686iKP61..S198008-198205

sub48531-19687

main48531-19687iKP61..S198205-198208

sub48531-19688

main48531-19688iKP61..S,SI198208-198409

sub48531-19689

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001iKP6#198005-198409

ABSORBER X RR AXLE HOUSING

main90385-16060iKP6#197802-198005

ABSORBER X RR AXLE HOUSING

main90948-01002iKP6#..4D197810-198409

ABSORBER X BODY

main90948-01003iKP61..SED197802-198202

ABSORBER X BODY

main90948-01022iKP61..SED198202-198409

ABSORBER X BODY

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002iKP61..SED197802-198409

main90948-02004iKP6#..4D197810-198208

main90948-02067iKP61..4D198208-198409

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02005iKP6#..4D197810-198409

main90948-02007iKP61..SED197802-198409

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03007iKP61..SED198005-198409

OD=34

main90948-03007iKP61197802-198005

main90948-03012iKP6#..4D197810-198409

main90948-03016iKP61..SED198005-198409

OD=35

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iKP6#197802-198409

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-19495iKP61..DLX,SE,STD,XL197802-198005

sub48531-19496

main48531-19505iKP61..S197802-198005

sub48531-19506

main48531-19555iKP6#..4D197810-198409

sub48531-19556

main48531-19675iKP61..DLX,DXA,SE,STD,XL198005-198008

sub48531-19676

main48531-19676iKP61..SED..(DLX,DXA,SE,STD,XL)198008-198205

sub48531-19677

main48531-19677iKP61..SED..(DLX,DXA,SE,STD,XL)198205-198208

sub48531-19678

main48531-19678iKP61..SED..(DLX,DXA,SE,STD,XL)198208-198409

sub48531-19698

main48531-19685iKP61..S198005-198008

sub48531-19686

main48531-19686iKP61..S198008-198205

sub48531-19687

main48531-19687iKP61..S198205-198208

sub48531-19688

main48531-19688iKP61..S,SI198208-198409

sub48531-19689

9017010082

main90170-10082

9017910041

main90179-10041

9161140816

main91611-40816

9161140822

main91611-40822

9161161016

main91611-61016

9411041000

main94110-41000

9411541200

main94115-41200

9412041000

main94120-41000

9451201000

main94512-01000

9451201200

main94512-01200

30 parts on this diagram · 3 diagrams in section
