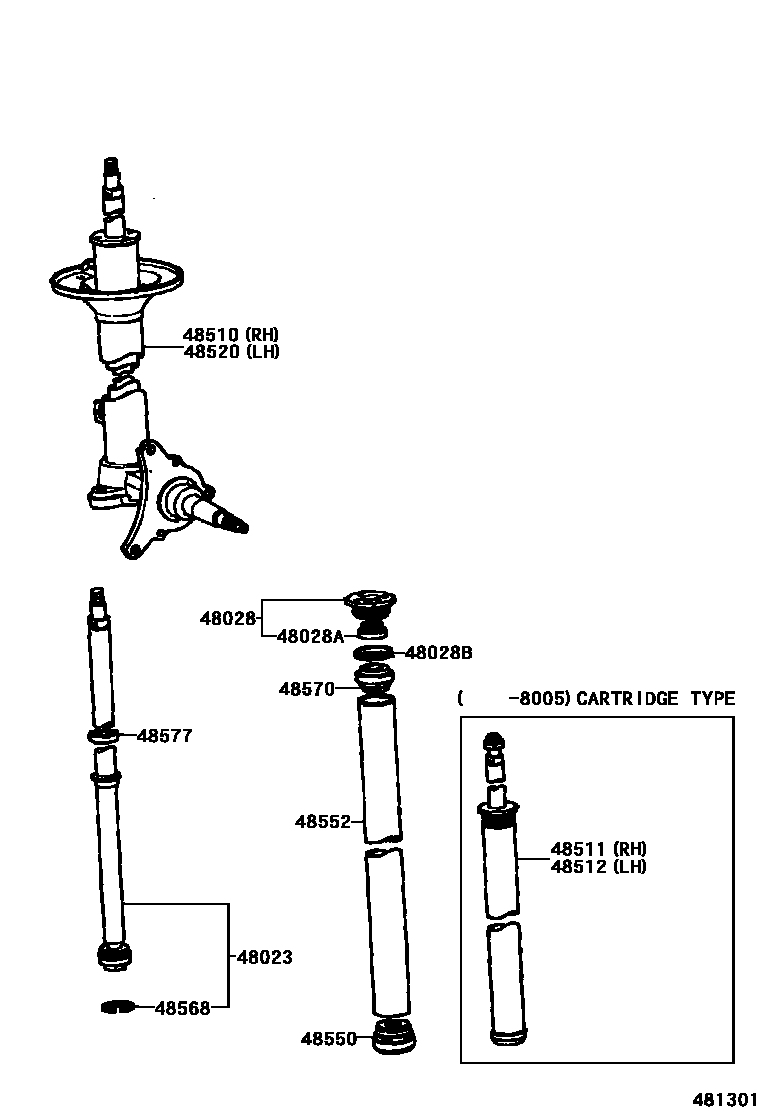

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-10060iKP6#..DLX,SE,STD,XL197802-198005

main48023-10070iKP61..S197802-198005

main48023-10080iKP6#..DLX,DXA,SE,STD,XL¥9,200198005-198208

main48023-10090iKP61..S198005-198208

main48023-10100iKP61..DLX,DXA,SE,STD,XL¥9,200198208-198409

main48023-10110iKP61..S,SI¥9,100198208-198409

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-10020iKP6#¥2,420197802-198409

sub48028-17010¥2,420

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-20006iKP6#¥220197802-198409

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-36002iKP6#¥250197802-198409

sub90430-37003¥250

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-10060iKP6#..DLX,SE,STD,XL¥31,500197802-198005

main48510-10070iKP61..S197802-198005

sub48510-10060¥31,500

main48510-10080iKP6#..DLX,DXA,SE,STD,XL¥31,500198005-198208

sub48510-10100¥31,400

main48510-10090iKP61..S¥31,500198005-198208

sub48510-10100¥31,400

main48510-10100iKP61..DLX,DXA,SE,STD,XL¥31,400198208-198409

sub48510-10101¥31,400

main48510-10110iKP61..S,SI¥31,400198208-198409

sub48510-10100¥31,400

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-10040iKP6#..DLX,SE,STD,XL¥14,500197802-198005

main48511-10050iKP61..S¥14,500197802-198005

sub48511-10040¥14,500

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-10040iKP6#..DLX,SE,STD,XL¥14,500197802-198005

main48511-10050iKP61..S¥14,500197802-198005

sub48511-10040¥14,500

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-10040iKP6#..DLX,SE,STD,XL¥32,700197802-198005

main48520-10050iKP61..S¥32,700197802-198005

sub48520-10040¥32,700

main48520-10060iKP6#..DLX,DXA,SE,STD,XL¥31,500198005-198208

sub48520-10080¥31,400

main48520-10070iKP61..S¥31,500198005-198208

sub48520-10080¥31,400

main48520-10080iKP61..DLX,DXA,SE,STD,XL¥31,400198208-198409

sub48520-10081¥31,400

main48520-10090iKP61..S,SI¥31,400198208-198409

sub48520-10080¥31,400

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-10050iKP6#..DLX,DXA,SE,STD,XL¥3,310198005-198208

main48550-10060iKP6#..DLX,SE,STD,XL197802-198005

main48550-10070iKP61..S198005-198208

main48550-10080iKP61..S,SI¥3,000198208-198409

main48550-12019iKP61..S¥3,330197802-198005

main48550-16010iKP61..DLX,DXA,SE,STD,XL198208-198409

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-10030iKP6#¥1,780197802-198409

48568RING, SHOCK ABSORBER PISTON

main48568-12010iKP6#¥250197802-198208

main48568-12020iKP61¥760198208-198306

main48568-12021iKP61¥670198306-198409

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-10020iKP6#¥1,970197802-198409

48577STOPPER, SHOCK ABSORBER REBOUND

main48577-10010iKP6#¥310197802-198409

13 parts on this diagram · 2 diagrams in section
