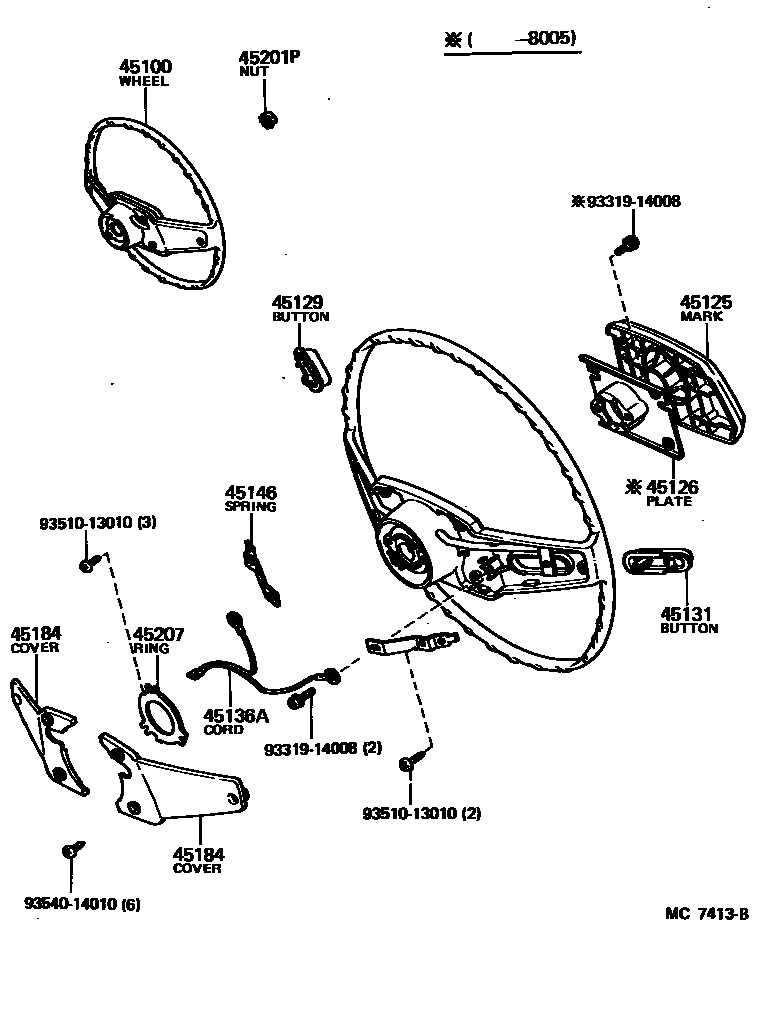

STEERING WHEEL

0001 1 0003 1 0004 1 0005 1 0006 1

45100WHEEL ASSY, STEERING

main45100-10140-01iKP61..S197804-198005

BLACK,BLACK,TRIM2#

sub45100-10141

main45100-10140-04iKP61..S197804-198005

BLUE,BLUE,TRIM8#

sub45100-10141

main45100-10140-05iKP61..S197804-198005

BEIGE,BEIGE,TRIM4#

sub45100-10141

main45100-10160-01iKP6#..DLX,STD,XL197802-198005

BLACK,BLACK,TRIM2#

sub45100-10160

main45100-10160-04iKP6#..DLX,XL197802-198005

BLUE,BLUE,TRIM8#

sub45100-10160

main45100-10160-05iKP6#..DLX,XL197802-198005

BEIGE,BEIGE,TRIM4#

sub45100-10160

main45100-10161-01iKP6#..DLX,DXA,STD,XL198005-198007

BLACK,BLACK,TRIM2#

sub45100-10162

main45100-10161-04iKP6#..DLX,DXA,XL198005-198007

BLUE,BLUE,TRIM2#,4#,8#

sub45100-10162

main45100-10161-06iKP6#..DLX,DXA,XL198005-198007

LIGHT BROWN,BROWN,TRIM4#

sub45100-10162

main45100-10162-01iKP6#..4D198007-198208

BLACK,BLACK,TRIM2#

sub45100-10162

main45100-10162-04iKP6#..DLX,DXA,XL198007-198108

BLUE,BLUE,TRIM2#,4#,8#

sub45100-10162

main45100-10162-06iKP6#..DLX,DXA,XL198007-198208

LIGHT BROWN,BROWN,TRIM4#

sub45100-10162

main45100-10170-01iKP61..S197802-197804

BLACK,BLACK,TRIM2#

sub45100-10140

main45100-10170-04iKP61..S197802-197804

BLUE,BLUE,TRIM8#

sub45100-10140

main45100-10170-05iKP61..S197802-197804

BEIGE,BEIGE,TRIM4#

sub45100-10140

main45100-10180-01iKP61..SE197802-198005

BLACK,BLACK,TRIM2#

sub45100-10180

main45100-10180-04iKP61..SE197802-198005

BLUE,BLUE,TRIM8#

sub45100-10180

main45100-10180-05iKP61..SE197802-198005

BEIGE,BEIGE,TRIM4#

sub45100-10180

main45100-10190-01iKP61..S198005-198108

BLACK,BLACK,TRIM2#

sub45100-10190

main45100-10190-04iKP61..S198005-198108

BLUE,BLUE,TRIM8#

sub45100-10190

main45100-10190-06iKP61..S198005-198108

LIGHT BROWN,BROWN,TRIM4#

sub45100-10190

main45100-10200-01iKP61..SE198005-198208

BLACK,BLACK,TRIM2#

sub45100-10200

main45100-10200-04iKP61..SE198005-198108

BLUE,BLUE,TRIM2#,4#,8#

sub45100-10200

main45100-10200-06iKP61..SE198005-198208

LIGHT BROWN,BROWN,TRIM4#

sub45100-10200

main45100-16010-01iKP61..SED..XL198108-198208

BLACK,BLACK,TRIM2#

sub45100-16010

main45100-16010-02iKP61..SED..XL198108-198208

XL-L,DARK WINE,RED/MAROON,TRIM0#

sub45100-16010

main45100-16010-06iKP61..SED..XL198108-198208

LIGHT BROWN,BROWN,TRIM4#

sub45100-16010

main45100-16041-01iKP61..S198108-198208

LEATHER,BLACK,BLACK,TRIM2#

sub45100-16041

main45100-16060-01iKP61..S,SE,SI198208-198409

BLACK,BLACK,TRIM1#

sub45100-16060

main45100-16060-02iKP61..SE198208-198409

DARK WINE,RED/MAROON,TRIM3#

sub45100-16060

main45100-16060-06iKP61..SE198208-198409

BROWN,BROWN,TRIM4#

sub45100-16060

main45100-16080-01iKP61..DLX,DXA,STD,XL198208-198409

BLACK,BLACK,TRIM1#

sub45100-16080

main45100-16080-02iKP61..SED..XL198208-198409

XL-L,DARK WINE,RED/MAROON,TRIM0#

sub45100-16080

main45100-16080-06iKP61..DLX,DXA,XL198208-198409

BROWN,BROWN,TRIM1#,4#

sub45100-16080

45125MARK, STEERING WHEEL PAD

main45125-10040iKP61..S,SE197802-198005

main45125-10080-01iKP6#..DLX,STD,XL197802-198005

BLACK,BLACK,TRIM2#

main45125-10080-04iKP6#..DLX,XL197802-198005

BLUE,BLUE,TRIM8#

main45125-10080-05iKP6#..DLX,XL197802-198005

BEIGE,BEIGE,TRIM4#

main45125-10100-01iKP61..SED..(DLX,DXA,STD)198005-198208

BLACK,BLACK,TRIM2#

sub45125-10100

main45125-10100-04iKP6#..DLX,DXA,XL198005-198108

BLUE,BLUE,TRIM2#,4#,8#

sub45125-10100

main45125-10100-06iKP6#..DLX,DXA,XL198005-198208

LIGHT BROWN,BROWN,TRIM0#,4#

sub45125-10100

main45125-10100-06iKP61..SED..(DLX,DXA)198108-198409

LIGHT BROWN,BROWN,TRIM4#

sub45125-10100

main45125-10110iKP61..S,SE198005-198208

main45125-10120-01iKP61..SED..XL198108-198208

BLACK,BLACK,TRIM2#

sub45125-10120

main45125-10120-02iKP61..SED..XL198108-198208

XL-L,DARK WINE,RED/MAROON,TRIM0#

sub45125-10120

main45125-10120-06iKP61..SED..XL198108-198208

LIGHT BROWN,BROWN,TRIM4#

sub45125-10120

main45125-10130-01iKP61..DLX,DXA,STD,XL198208-198409

BLACK,BLACK,TRIM1#

sub45125-10130

main45125-10130-02iKP61..SED..XL198208-198409

XL-L,DARK WINE,RED/MAROON,TRIM0#

sub45125-10130

main45125-10130-06iKP61..DLX,DXA,XL198208-198409

BROWN,BROWN,TRIM1#,4#

sub45125-10130

main45125-10141iKP61..S,SE,SI198208-198409

45126PLATE, STEERING WHEEL PAD SET

main45126-10010iKP6#..DLX,STD,XL197802-198005

45129BUTTON, HORN, NO.2

main45131-10080iKP61..S,SE197802-198007

sub45131-10081

main45131-10081iKP61..S,SE198007-198208

main45131-10090iKP6#..DLX,DXA,STD,XL197802-198007

sub45131-10091

main45131-10091iKP6#..4D198007-198208

main45131-16010iKP61..SED..XL198108-198208

main45131-16020-01iKP61..S,SE,SI198208-198409

BLACK,BLACK,TRIM1#

sub45131-16020

main45131-16020-02iKP61..SE198208-198409

DARK WINE,RED/MAROON,TRIM3#

sub45131-16020

main45131-16020-06iKP61..SE198208-198409

BROWN,BROWN,TRIM4#

sub45131-16020

main45131-16030-01iKP61..DLX,DXA,STD,XL198208-198409

BLACK,BLACK,TRIM1#

sub45131-16030

main45131-16030-02iKP61..SED..XL198208-198409

XL-L,DARK WINE,RED/MAROON,TRIM0#

sub45131-16030

main45131-16030-06iKP61..DLX,DXA,XL198208-198409

BROWN,BROWN,TRIM1#,4#

sub45131-16030

45131BUTTON, HORN, NO.1

main45129-16020-01iKP61..S,SE,SI198208-198409

BLACK,BLACK,TRIM1#

sub45129-16020

main45129-16020-02iKP61..SE198208-198409

DARK WINE,RED/MAROON,TRIM3#

sub45129-16020

main45129-16020-06iKP61..SE198208-198409

BROWN,BROWN,TRIM4#

sub45129-16020

main45129-16030-01iKP61..DLX,DXA,STD,XL198208-198409

BLACK,BLACK,TRIM1#

main45129-16030-02iKP61..SED..XL198208-198409

XL-L,DARK WINE,RED/MAROON,TRIM0#

main45129-16030-06iKP61..DLX,DXA,XL198208-198409

BROWN,BROWN,TRIM1#,4#

main45131-10080iKP61..S,SE197802-198007

sub45131-10081

main45131-10081iKP61..S,SE198007-198208

main45131-10090iKP6#..DLX,DXA,STD,XL197802-198007

sub45131-10091

main45131-10091iKP61..SED..(DLX,DXA,STD)198007-198208

main45131-16010iKP61..SED..XL198108-198208

45136PLATE, HORN BUTTON CONTACT

main45136-16010iKP61..SED..XL198108-198208

45136ACORD(FOR HORN CONTACT RING)

main90945-02027iKP61..S,SE197802-198208

main90945-02032iKP61..SED..XL198108-198208

main90945-02036iKP6#..DLX,DXA,STD,XL197802-198208

main90945-02058iKP61..DLX,DXA,STD,XL198208-198409

main90945-02060iKP61..S,SE,SI198208-198409

45146SPRING, HORN BUTTON CONTACT

main45146-10040iKP61..S,SE197802-198208

main45146-10050iKP61..SED..(DLX,DXA,STD)197802-198208

main45146-12100iKP61..DLX,DXA,STD,XL198304-198409

main45146-16010iKP61..SED..XL198108-198208

main45146-16020iKP61..S,SE,SI198208-198409

main45146-16030iKP61..DLX,DXA,STD,XL198208-198304

45184COVER, STEERING WHEEL BOSS, LOWER

main45183-10020-01iKP6#..DLX,STD,XL197802-198005

RH,BLACK,BLACK,TRIM2#

sub45183-10021

main45183-10020-04iKP6#..DLX,XL197802-198005

RH,BLUE,BLUE,TRIM8#

sub45183-10021

main45183-10020-05iKP6#..DLX,XL197802-198005

RH,BEIGE,BEIGE,TRIM4#

sub45183-10021

main45183-10021-01iKP61..SED..(DLX,DXA,STD)198005-198208

RH,BLACK,BLACK,TRIM2#

sub45183-10021

main45183-10021-04iKP6#..DLX,DXA,XL198005-198108

RH,BLUE,BLUE,TRIM2#,4#,8#

sub45183-10021

main45183-10021-06iKP6#..DLX,DXA,XL198005-198108

RH,LIGHT BROWN,BROWN,TRIM0#,4#

sub45183-10021

main45183-10021-06iKP61..SED..(DLX,DXA)198108-198208

RH,LIGHT BROWN,BROWN,TRIM2#,4#

sub45183-10021

main45184-10010-01iKP6#..DLX,STD,XL197802-198005

LH,BLACK,BLACK,TRIM2#

sub45184-10011

main45184-10010-04iKP6#..DLX,XL197802-198005

LH,BLUE,BLUE,TRIM8#

sub45184-10011

main45184-10010-05iKP6#..DLX,XL197802-198005

LH,BEIGE,BEIGE,TRIM4#

sub45184-10011

main45184-10011-01iKP61..SED..(DLX,DXA,STD)198005-198208

LH,BLACK,BLACK,TRIM2#

main45184-10011-04iKP6#..DLX,DXA,XL198005-198108

LH,BLUE,BLUE,TRIM2#,4#,8#

main45184-10011-06iKP61..SED..(DLX,DXA)198108-198208

LH,LIGHT BROWN,BROWN,TRIM2#,4#

main45184-10011-06iKP6#..DLX,DXA,XL198005-198108

LH,LIGHT BROWN,BROWN,TRIM0#,4#

main45184-10020-01iKP61..S,SE198007-198208

BLACK,BLACK,TRIM2#

sub45184-10020

main45184-10020-04iKP61..S,SE198007-198108

BLUE,BLUE,TRIM2#,4#,8#

sub45184-10020

main45184-10020-06iKP61..S,SE198007-198108

LIGHT BROWN,BROWN,TRIM4#

sub45184-10020

main45184-10020-06iKP61..SE198108-198208

LIGHT BROWN,BROWN,TRIM2#,4#

sub45184-10020

main45184-12020-01iKP61..S,SE197802-198007

BLACK,BLACK,TRIM2#

sub45184-12020

main45184-12020-04iKP61..S,SE197802-198007

BLUE,BLUE,TRIM8#

sub45184-12020

main45184-12020-06iKP61..S,SE197802-198005

LIGHT BROWN,BROWN,TRIM4#

sub45184-12020

main45184-12020-26iKP61..S,SE198005-198007

LIGHT BROWN,BROWN,TRIM4#

sub45184-12020

main45184-16010-01iKP61..S,SE,SI198208-198409

BLACK,BLACK,TRIM1#

sub45184-16010

main45184-16010-02iKP61..SE198208-198409

DARK WINE,RED/MAROON,TRIM3#

sub45184-16010

main45184-16010-06iKP61..SE198208-198409

BROWN,BROWN,TRIM1#,4#

sub45184-16010

45201PNUT, STEERING WHEEL SET

main90179-12086iKP6#197802-198409

45207RING, HORN CONTACT

main45176-20030iKP61..DLX,DXA,STD,XL197802-198409

main45176-30070iKP61..S,SE,SI198208-198409

9331914008

main93319-14008

9351013010

main93510-13010

9354014010

main93540-14010

14 parts on this diagram · 5 diagrams in section
