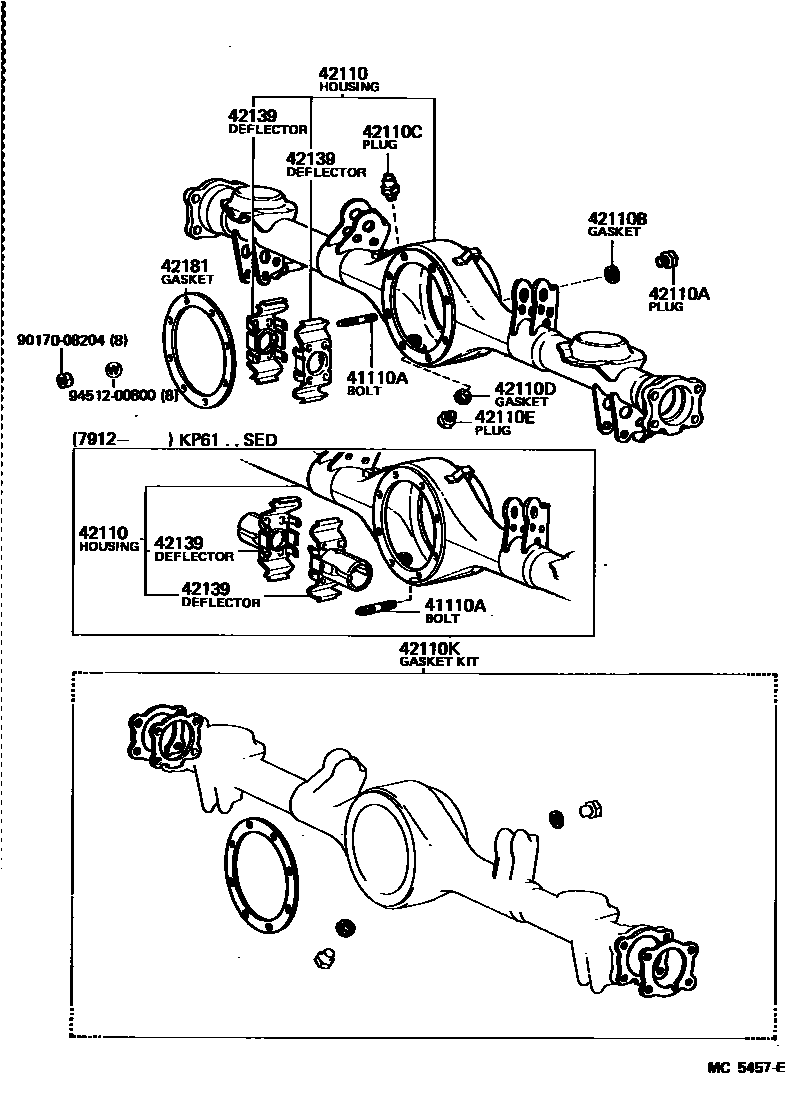

REAR AXLE HOUSING & DIFFERENTIAL
41110CARRIER ASSY, DIFFERENTIAL, REAR
R=41:10=4.100,*AXC=U292
R=41:13=3.154,*AXC=X392
R=41:12=3.417,*AXC=X382
R=43:12=3.583,*AXC=X372
R=41:13=3.154,*AXC=X392
R=43:13=3.308,*AXC=U412
R=41:12=3.417,*AXC=X382
R=41:11=3.727,*AXC=U302
R=43:12=3.583,*AXC=U372
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
L=60
N=41:14,L=60
sub90116-08418
sub90116-08418
sub90116-08418
sub90116-08418
42110HOUSING ASSY, REAR AXLE
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
42110KGASKET KIT, DIFFERENTIAL CARRIER
42139DEFLECTOR, REAR AXLE HOUSING OIL
42181GASKET, REAR DIFFERENTIAL CARRIER
9017008204
main90170-08204
9451200800
main94512-00800
13 parts on this diagram · 2 diagrams in section
