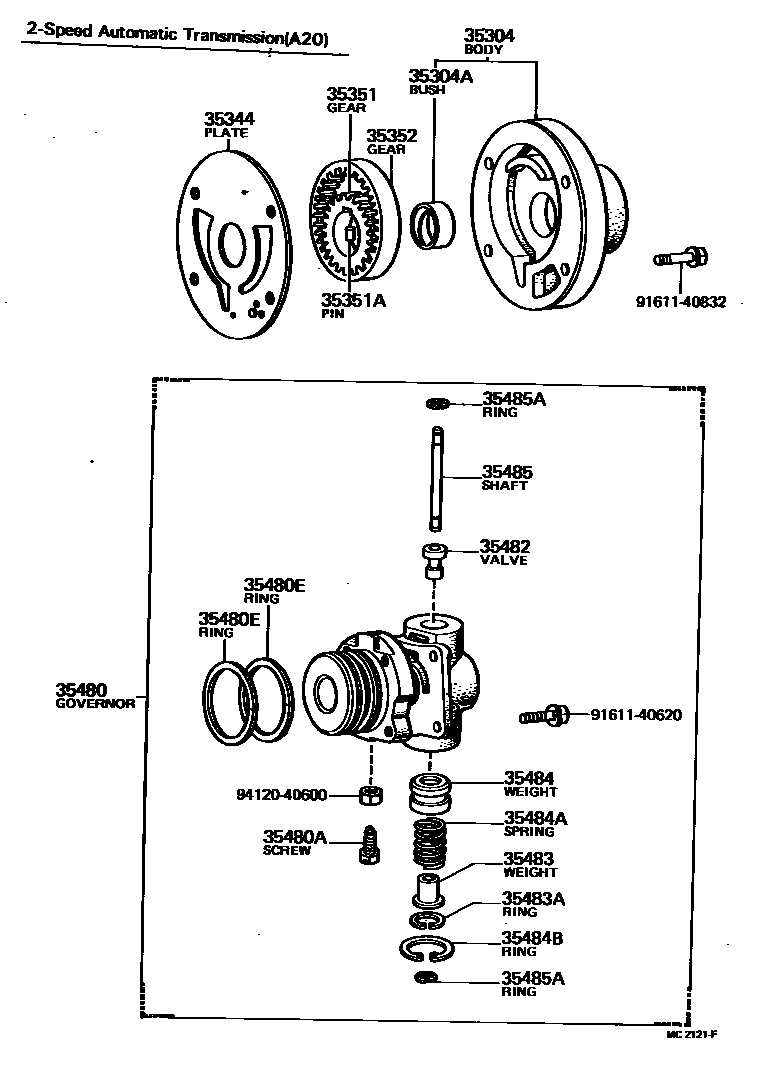

REAR OIL PUMP & GOVERNOR (ATM)

0001 1 0002 1

35304BODY SUB-ASSY, REAR OIL PUMP

main35304-12010iKP61..2FC197802-198108

35304ABUSH, BIMETAL FORMED (FOR REAR OIL PUMP BODY)

main90999-72019iKP61..2FC197802-198108

35344PLATE, REAR OIL PUMP

main35305-12011iKP61..2FC197802-198108

35351GEAR, REAR OIL PUMP DRIVE

main35351-12010iKP61..2FC197802-198108

35351APIN, STRAIGHT (FOR REAR OIL PUMP DRIVE GEAR)

main90250-06133iKP61..2FC197802-198108

35352GEAR, REAR OIL PUMP DRIVEN

main35352-31010iKP61..2FC197802-198108

35480GOVERNOR

main35480-19015iKP61..2FC197802-198108

main35480-20010iKP61..3FC198108-198208

main35480-26010iKP61..3FC198301-198409

main35480-30051iKP61..3FC198208-198301

35480ASCREW (FOR GOVERNOR BODY SET BOLT)

main90143-60017iKP61..2FC197802-198108

35480ERING (FOR REAR OIL PUMP GOVERNOR)

main35617-12010iKP61..2FC197802-198108

35482VALVE, GOVERNOR

main35482-22010iKP61..3FC198108-198208

main35482-30030iKP61..3FC198208-198409

main35482-31010iKP61..2FC197802-198108

35483WEIGHT, GOVERNOR, INNER

main35483-31010iKP61..2FC197802-198108

35483ARING, HOLE SNAP (FOR GOVERNOR INNER WEIGHT)

main96151-01900iKP61..2FC197802-198108

35484WEIGHT, GOVERNOR, OUTER

main35484-12010iKP61..2FC197802-198108

main35484-22010iKP61..3FC198108-198409

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09015iKP61..3FC198108-198208

main90501-09673iKP61..3FC198208-198409

main90501-12200iKP61..2FC197802-198108

35484BRING, HOLE SNAP (FOR GOVERNOR OUTER WEIGHT)

main96151-02500iKP61..2FC197802-198108

35485SHAFT, GOVERNOR VALVE

main35485-12010iKP61..2FC197802-198108

main35485-22010iKP61..3FC198108-198409

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-03007iKP61..2FC197802-198108

main90523-05020iKP61..3FC198108-198409

9161140620

main91611-40620

9161140832

main91611-40832

9412040600

main94120-40600

20 parts on this diagram · 2 diagrams in section
