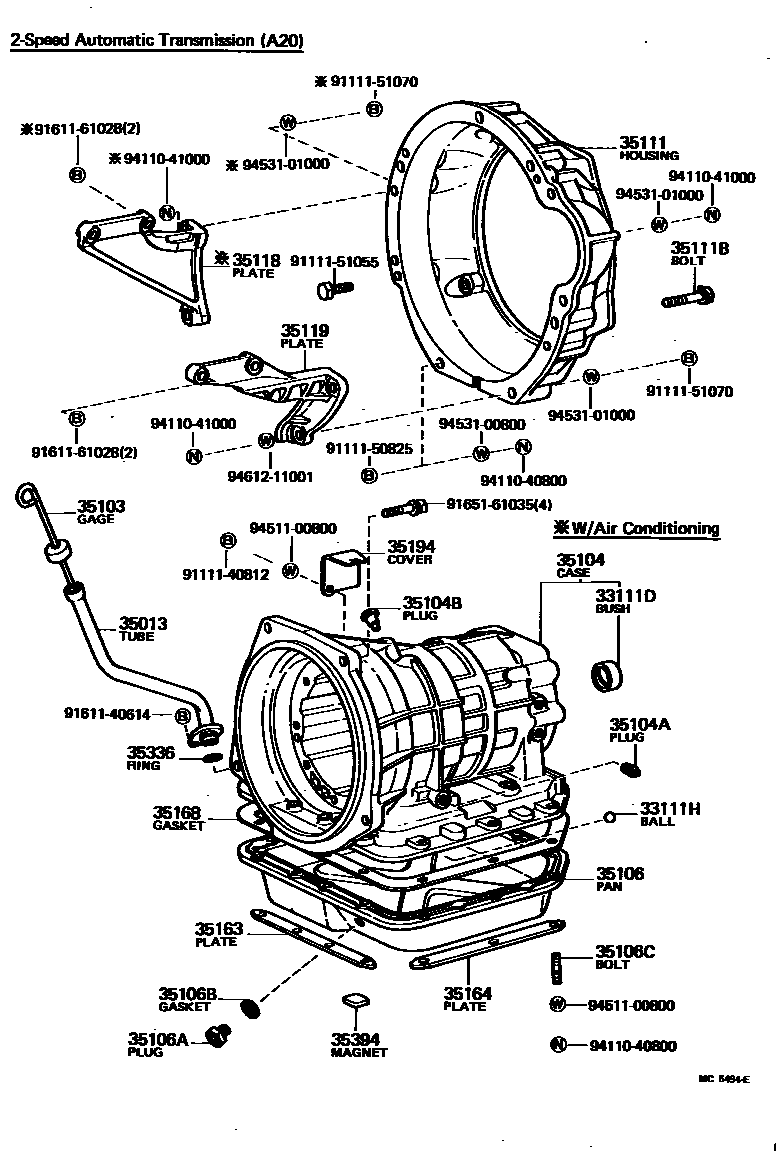

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

33111DBUSH, BIMETAL FORMED(FOR TRANSMISSION CASE)

main90999-73039iKP61..2FC197802-198108

33111HBALL(FOR THROTTLE RELAY VALVE)

main90360-06004iKP61..2FC197802-198108

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12050iKP61..2FC197802-198108

main35013-12110iKP61..3FC198108-198409

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12012iKP61..2FC197802-198108

main35103-20071iKP61..3FC198108-198308

main35103-20072iKP61..3FC198308-198409

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-12020iKP61..3FC198108-198409

sub35104-12140

main35104-20020iKP61..2FC197802-198108

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iKP61..3FC198108-198409

main90345-51005×4iKP61..2FC197802-198108

sub90345-51025

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03001iKP61..2FC197802-198108

main90930-03069iKP61..3FC198108-198409

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22010iKP61..2FC197802-198108

main35106-22020iKP61..3FC198108-198409

sub35106-22021

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iKP61..3FC198108-198307

sub90341-10011

main90341-10006iKP61..3FC198307-198409

sub90341-10011

main90341-18057iKP61..2FC197802-198108

35106BGASKET, DRAIN PLUG (ATM)

main12157-10010iKP61..2FC197802-198108

main35178-30010iKP61..3FC198108-198409

35106CBOLT, STUD (FOR AUTOMATIC TRANSMISSION OIL PAN SETTING)

main90116-08037×14iKP61..2FC197802-198108

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-12040iKP61..2FC197802-198108

main35111-12080iKP61..3FC198108-198409

35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)

main90119-12004×4iKP61..ATM197802-198409

35118PLATE, STIFENER, RH (ATM)

main33118-12050iKP61..ATM197802-198409

W/AIR CONDITIONING

35119PLATE, STIFENER, LH (ATM)

main33119-12021iKP61..ATM197802-198409

35163PLATE, TRANSMISSION OIL PAN FLANGE, NO.1

main35163-12010×2iKP61..2FC197802-198108

35164PLATE, TRANSMISSION OIL PAN FLANGE, NO.2

main35164-12010×2iKP61..2FC197802-198108

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-12010iKP61..2FC197802-197908

main35168-12011iKP61..2FC197908-198108

main35168-22011iKP61..3FC198108-198409

35194COVER, TRANSMISSION CASE DUST

main35194-12010iKP61..2FC197802-198108

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iKP61..3FC198108-198409

main90301-17006iKP61..2FC197802-198108

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iKP61..ATM197802-198409

9111140812

main91111-40812

9111150825

main91111-50825

9111151055

main91111-51055

9111151070

main91111-51070

9161140614

main91611-40614

9161161028

main91611-61028

9165161035

main91651-61035

9411040800

main94110-40800

9411041000

main94110-41000

9451100800

main94511-00800

9453100800

main94531-00800

9453101000

main94531-01000

9461211001

main94612-11001

34 parts on this diagram · 2 diagrams in section
