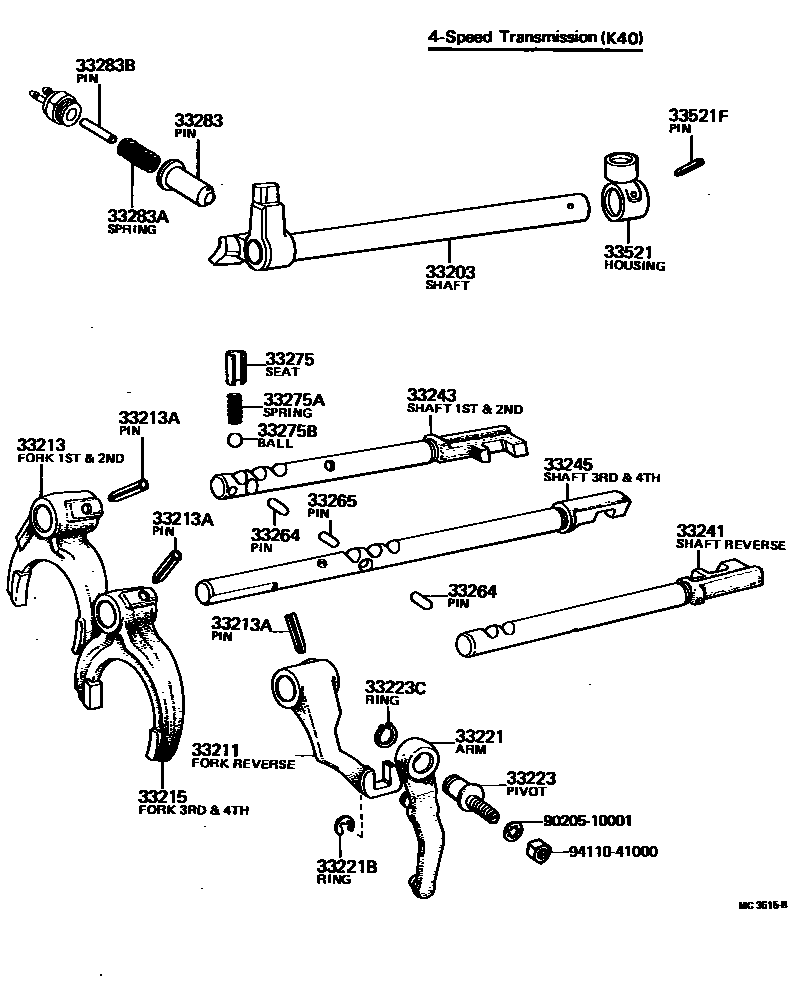

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33215FORK, 3RD & 4TH SHIFT
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33223CRING, SHAFT SNAP(FOR SHIFT ARM PIVOT)
33241SHAFT, REVERSE SHIFT FORK
33243SHAFT, 1ST & 2ND SHIFT FORK
33245SHAFT, 3RD & 4TH SHIFT FORK
L=235.7
L=235.7
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33265PIN, SHIFT INTERLOCK, NO.2
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275BBALL, SHAFT DETENT
33283PIN, REVERSE RESTRICT, NO.1
33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
33283BPIN, STRAIGHT (FOR REVERSE RESTRICT PIN)
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
9020510001
main90205-10001
9411041000
main94110-41000
24 parts on this diagram · 2 diagrams in section
