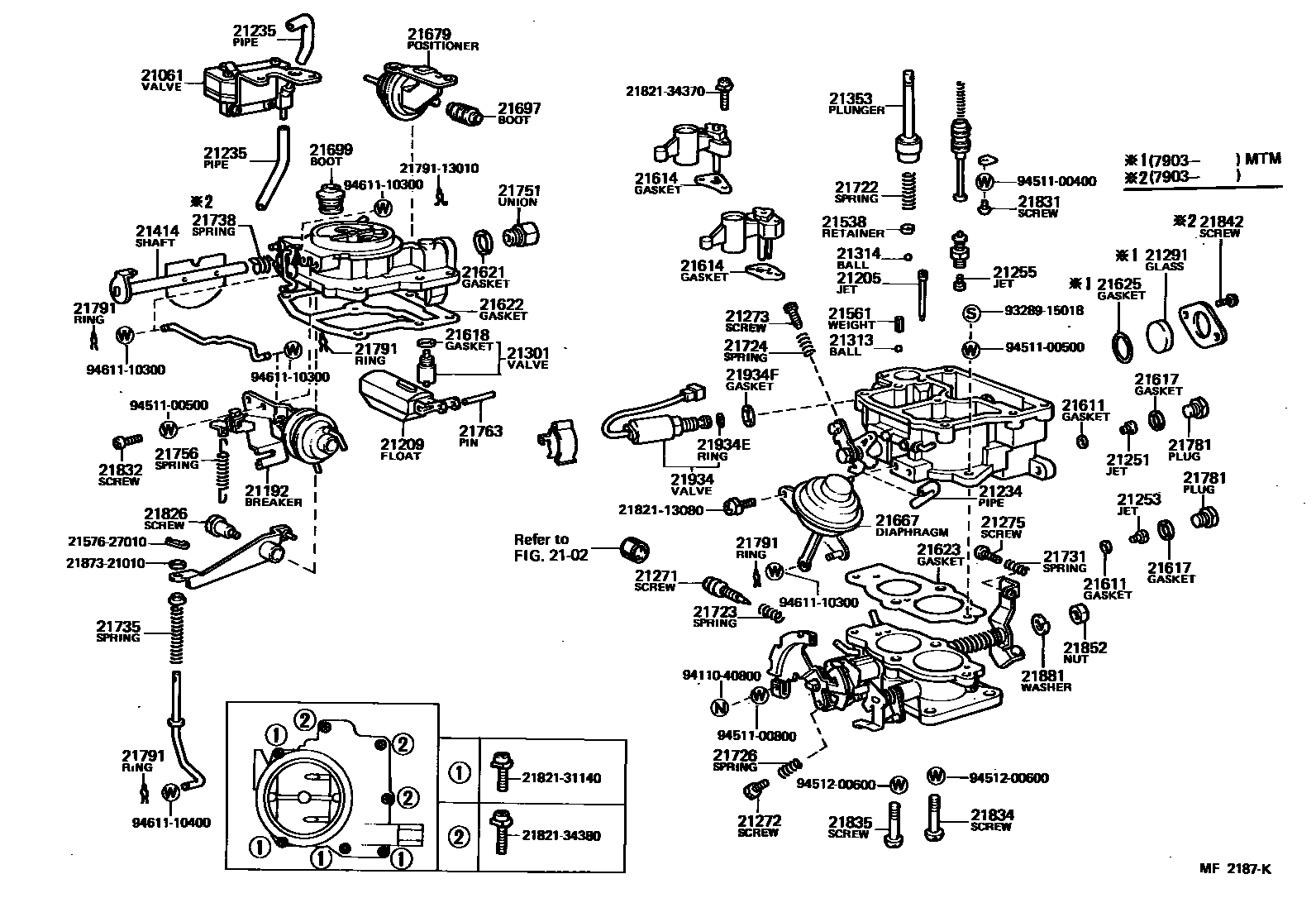

CARBURETOR
2102
21192BREAKER
21205JET SUB-ASSY, SLOW
21209FLOAT SUB-ASSY
21251JET, 1ST MAIN
21255JET, POWER
21272SCREW, 1ST IDLE ADJUSTING
21291GLASS, LEVEL GAGE
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)
sub21314-11020
21538RETAINER, BALL CHECK
21561WEIGHT, PUMP DISCHARGE
21611GASKET, MAIN JET
21614GASKET, VENTURI
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21625GASKET, LEVEL GAGE
21667DIAPHRAGM
21697BOOT(FOR SLIDING ROD)
21722SPRING, PUMP DAMPING
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21726SPRING, 1ST IDLE ADJUSTING
21731SPRING, DASH POT OR POSITIONER ADJUSTING
21735SPRING, PUMP ARM
21738SPRING, CHOKE VALVE RELIEF
21751UNION, NIPPLE
21756SPRING, BACK(FOR THROTTLE SHAFT)
WD=1.2,CW=21.25
WD=1.2,CW=21
21763PIN, FLOAT LEVER
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
sub21791-13011
21826SCREW, PUMP ARM SET
21831SCREW, POWER PISTON STOP
21832SCREW(FOR CHOKE LEVER ADAPTER SET)
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21835SCREW, SET, NO.3(FOR CARBURETOR BODY SET)
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852NUT, THROTTLE LEVER SET
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
2157627010CLIP, PUMP STRAINER
main21576-27010
2179113010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-13010
2182113080SCREW, 2ND THROTTLE VALVE SET
main21821-13080
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182134370SCREW, 2ND THROTTLE VALVE SET
main21821-34370
2182134380SCREW, 2ND THROTTLE VALVE SET
main21821-34380
2187321010WASHER, PLUNGER
main21873-21010
9328915018
main93289-15018
9411040800
main94110-40800
9451100400
main94511-00400
9451100500
main94511-00500
9451100800
main94511-00800
9451200600
main94512-00600
9461110300
main94611-10300
9461110400
main94611-10400
72 parts on this diagram · 6 diagrams in section
