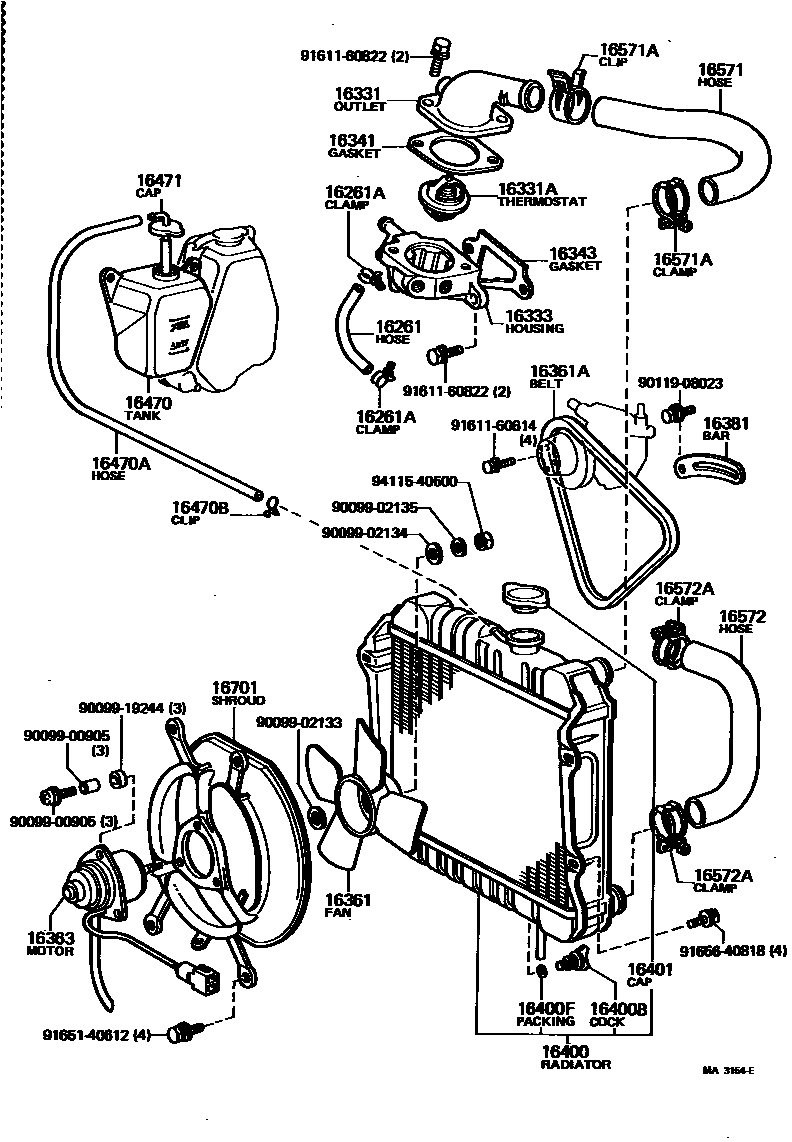

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16261HOSE, WATER BY-PASS

main16261-13010i3KHJ,4KU,4KJ..KP6#197802-198409

main16261-13050i4KEU..KP61198208-198409

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90460-15001i3KHJ,4KU,4KJ..KP6#197802-198303

sub96112-10150

main90467-13001i4KEU..KP61198208-198409

sub96135-51300

main90467-13128i4KJ..KP61198303-198409

16331OUTLET, WATER

main16331-13020i3KHJ,4K#..KP6#197802-198208

main16331-13040i4K#..KP61198208-198409

16331ATHERMOSTAT

main90916-03034i3KHJ,4KU..KP6#197802-198211

*WAX 82-95,*(F)

main90916-03036i4KU..KP61..4F..DXA;3KHJ,4KU,4KJ..KP6#..DLX,S,SE,STD,XL198108-198211

*WAX 88-100,*(F)

sub90916-03040

main90916-03036i3KHJ,4KU..KP6#197802-198211

COLD SPEC,*WAX 88-100,*(F)

sub90916-03040

main90916-03037i4KU..KP61..4F..DXA;3KHJ,4KU,4KJ..KP6#..DLX,S,SE,STD,XL197802-198211

*WAX 82-95,KUZEH

sub90916-03083

main90916-03040i4KU..KP61..4F..DXA;4KJ,4KU..KP61..DLX,S,SE,STD,XL198201-198211

*WAX 88-100,KUZEH

sub90916-03078

main90916-03040i4KU..KP61..5F..DXA198201-198211

COLD SPEC,*WAX 88-100,KUZEH

sub90916-03078

main90916-03054i4KEU..KP61198211-198409

sub90916-03083

main90916-03055i4KU..KP61..4F..DXA;4KJ,4KU..KP61..DLX,S,SE,STD,XL198211-198409

sub90916-03078

main90916-03055i4KEU..KP61198211-198409

sub90916-03078

16333HOUSING, WATER OUTLET

main16333-13012i4KU..KP61197802-198108

main16333-13070i4KU..KP61..2FC198008-198108

W/COOLER

main16333-13080i4KU..KP61..4F..DXA;4KJ,4KU..KP61..DLX,S,SE,STD,XL198108-198409

main16333-13100i4KJ..KP61198201-198409

W/COOLER

main16333-13100i4KU..KP61..5F..DXA198108-198409

main16333-13110i4KEU..KP61198208-198409

main16333-24050i3KHJ..KP62197810-198201

COLD SPEC,W/COOLER

main16333-24070i3KHJ..KP62197810-198201

16341GASKET, WATER OUTLET

main16341-13010i3KHJ,4KU..KP6#197802-197812

sub16341-13011

main16341-13011i3KHJ,4K#..KP6#197812-198409

sub16341-13040

16343GASKET, WATER OUTLET HOUSING

main16343-22010i3KHJ,4KU..KP6#197802-198201

sub16343-22011

main16343-22011i4K#..KP61198201-198409

sub16343-13020

16361FAN

main16361-13010i3KHJ,4K#..KP6#..MTM197802-198409

4 BLADES

main16361-13020i4KU..KP61..ATM197802-198208

4 BLADES

main16361-13040i4KU..KP61..3FC198208-198409

16361ABELT, V(FOR FAN & ALTERNATOR)

main99321-00840i3KHJ..KP62197808-198108

L=840

main99321-00860i3KHJ,4KU..KP6#197808-198005

L=860,W/COOLER

main99321-00870i4KU..KP61197903-198409

L=870

main99321-00885i3KHJ,4KU,4KJ..KP6#198108-198409

L=885

main99521-10839i4KU..KP61197802-197808

L=839

sub99321-00840

main99521-10860i4KU..KP61197805-197808

L=860,W/COOLER

sub99321-00860

16363MOTOR, COOLING FAN

main16363-13010i3KHJ,4KU..KP6#..MTM197802-198005

sub16363-15020

main16363-13020i4KU..KP61..2FC197802-198005

sub16363-15030

main16363-13030i3KHJ,4K#..KP6#..MTM198005-198208

main16363-13040i4KU..KP61..ATM198005-198208

main16363-13050i4K#..KP61..MTM198208-198409

main16363-13060i4KU..KP61..3FC198208-198409

16381BAR, FAN BELT ADJUSTING

main16381-24011i3KHJ,4K#..KP6#197802-198409

16400RADIATOR ASSY

main16400-13020i3KHJ,4KU..KP6#..MTM197802-198005

main16400-13030i4KU..KP61..2FC197802-198005

main16400-13150i3KHJ,4K#..KP6#..MTM198005-198208

sub16400-13160

main16400-13160i4KU..KP61..ATM198005-198208

main16400-13230i4KJ..KP61198208-198409

main16400-13240i4KU..KP61..3FC198208-198409

main16400-13290i4KEU,4KU..KP61..MTM198208-198409

sub16400-13230

main16410-13230i4KJ..KP61198308-198404

sub16400-13230

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i4K#..KP61198208-198409

main90910-09054i3KHJ,4K#..KP6#197802-198208

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007i3KHJ,4KU..KP6#197802-198110

sub96711-19007

main96711-19007i3KHJ,4K#..KP6#198110-198409

16401CAP SUB-ASSY, RADIATOR

main16401-36010i4KU..KP61197802-197808

sub16401-36011

main16401-36011i3KHJ,4K#..KP6#197808-198208

main16401-63010i4K#..KP61198208-198409

16470TANK ASSY, RADIATOR RESERVE

main16470-13020i4K#..KP61198208-198409

main16480-13010i4KU..KP61..DLX,S,STD,XL197802-198005

main16480-13020i4KU..KP61..S,SE,XL197802-198005

W/LEVEL WARNING

main16480-13030i3KHJ,4K#..KP6#..DLX,DXA,S,STD,XL198005-198208

main16480-13040i4KU..KP61..S198005-198208

W/OK MONITOR

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12063i3KHJ,4K#..KP6#198005-198208

sub90445-12078

main90445-12066i3KHJ,4KU..KP6#197802-198005

main90445-12073i4K#..KP61198208-198409

sub90099-33370

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i3KHJ,4K#..KP6#197802-198409

16471CAP SUB-ASSY, RESERVE TANK

main16405-13012i3KHJ,4K#..KP6#198005-198208

main16405-13020i4K#..KP61198208-198409

main16471-13010i3KHJ,4KU..KP6#197802-198005

16571HOSE, RADIATOR, INLET

main16572-13090i4K#..KP61198208-198409

main90916-01152i3KHJ,4KU..KP6#197802-198005

main90916-01169i3KHJ,4K#..KP6#198005-198208

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31001i4K#..KP61198208-198409

sub90466-30001

main90467-37001i3KHJ,4KU..KP6#197802-198005

WATER OUTLET SIDE

sub90467-37003

main90467-37001i3KHJ,4K#..KP6#198005-198208

sub90467-37003

main96111-10430i3KHJ,4KU..KP6#197802-198005

RADIATOR SIDE

16572HOSE, RADIATOR, OUTLET

main16571-13010i3KHJ,4KU..KP6#197802-198005

main16571-13090i3KHJ,4K#..KP6#198005-198409

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036i3KHJ,4K#..KP6#197802-198409

16701SHROUD SUB-ASSY, FAN

main16711-13010i4KU..KP61..MTM197802-197809

sub16711-13070

main16711-13021i4KU..KP61..2FC197802-198005

main16711-13070i3KHJ,4KU..KP6#..MTM197809-198005

main16711-13110i3KHJ,4K#..KP6#..MTM198005-198208

main16711-13120i4KU..KP61..ATM198005-198208

main16711-13170i4K#..KP61..MTM198208-198301

sub16711-13171

main16711-13171i4K#..KP61..MTM198301-198409

main16711-13180i4KU..KP61..3FC198208-198409

9009900905

main90099-00905

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9009919244

main90099-19244

9011908023

main90119-08023

9161160614

main91611-60614

9161160822

main91611-60822

9165140612

main91651-40612

9165640818

main91656-40818

9411540500

main94115-40500
