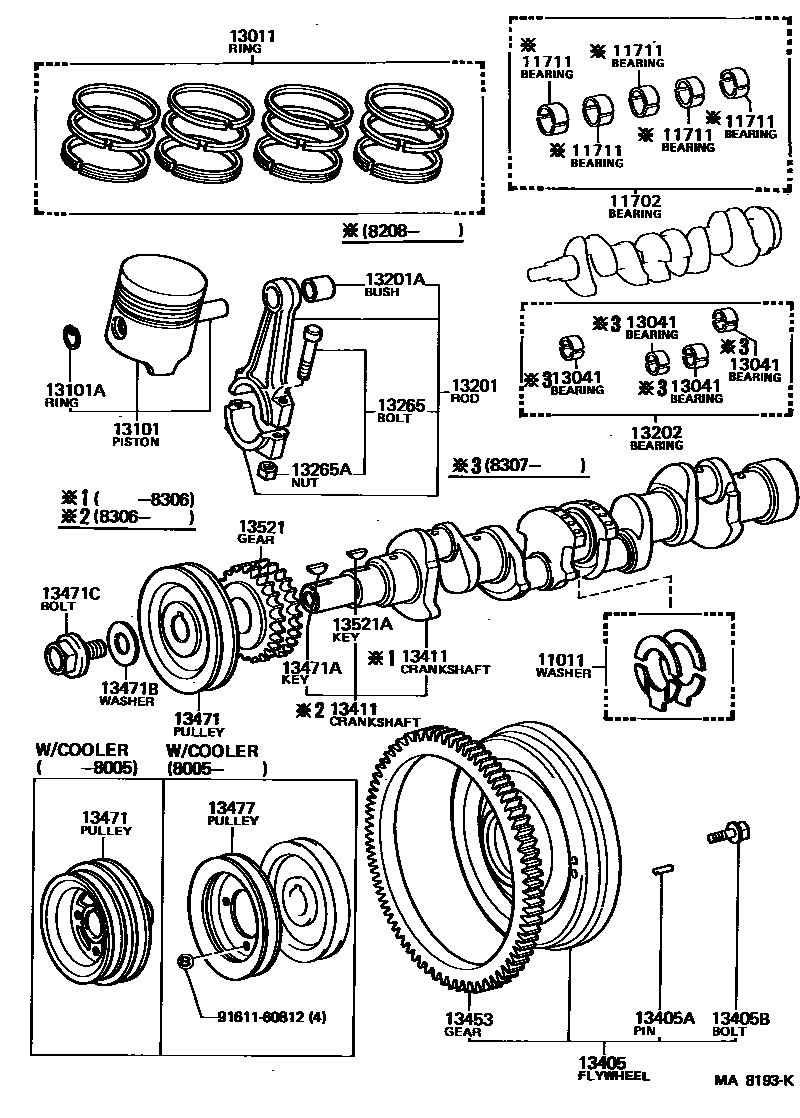

CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-22010i3KHJ,4KU..KP6#197802-197908

STD

sub11011-22011

main11011-22011i3KHJ,4K#..KP6#197908-198409

main11012-22010i3KHJ,4KU..KP6#197802-197908

O/S 0.125

sub11012-22011

main11012-22011i3KHJ,4K#..KP6#197908-198409

main11013-22010i3KHJ,4KU..KP6#197802-197908

O/S 0.250

sub11013-22011

main11013-22011i3KHJ,4K#..KP6#197908-198409

11702BEARING SET, CRANKSHAFT

main11702-22020i3KHJ,4K#..KP6#197802-198208

STD

main11703-22020i3KHJ,4K#..KP6#197802-198208

U/S 0.05

main11704-13010i4K#..KP61198208-198307

sub11704-13011

main11704-13011i4K#..KP61198307-198409

sub11704-13012

main11704-22020i3KHJ,4K#..KP6#197802-198208

main11705-13010i4K#..KP61198208-198307

sub11705-13011

main11705-13011i4K#..KP61198307-198409

sub11705-13012

main11705-22020i3KHJ,4K#..KP6#197802-198208

U/S 0.50

11711BEARING, CRANKSHAFT

main11701-13010-03i4K#..KP61198208-198307

STD,MARK"3",MARK 3

main11701-13010-04i4K#..KP61198208-198307

STD,MARK"4",MARK 4

main11701-13010-05i4K#..KP61198208-198307

STD,MARK"5",MARK 5

main11701-13010-06i4K#..KP61198208-198307

STD,MARK"6",MARK 6

main11701-13010-07i4K#..KP61198208-198307

STD,MARK"7",MARK 7

main11701-13011-03i4K#..KP61198307-198409

STD,MARK"3",MARK 3

sub11701-13012

main11701-13011-04i4K#..KP61198307-198409

STD,MARK"4",MARK 4

sub11701-13012

main11701-13011-05i4K#..KP61198307-198409

STD,MARK"5",MARK 5

sub11701-13012

main11701-13011-06i4K#..KP61198307-198409

STD,MARK"6",MARK 6

sub11701-13012

main11701-13011-07i4K#..KP61198307-198409

STD,MARK"7",MARK 7

sub11701-13012

13011RING SET, PISTON

main13011-13010i4K#..KP61198108-198409

STD

main13011-24011i3KHJ,4KU..KP6#197802-198005

STD

sub13011-24012

main13011-24012i3KHJ..KP62198005-198201

sub13011-13030

main13013-13010i4K#..KP61198108-198409

O/S 0.50

main13013-24011i3KHJ,4KU..KP6#197802-198005

O/S 0.50

sub13013-24012

main13013-24012i3KHJ,4KU..KP6#198005-198201

O/S 0.50

sub13013-13030

main13014-13010i4K#..KP61198108-198409

O/S 0.75

main13014-24011i3KHJ,4KU..KP6#197802-198005

O/S 0.75

sub13014-24012

main13014-24012i3KHJ,4KU..KP6#198005-198201

O/S 0.75

sub13014-13030

main13015-13010i4K#..KP61198108-198409

O/S 1.00

main13015-24011i3KHJ,4KU..KP6#197802-198005

O/S 1.00

sub13015-24012

main13015-24012i3KHJ..KP62198005-198201

O/S 1.00

sub13015-13030

13041BEARING, CONNECTING ROD

main13041-13040-03i4K#..KP61198307-198409

MARK"3",MARK 3

main13041-13040-04i4K#..KP61198307-198409

MARK"4",MARK 4

main13041-13040-05i4K#..KP61198307-198409

MARK"5",MARK 5

main13041-13040-06i4K#..KP61198307-198409

MARK"6",MARK 6

main13041-13040-07i4K#..KP61198307-198409

MARK"7",MARK 7

13101PISTON SUB-ASSY, W/PIN

main13101-13020i4K#..KP61198108-198206

STD

sub13101-13021

main13101-13021i4K#..KP61198206-198403

STD

sub13101-13022

main13101-13022i4KJ,4KU..KP61198208-198409

STD

main13101-24011i3KHJ..KP62197802-198201

main13103-13020i4K#..KP61198108-198206

O/S 0.50

sub13103-13021

main13103-13021i4KEU..KP61198206-198403

O/S 0.50

sub13103-13022

main13103-13022i4KEU..KP61198208-198409

O/S 0.50

main13103-24010i3KHJ,4KU..KP6#197802-198201

main13104-13020i4K#..KP61198108-198206

O/S 0.75

sub13104-13021

main13104-13021i4K#..KP61198206-198403

O/S 0.75

sub13104-13022

main13104-13022i4KJ,4KU..KP61198208-198409

O/S 0.75

main13104-24010i3KHJ,4KU..KP6#197802-198201

main13105-13020i4K#..KP61198108-198206

O/S 1.00

sub13105-13021

main13105-13021i4K#..KP61198206-198403

O/S 1.00

sub13105-13022

main13105-13022i4KJ,4KU..KP61198208-198409

O/S 1.00

main13105-24010i3KHJ..KP62197802-198201

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-21088i3KHJ,4K#..KP6#197802-198409

13201ROD SUB-ASSY, CONNECTING

main13201-13010i4K#..KP61197802-198409

main13201-22011i3KHJ..KP62197810-198201

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73070i3KHJ,4K#..KP6#197802-198409

13202BEARING SET, CONNECTING ROD

main13202-13010i3KHJ,4K#..KP6#197802-198307

main13203-13010i3KHJ,4K#..KP6#197802-198307

main13204-13010i3KHJ,4K#..KP6#197802-198307

main13204-13040i4K#..KP61198307-198409

main13205-13010i3KHJ,4K#..KP6#197802-198307

main13205-13040i4K#..KP61198307-198409

main13206-13010i3KHJ,4K#..KP6#197802-198307

main13206-13040i4K#..KP61198307-198409

13265BOLT, CONNECTING ROD

main13265-29015i3KHJ,4K#..KP6#197802-198409

sub13265-70010

sub90170-09001

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-09001i3KHJ,4K#..KP6#198005-198409

main90170-09195i3KHJ,4KU..KP6#197802-198005

13405FLYWHEEL SUB-ASSY

main13405-19045i3KHJ,4KU..KP6#..MTM197802-198108

N=106

main13405-19085i3KHJ..KP62198108-198201

N=106

main13405-19085i4KU..KP61..4F..DXA;4K#..KP61..MTM..(DLX,S,SE,STD,XL)198108-198409

main13405-19095i4KU..KP61..5F..DXA198108-198208

sub13405-19085

main13405-19115i4KEU..KP61198208-198409

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120i3KHJ,4K#..KP6#..MTM197802-198409

13405BBOLT, FLYWHEEL SETTING

main90913-01005i3KHJ,4K#..KP6#..MTM197802-198409

13411CRANKSHAFT

main13411-13010i4K#..KP61197802-198306

sub13411-13900

main13411-13900i4K#..KP61198306-198409

sub13411-13903

main13411-24031i3KHJ..KP62197810-198201

sub13411-24900

13453GEAR, FLYWHEEL RING

main13453-10010i4KU..KP61..4F..DXA;4K#..KP61..MTM..(DLX,S,SE,STD,XL)198108-198409

main13453-10010i3KHJ,4KU..KP6#..MTM197802-198201

N=106

main13453-13020i4KU..KP61..5F..DXA198108-198208

sub13453-10010

13471PULLEY, CRANKSHAFT

main13407-13010i4KU..KP61198108-198409

sub13470-13010

main13471-13010i3KHJ..KP62197802-198005

main13471-13020i4KEU..KP61197903-198409

main13471-13050i3KHJ,4KJ..KP6#198108-198409

main13471-24050i4KU..KP61197802-198005

W/COOLER

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05010i3KHJ,4K#..KP6#197802-198409

13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)

main90209-13003i3KHJ,4K#..KP6#197903-198409

main90209-13059i3KHJ,4KU..KP6#197802-197903

sub90209-13003

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-12050i3KHJ,4KU..KP6#197802-198011

main90105-12051i3KHJ,4K#..KP6#198011-198409

13477PULLEY, CRANKSHAFT, NO.2

main88358-16010i4KEU..KP61198005-198409

W/COOLER

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-13020i3KHJ,4KU,4KEU..KP6#198108-198409

main13521-13030i4KJ..KP61198201-198409

main13521-22010i3KHJ,4KU..KP6#197802-198108

N=18

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05010i3KHJ,4K#..KP6#197802-198409

9161160812

main91611-60812

25 parts on this diagram · 1 diagram in section
