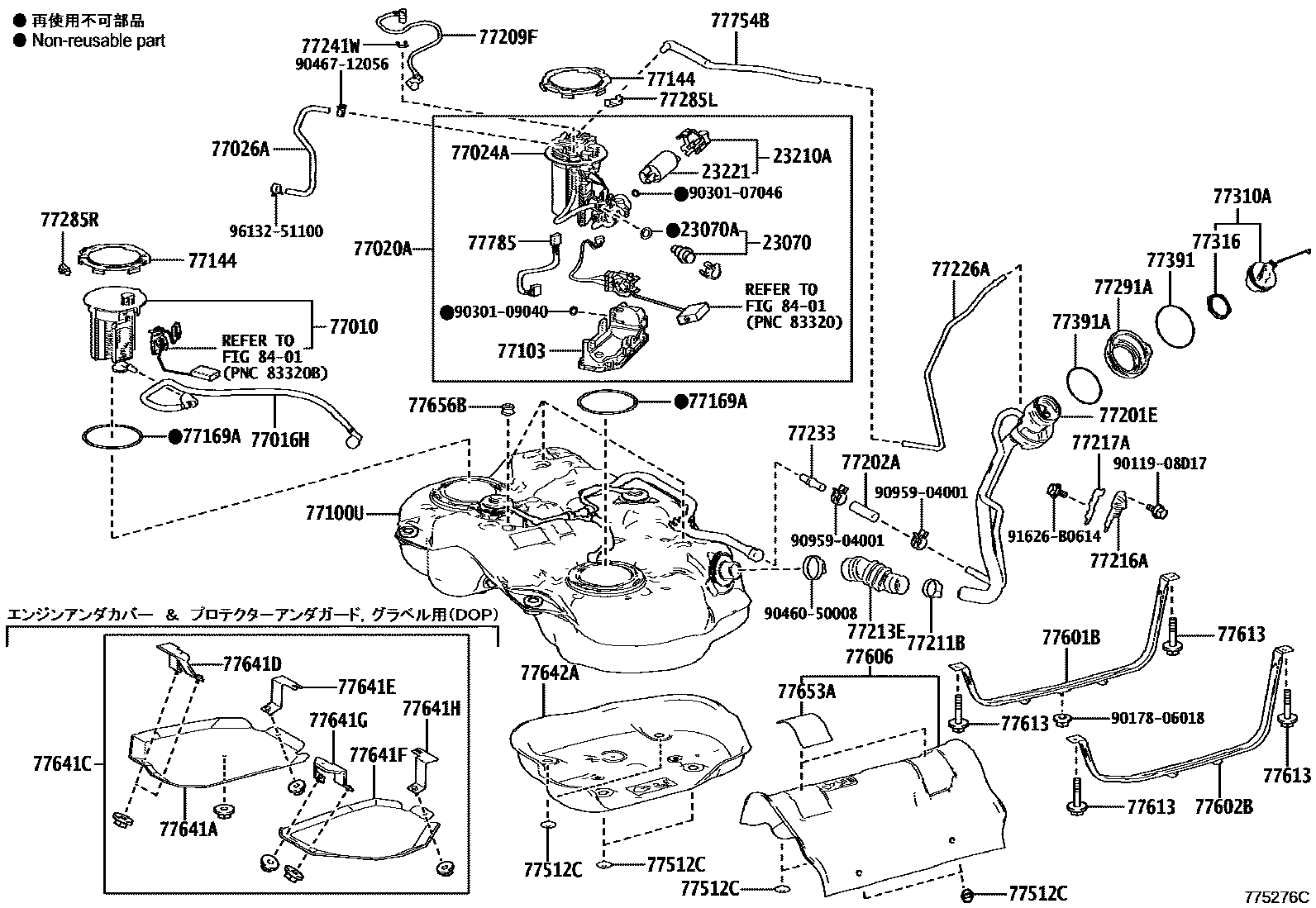

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23210APUMP ASSY, FUEL W/MOTOR & BRACKET
77010TUBE ASSY, FUEL TANK VENT
77016HTUBE SUB-ASSY, FUEL RETURN VENT
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77103SUB-TANK SUB-ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77211BCLAMP (FOR FUEL FILLER PIPE)
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77233JOINT, FUEL HOSE
77285LCLAMP, FUEL TUBE, NO.1
77285RCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77512CBRACKET, FUEL TANK
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77613BOLT, FUEL TANK BAND SET
77641APROTECTOR, FUEL TANK, NO.1
77641CPROTECTOR ASSY, FUEL TANK
77641DPROTECTOR, FUEL TANK, NO.2
77641EPROTECTOR, FUEL TANK, NO.3
77641FPROTECTOR, FUEL TANK, NO.4
77641GPROTECTOR, FUEL TANK, NO.5
77641HPROTECTOR, FUEL TANK, NO.6
77642APROTECTOR, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77656BCUSHION, FUEL TANK, NO.6
77754BHOSE, CHARCOAL CANISTER OUTLET
8401
9011908D17
main90119-08D17
9017806018
main90178-06018
9030107046
main90301-07046
9030109040
main90301-09040
9046050008
main90460-50008
9046712056
main90467-12056
9095904001
main90959-04001
91626B0614
main91626-B0614
9613251100
main96132-51100
57 parts on this diagram · 6 diagrams in section
