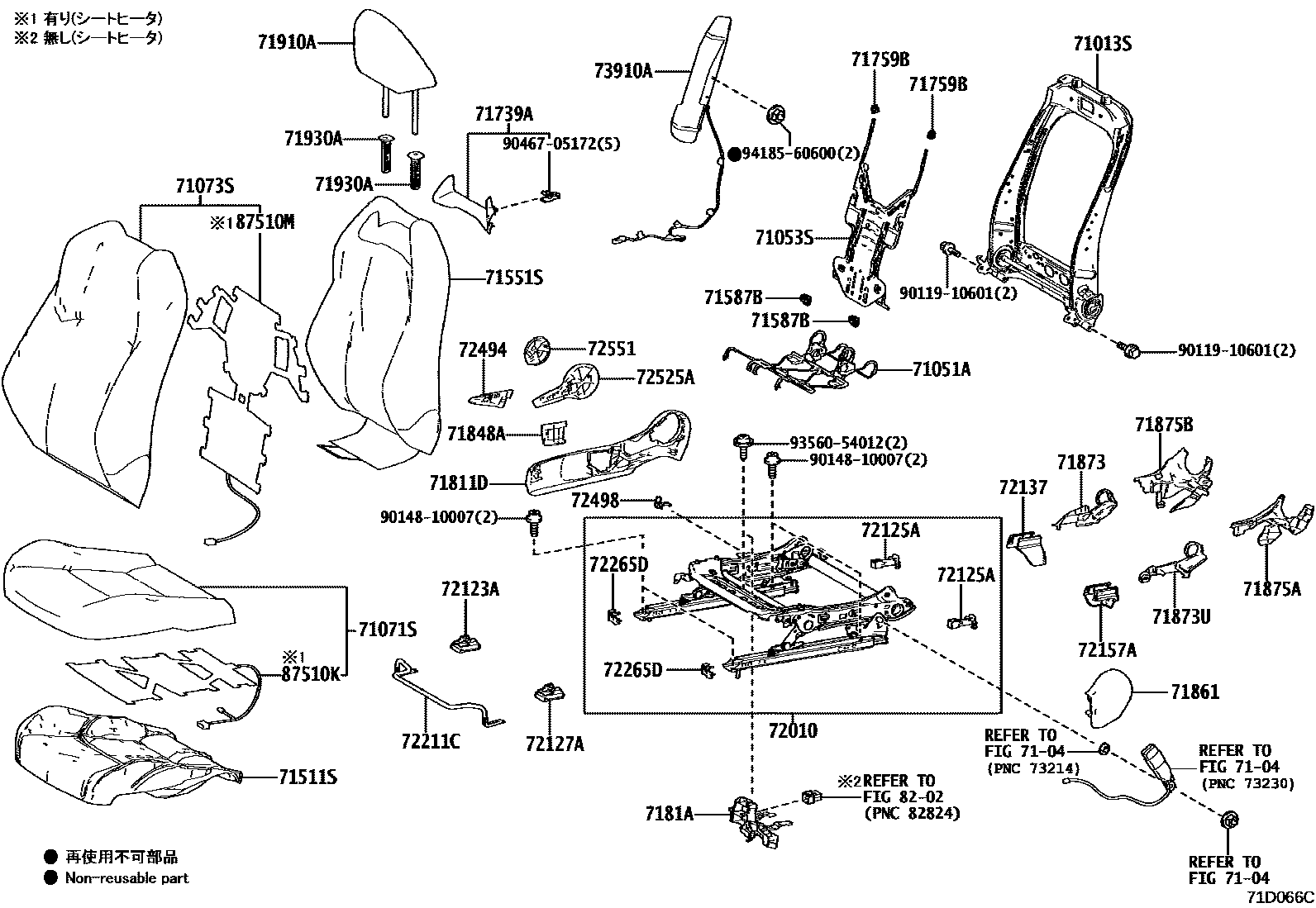

FRONT SEAT & SEAT TRACK
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71053SSPRING SUB-ASSY, FRONT SEATBACK, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
BLACK/GRAY,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
BLACK/GRAY,TRIM2#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71587BPROTECTOR, FRONT SEATBACK EDGE
71739ABEZEL, FRONT SEATBACK
71759BHOOK, FRONT SEATBACK
71811DSHIELD, FRONT SEAT CUSHION, RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
71848ACAP, SEAT ADJUSTER COVER, RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71873USHIELD, FRONT SEAT CUSHION, LOWER RH
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
71910AHEADREST ASSY, FRONT SEAT
BLACK/GRAY,TRIM2#
BLACK,TRIM2#
71930ASUPPORT ASSY, FRONT SEAT HEADREST
72010ADJUSTER ASSY, FRONT SEAT, RH
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
72125ACOVER, SEAT TRACK, UPPER REAR
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
BLACK,TRIM2#,3#
BLACK,TRIM2#
72137COVER, SEAT TRACK, OUTER RH
BLACK,TRIM2#
72157ACOVER, SEAT TRACK BRACKET, INNER RH
72211CHANDLE, SEAT TRACK ADJUSTING
72265DCOVER, SEAT TRACK UPPER RAIL
72494HANDLE, VERTICAL ADJUSTING, RH
BLACK,TRIM2#,3#
BLACK,TRIM2#
72498COVER, VERTICAL ADJUSTER BRACKET
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
72551COVER, RECLINING HINGE, NO.1
73910AAIRBAG ASSY, FRONT SEAT, RH
8202
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
87510MHEATER ASSY, FRONT SEATBACK, RH
9011910601
9014810007
9046705172
9356054012
9418560600
43 parts on this diagram · 4 diagrams in section
