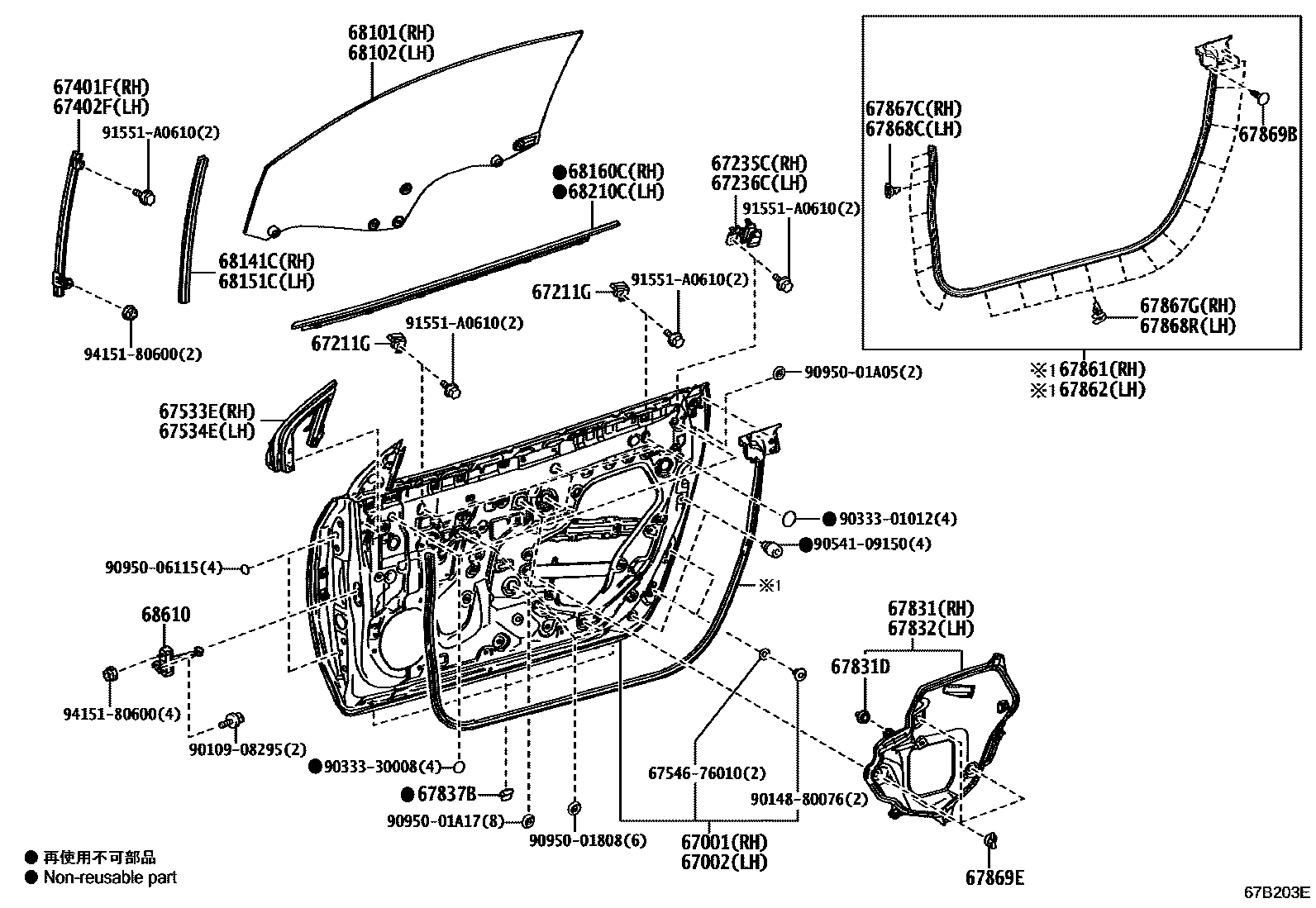

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-59025iMXPA12202008

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-59025iGXPA16202008-202404

67211GSTOP, FRONT DOOR WINDOW, UPPER

main67211-24030×4iGXPA16202404

67235CSTABILIZER, DOOR GLASS FEMALE, RH

main67235-11020iGXPA16202008-202404

67236CSTABILIZER, DOOR GLASS FEMALE, LH

main67236-11020iGXPA16202008-202404

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-52190iGXPA16202008-202404

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-52160iGXPA16202008-202404

67533ESEAL, FRONT DOOR DIVISION BAR, RH

main67533-52010iGXPA16202008-202404

67534ESEAL, FRONT DOOR DIVISION BAR, LH

main67534-52010iMXPA12202008

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-52480iGXPA16202008-202404

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206×10iGXPA16202008-202404

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-52350iGXPA16202008-202404

67837BSEAL, FRONT DOOR DUST PROOF

main67837-76030×6iGXPA16202008-202404

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-52360iGXPA16202008-202404

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-52330iGXPA16202008-202404

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-50170×7iGXPA16202404

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150×12iMXPA12202008

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-50170×7iGXPA16202008-202404

67868RRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×12iGXPA16202008-202404

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×6iGXPA16202404

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-50010×6iGXPA16202008-202404

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-52230iGXPA16,MXPA12202008-202306

main68101-52231supersedes 68101-52170iGXPA16202404

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-52160iGXPA16,MXPA12202008-202306

main68102-52161supersedes 68102-52100iMXPA12202307

68141CRUN, FRONT DOOR GLASS, RH

main68141-52350iMXPA12202008

68151CRUN, FRONT DOOR GLASS, LH

main68141-52350iGXPA16202008-202404

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-52220iGXPA16202008-202404

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-52230iGXPA16202404

68610CHECK ASSY, FRONT DOOR

main68610-52220×2iMXPA12202008

6754676010CHANNEL, VENT WINDOW DRIP, RH

main67546-76010

9010908295

main90109-08295

9014880076

main90148-80076

9033301012

main90333-01012

9033330008

main90333-30008

9054109150

main90541-09150

9095001808

main90950-01808

9095001A05

main90950-01A05

9095001A17

main90950-01A17

9095006115

main90950-06115

91551A0610

main91551-A0610

9415180600

main94151-80600

40 parts on this diagram · 2 diagrams in section
