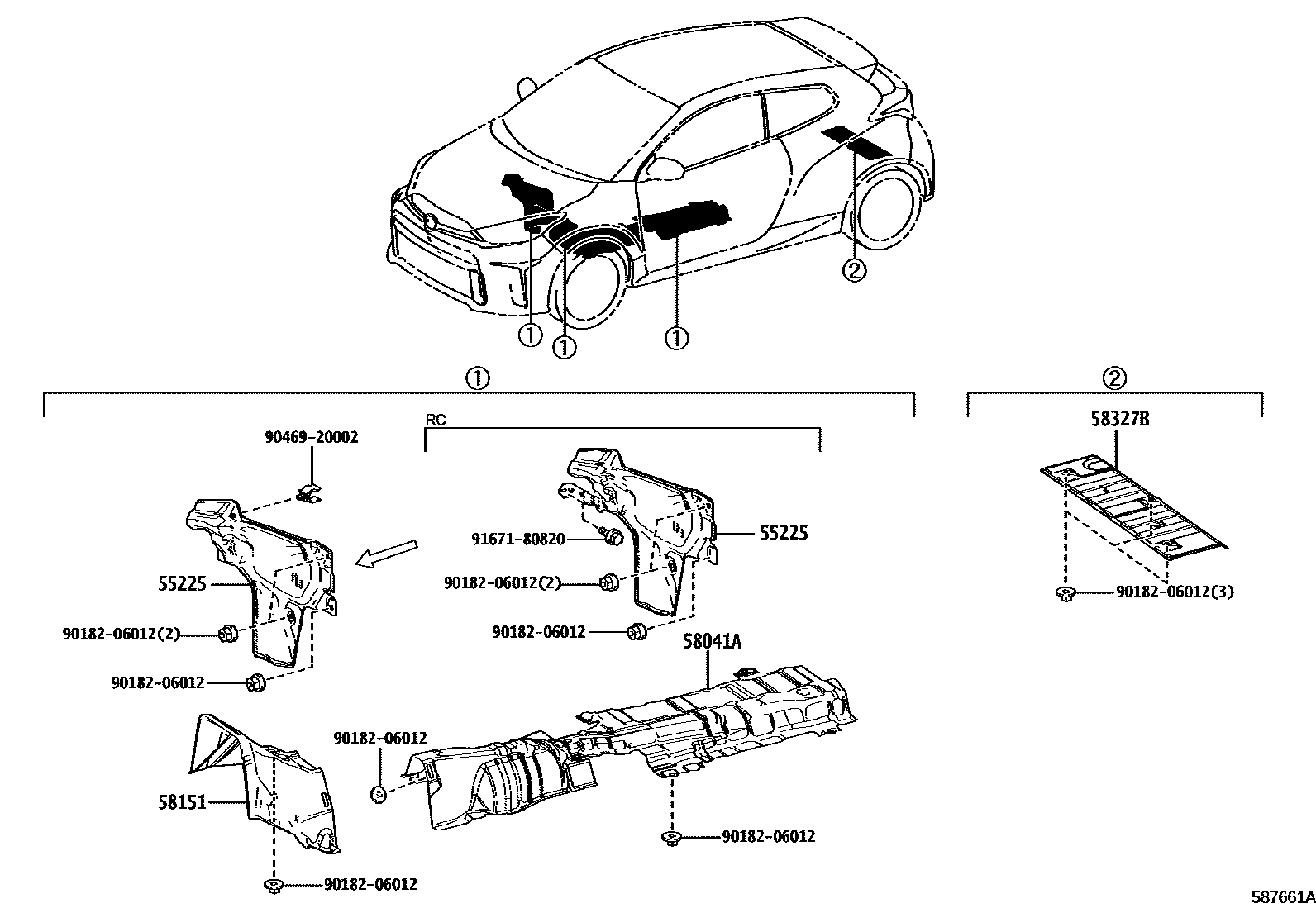

FLOOR INSULATOR

0001 1 0002 1

55225INSULATOR, DASH PANEL HEAT

main55225-52010supersedes 55225-52040iGXPA16..RZ202008-202404

main55225-K0030iMXPA12202009

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-52050iGXPA16202008-202404

main58041-52060iMXPA12202009

main58041-52090iGXPA16202404

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-52130iGXPA16202404

main58151-K0010iMXPA12202009

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52180iGXPA16202008-202404

9018206012

main90182-06012

9046920002

main90469-20002

9167180820

main91671-80820

7 parts on this diagram · 2 diagrams in section
