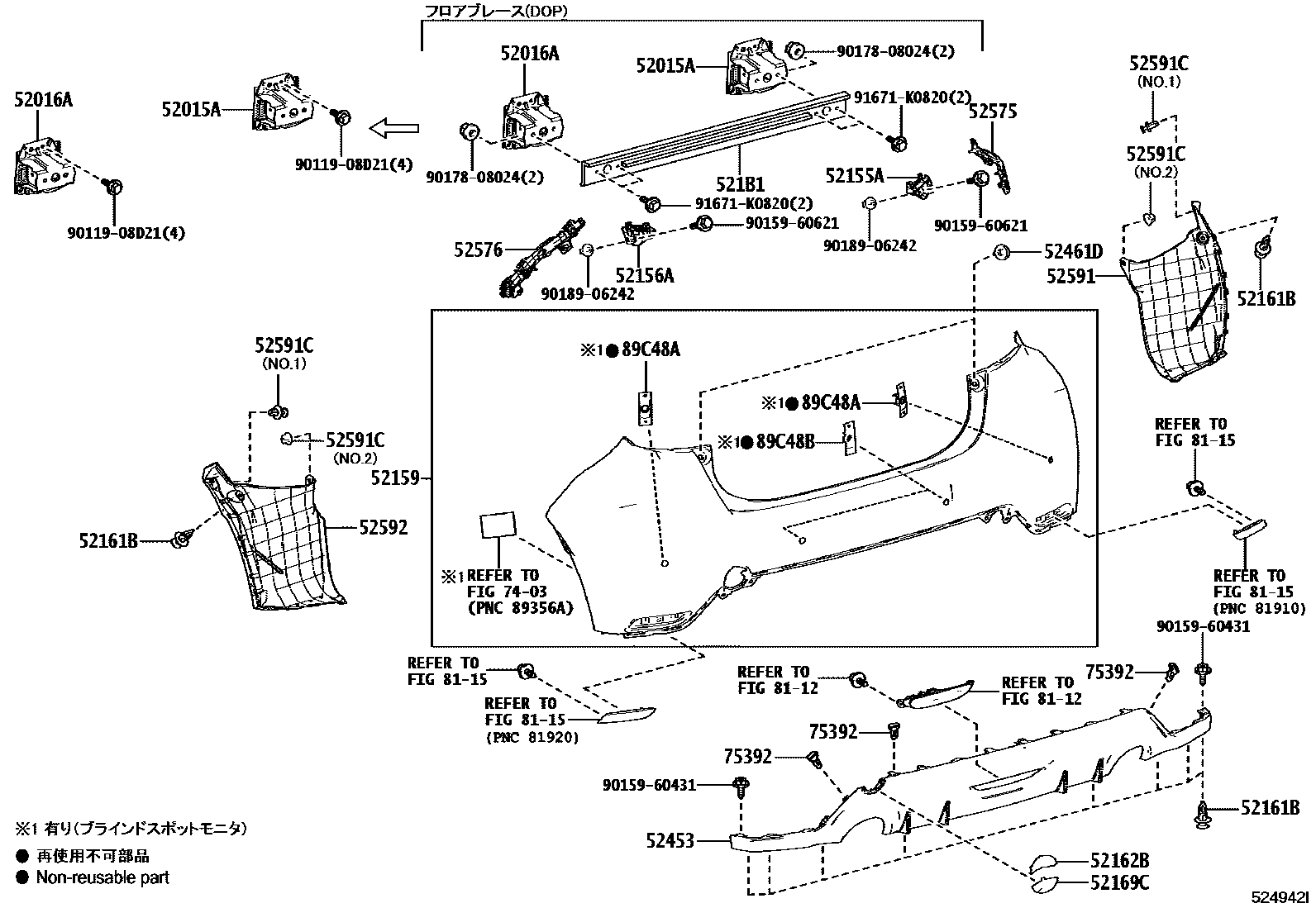

REAR BUMPER & BUMPER STAY

0001 1 0003 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-52150iGXPA16202404-202405

main52015-52151iGXPA16202406

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-52160iGXPA16202404-202405

main52016-52161iGXPA16202406

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-K0010supersedes 52155-K0010iGXPA16,MXPA12..CVT,MTM202008

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-K0010supersedes 52156-K0010iGXPA16,MXPA12..CVT,MTM202008

52159COVER, REAR BUMPER

main52159-52B70-A0iGXPA16,MXPA12202008-202212

SUPER WHITE 2,040

main52159-52B70-A2iGXPA16,MXPA12202008-202212

PLATINUM WHITE PEARL MC.,089

main52159-52B70-C0iGXPA16,MXPA12202008-202212

PRECIOUS BLACK,219

main52159-52B70-D0iGXPA16,MXPA12202008-202212

EMOTIONAL RED 2,3U5

main52159-52B71-A0iGXPA16,MXPA12..CVT,MTM202301

SUPER WHITE 2,040

main52159-52B71-A2iGXPA16,MXPA12..CVT,MTM202301

PLATINUM WHITE PEARL MC.,089

main52159-52B71-C0iGXPA16,MXPA12..CVT,MTM202301

PRECIOUS BLACK,219

main52159-52B71-D0iGXPA16,MXPA12..CVT,MTM202301

EMOTIONAL RED 2,3U5

main52159-52B70-B0iGXPA16..RC202212-202301

main52159-52B71-B0iGXPA16..RC202301-202404

main52159-5C930-A0iGXPA16..6F..RZ202404-202410

main52159-5C931-A0iGXPA16..6F..RZ202410-202505

main52159-K0913-A0iGXPA16,MXPA12..RS,RZ202008-202110

main52159-K0913-A1iGXPA16..RZ202008-202106

main52159-K0913-C0iGXPA16,MXPA12..RS,RZ202008-202110

main52159-K0913-D0iGXPA16,MXPA12..RS,RZ202008-202110

main52159-K0914-A0iGXPA16,MXPA12..RS,RZ202110-202111

main52159-K0914-A1iGXPA16,MXPA12..RS,RZ202110-202111

main52159-K0914-C0iGXPA16,MXPA12..RS,RZ202110-202111

main52159-K0914-D0iGXPA16,MXPA12..RS,RZ202110-202111

main52159-K0916-A0iGXPA16,MXPA12..RS,RZ202111-202301

main52159-K0916-A1iGXPA16,MXPA12..RS,RZ202111-202301

main52159-K0916-C0iGXPA16,MXPA12..RS,RZ202111-202301

main52159-K0916-D0iGXPA16,MXPA12..RS,RZ202111-202301

main52159-K0918-B1iGXPA16..6F..RZ202404-202409

main52159-K0925-B1iGXPA16..6F..RZ202410

52161BPIECE, REAR BUMPER

main52161-16010×10supersedes 52161-16010iGXPA16,MXPA12..CVT,MTM202008

52162BPLATE, REAR BUMPER, NO.1

main52162-52220-A0supersedes 52162-52220-A0iGXPA16,MXPA12..CVT,MTM202008

SUPER WHITE 2,040

main52162-52220-A2supersedes 52162-52220-A2iGXPA16,MXPA12..CVT,MTM202008

PLATINUM WHITE PEARL MC.,089

main52162-52220-C0supersedes 52162-52220-C0iGXPA16,MXPA12..CVT,MTM202008

PRECIOUS BLACK,219

main52162-52220-D0supersedes 52162-52220-D0iGXPA16,MXPA12..CVT,MTM202008

EMOTIONAL RED 2,3U5

main52162-52220-B0iGXPA16..RC202212-202404

main52162-52220-B2iGXPA16..6F..RZ202404

52169CCOVER, REAR BUMPER, LOWER

main52169-52120iGXPA16,MXPA12..CVT,MTM202008

main52169-52110iGXPA16..RZ202008-202404

main52169-52130iGXPA16..RZ202008-202106

main52169-52180iGXPA16..6F..RZ202404-202505

521B1BRACE, REAR BUMPER ARM TO BUMPER ARM

main521B1-52010iGXPA16202008-202404

52453GUARD, REAR BUMPER, CENTER

main52453-52120iGXPA16,MXPA12..CVT,MTM202008

main52453-52110iGXPA16..RZ202008-202404

main52453-52170iGXPA16..RZ202008-202106

main52453-52240iGXPA16..RZ202404

52461DCUSHION, REAR BUMPER

main52461-52020×2supersedes 52461-52020iGXPA16,MXPA12..CVT,MTM202008

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52240iGXPA16,MXPA12..CVT,MTM202008

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52220iGXPA16,MXPA12..CVT,MTM202008

52591SEAL, REAR BUMPER SIDE, RH

main52591-52430iGXPA16,MXPA12..CVT,MTM202008

52591CCLIP, REAR BUMPER SIDE SEAL

main90467-05170×2supersedes 90467-06121iGXPA16,MXPA12..CVT,MTM202008

main90467-06121×2iGXPA16,MXPA12..CVT,MTM202008

52592SEAL, REAR BUMPER SIDE, LH

main52592-52420iGXPA16,MXPA12..CVT,MTM202008

7403

75392RETAINER, OUTSIDE MOULDING

main75392-35220×3supersedes 75392-35220iGXPA16,MXPA12..CVT,MTM202008

8112

8115

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-52200×2iGXPA16,MXPA12..RS,RZ202008-202109

sub89348-52201

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-52200×2iGXPA16,MXPA12..RS,RZ202008-202109

sub89348-52201

9011908D21

main90119-08D21

9015960431

main90159-60431

9015960621

main90159-60621

9017808024

main90178-08024

9018906242

main90189-06242

91671K0820

main91671-K0820

28 parts on this diagram · 2 diagrams in section
