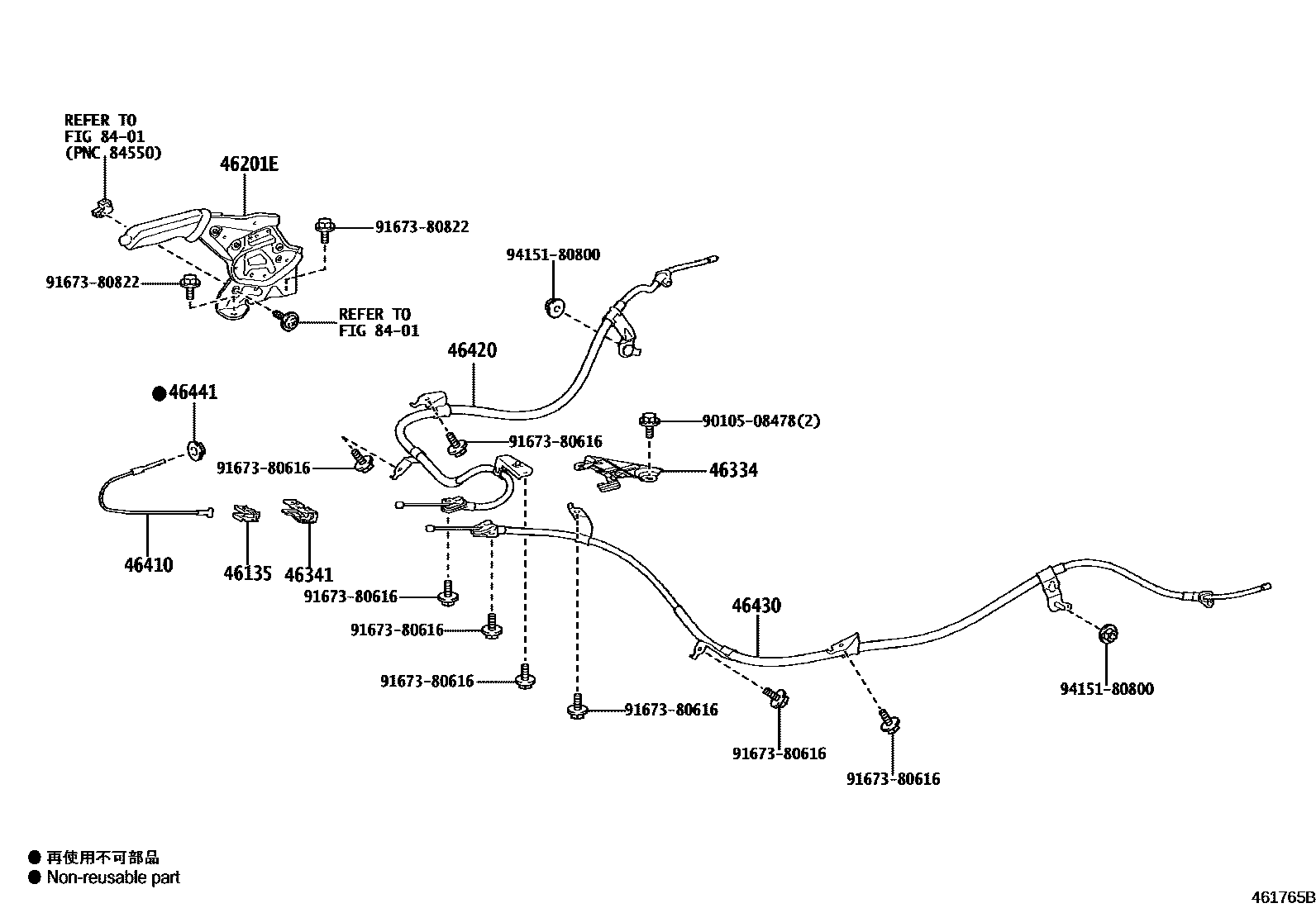

PARKING BRAKE & CABLE

0001 1������������ ����� 0002 1����� ��� 0003 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-K0010

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52190-C0supersedes 46201-52170-C0iGXPA16..RC202212-202404

main46201-52210-C0supersedes 46201-52170-C0iGXPA16..RC202412

46334PROTECTOR, INTERMEDIATE LEVER

main46334-K0010iMXPA12202008

46341EQUALIZER, PARKING BRAKE

main46341-K0010

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-52160iGXPA16..RC202412

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52500iGXPA16202008-202404

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52500iGXPA16202008-202404

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003

8401

9010508478

main90105-08478

9167380616

main91673-80616

9167380822

main91673-80822

9415180800

main94151-80800

13 parts on this diagram · 3 diagrams in section
