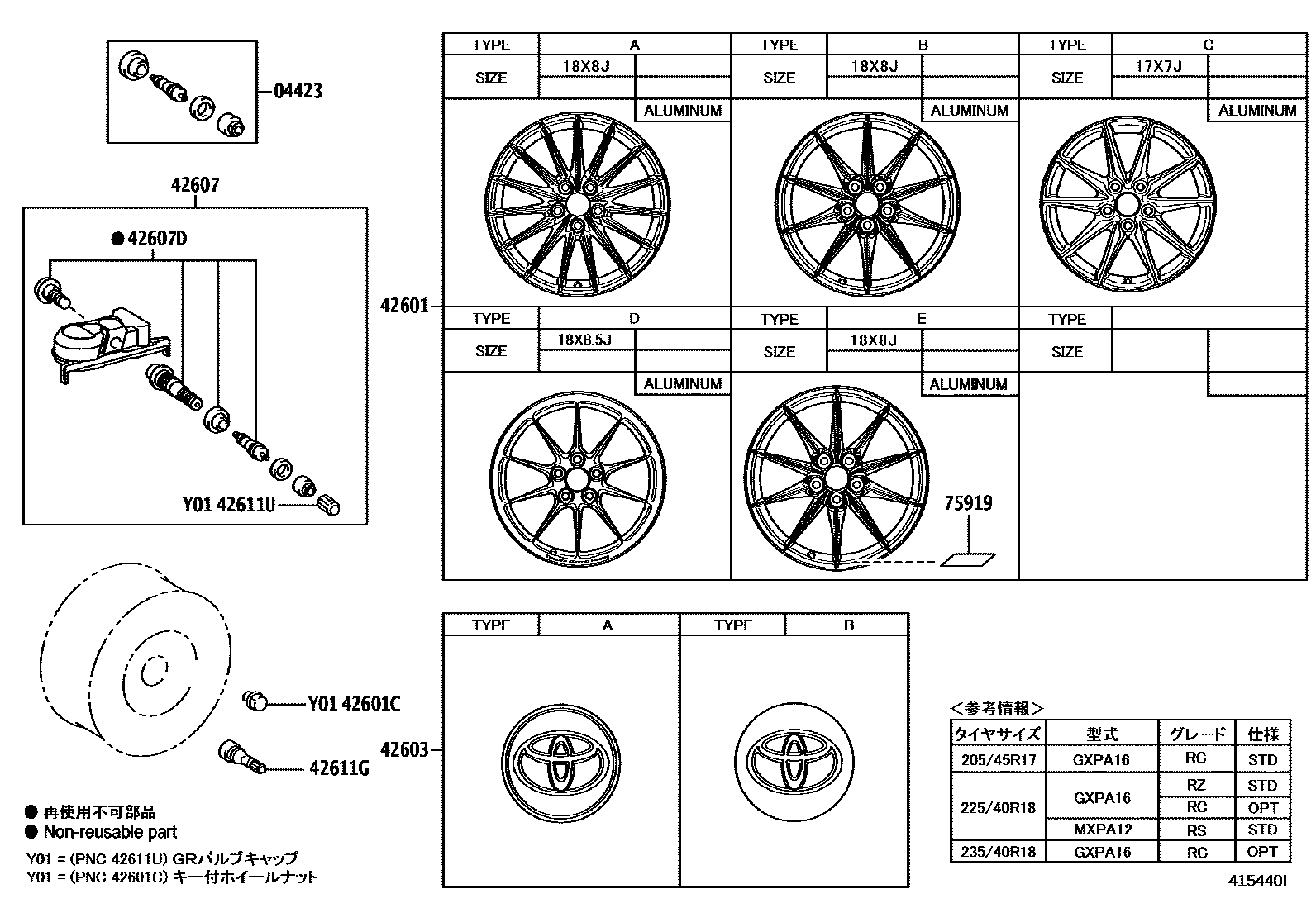

DISC WHEEL & WHEEL CAP

0001 1��������� & ������������� 0002 1���������

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060×4iGXPA16..RZ202404

42601WHEEL, DISC

main42611-52D00×4supersedes 42611-52C90iGXPA16..RZ202205-202404

main42611-52D40×4supersedes 42611-52C90iGXPA16..RZ202008-202104

main42611-52D70×4supersedes 42611-52C80iGXPA16..RC202212-202404

main42611-52E80×4supersedes 42611-52C90iGXPA16..6F..RZ202404-202505

main42611-52E90×4supersedes 42611-52C90iGXPA16..6F..RZ202404-202505

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iGXPA16202008-202404

main90942-01115×20supersedes 90942-01033iGXPA16..RC202207-202404

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-42130×4iGXPA16202404

main42603-48150×4supersedes 42603-42130iGXPA16..RC202207-202404

main42603-52200×4iGXPA16..RZ202107-202404

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-19005×4iGXPA16..RZ202404

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05044×4iGXPA16..RZ202404-202505

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iMXPA12202008

42611UCAP, TIRE VALVE

main90942-05039×4iGXPA16..RZ202404-202505

75919STICKER, WHEEL DECOR

main75919-52010×4iGXPA16..6F..RZ202404-202505

9 parts on this diagram · 2 diagrams in section
