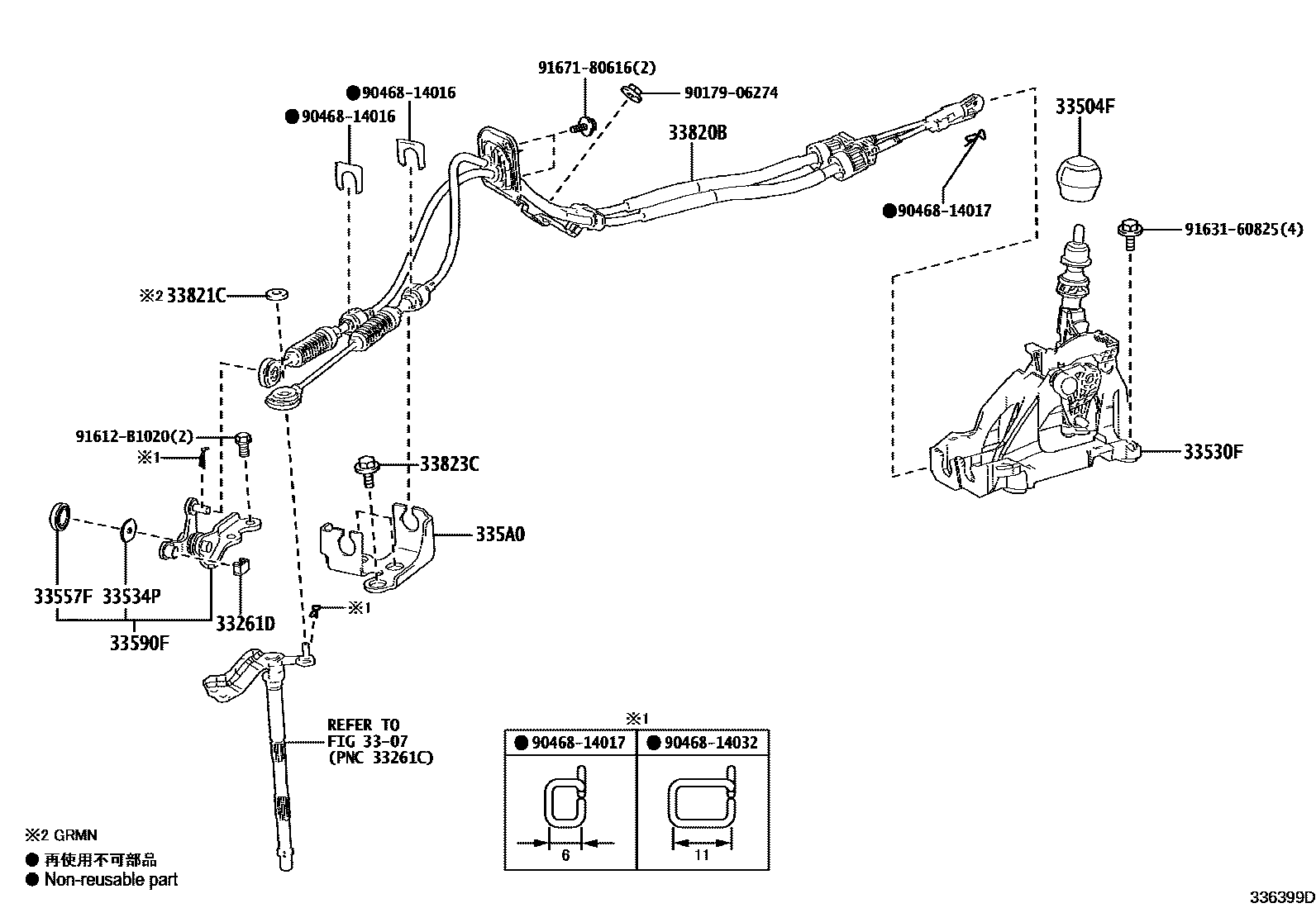

SHIFT LEVER & RETAINER
3307
33261DBUSH (FOR SHIFT & SELECT LEVER)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)
33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)
33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)
335A0BRACKET ASSY, CONTROL CABLE
33820BCABLE ASSY, TRANSMISSION CONTROL
33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
9017906274
main90179-06274
9046814016
main90468-14016
9046814017
main90468-14017
9046814032
main90468-14032
91612B1020
main91612-B1020
9163160825
main91631-60825
9167180616
main91671-80616
19 parts on this diagram · 3 diagrams in section
