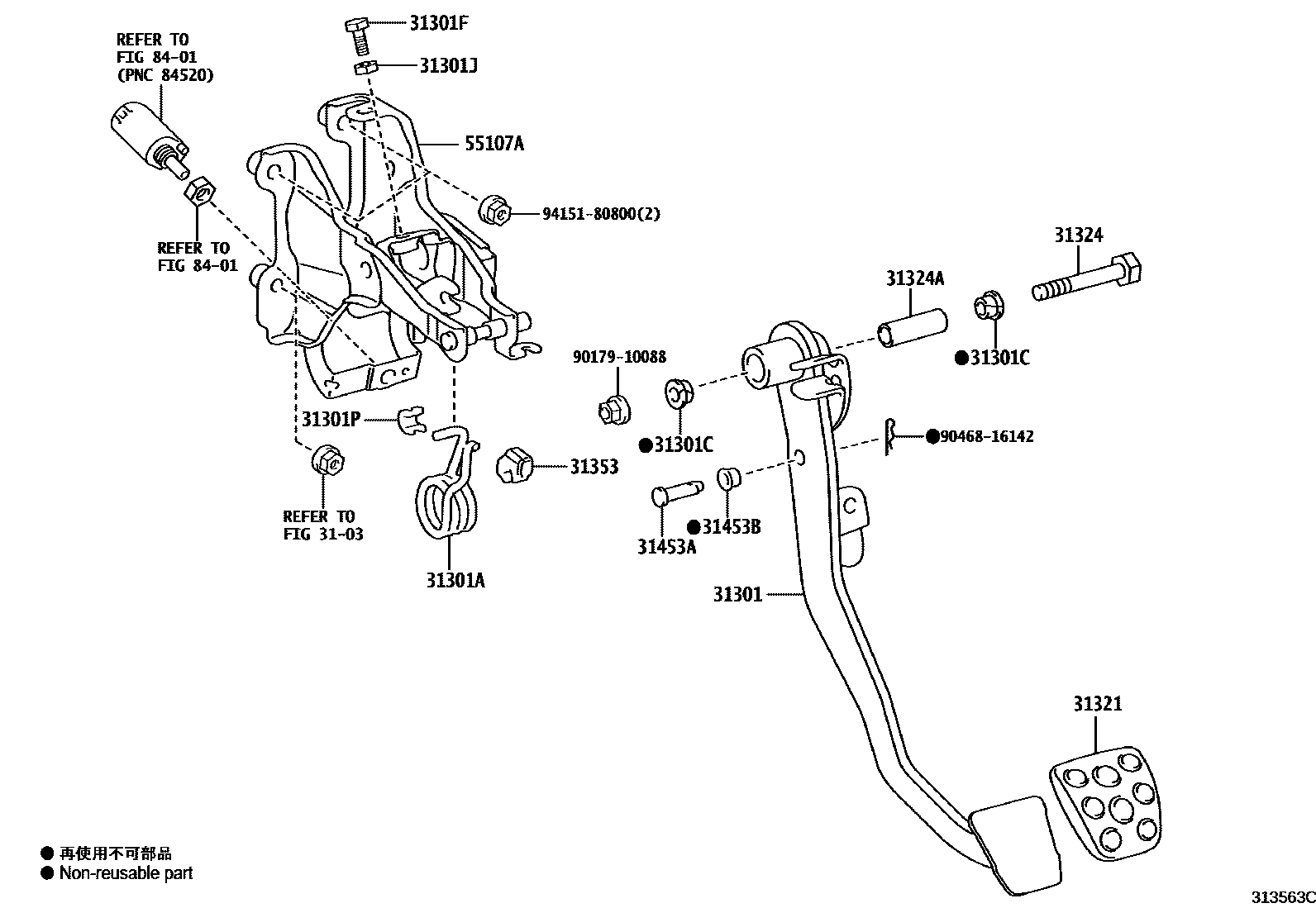

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1��������� 0002 1��������

3103

31301PEDAL SUB-ASSY, CLUTCH

main31301-0W050iGXPA16202008-202404

main31301-0W060iGXPA16..6F202404

31301ASPRING(FOR CLUTCH PEDAL)

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iGXPA16202008-202404

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iGXPA16202008-202404

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-41000iGXPA16202008-202404

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iGXPA16..6F202404

31321PAD, CLUTCH PEDAL

main31321-10050supersedes 31321-52040iGXPA16..RZ202008-202404

31324SHAFT, CLUTCH PEDAL

main90101-10039iGXPA16202008-202404

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iGXPA16202008-202404

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iGXPA16202008-202404

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iGXPA16202008-202404

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iGXPA16202008-202404

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0D460iGXPA16202008-202404

8401

9017910088

main90179-10088

9046816142

main90468-16142

9415180800

main94151-80800

18 parts on this diagram · 2 diagrams in section
