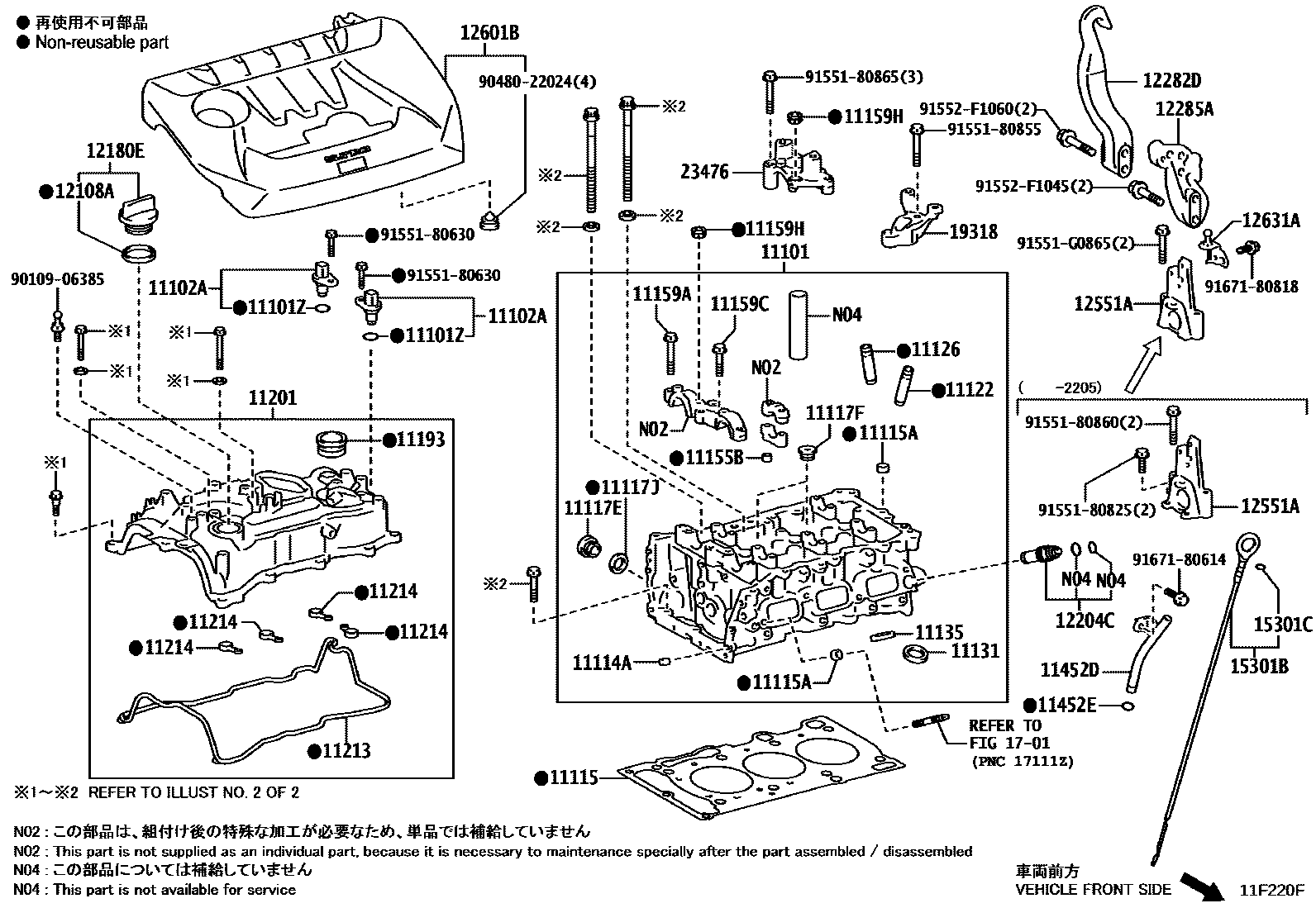

CYLINDER HEAD
11101ZO RING, CAM POSITION SENSOR
11102ASENSOR, CAMSHAFT POSITION
11114APIN, STRAIGHT
11115GASKET, CYLINDER HEAD
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
11452DGUIDE, OIL LEVEL GAGE
11452ERING, O(FOR OIL LEVEL GAGE GUIDE)
12108AGASKET(FOR OIL FILLER CAP)
12180ECAP ASSY, OIL FILLER
12204CVALVE SUB-ASSY, VENTILATION
12282DHANGER, ENGINE, NO.2
12285ABRACKET, ENGINE HANGER
12551ABRACKET, VACUUM PUMP, NO.1
12601BCOVER SUB-ASSY, ENGINE, NO.1
12631ABRACKET, ENGINE COVER
15301BGAGE SUB-ASSY, OIL LEVEL
15301CRING, O(FOR OIL LEVEL GAGE)
1701
19318HOLDER, CAM ANGLE SENSOR
23476HOUSING, FUEL PUMP LIFTER
9010906385
main90109-06385
9048022024
main90480-22024
9155180630
main91551-80630
9155180825
main91551-80825
9155180855
main91551-80855
9155180860
main91551-80860
9155180865
main91551-80865
91551G0865
main91551-G0865
91552F1045
main91552-F1045
91552F1060
main91552-F1060
9167180614
main91671-80614
9167180818
main91671-80818
48 parts on this diagram · 4 diagrams in section
