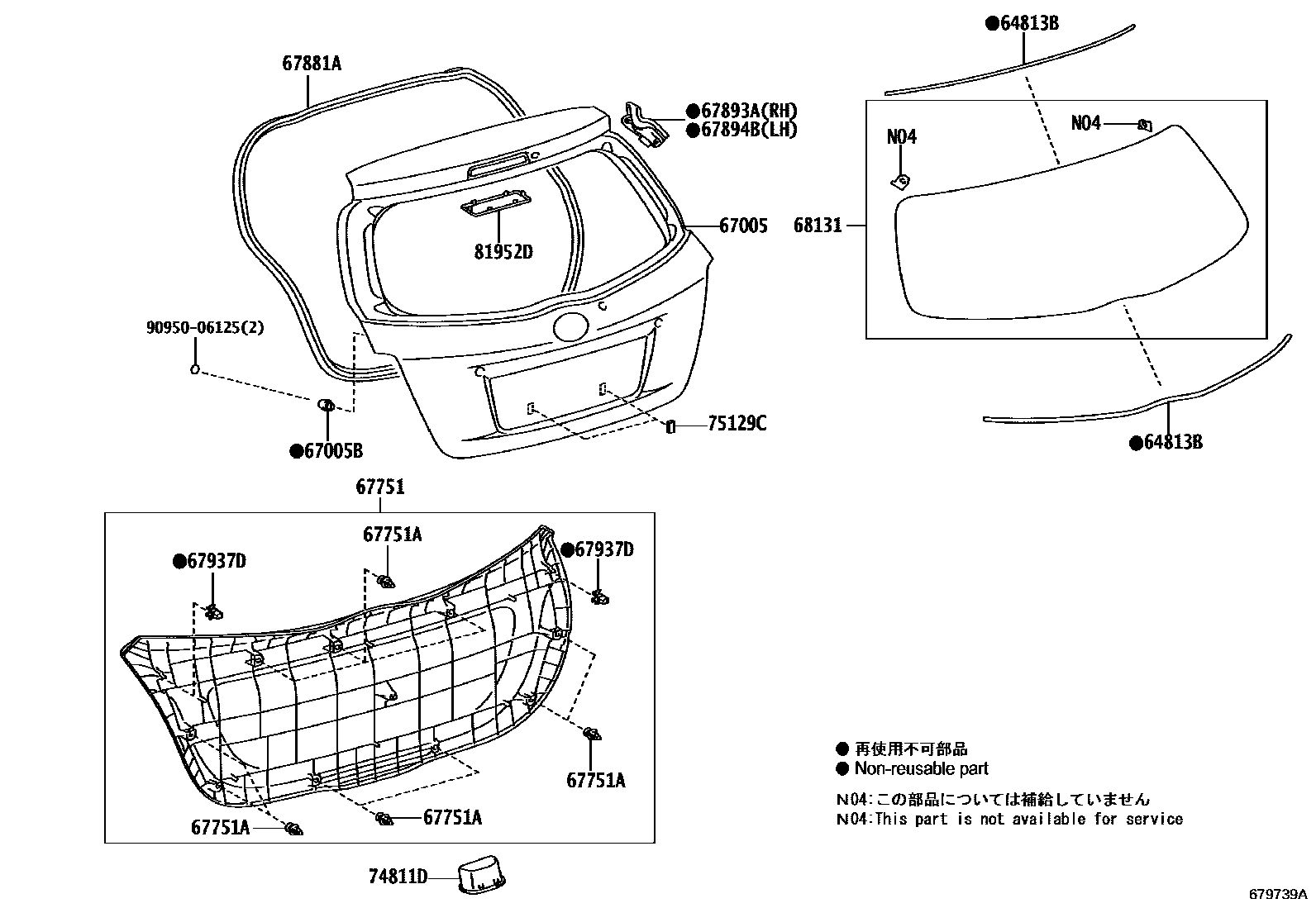

BACK DOOR PANEL & GLASS

64813BDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iNSP131201711

67005PANEL SUB-ASSY, BACK DOOR

main67005-0D750iNSP131201711

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09146iNSP131201711

67751BOARD, BACK DOOR TRIM

main67751-0D040-C1iNSP131201711

EU BLACK,TRIM2#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-10161iNSP131201711

67881AWEATHERSTRIP, BACK DOOR

main67881-0D220iNSP131201711

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-0D030iNSP131201711

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-0D030iNSP131201711

67937DRETAINER, DOOR TRIM

main67771-58010iNSP131201711

68131GLASS, BACK DOOR

main68105-0D140iNSP131201711

74811DHANDLE, DOOR PULL

main74811-13010-C2iNSP131201711

BLACK,TRIM2#

sub74811-13010

75129CCUSHION, REAR LICENCE PLATE

main75129-0D060iNSP131201711

81952DCOVER, REAR LAMP

main81952-0D050iNSP131201711

9095006125

main90950-06125

14 parts on this diagram · 1 diagram in section
