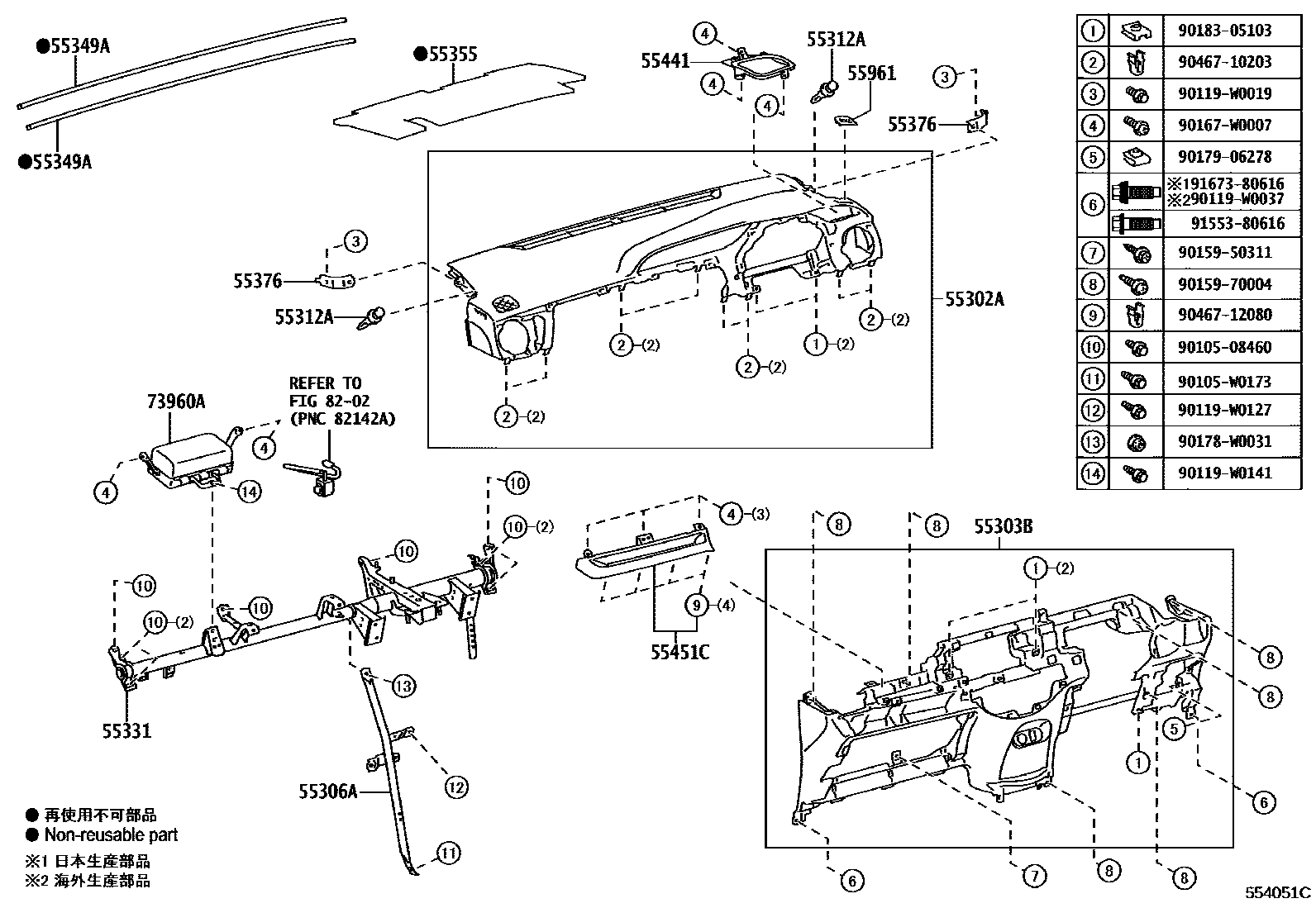

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0D190-C1iNSP131201711

EU BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0D160-C1iNSP131201711

EU BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D300iNSP131201711

55312ACLIP, INSTRUMENT PANEL

main52161-02030iNSP131201711

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0D551iNSP131201711

55349ACUSHION, INSTRUMENT PANEL

main55355-0D031iNSP131201711

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0D470iNSP131201711

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-0D030iNSP131201711

55441BOX, INSTRUMENT PANEL

main55441-0D240-C1iNSP131201711

EU BLACK,TRIM2#

55451CBOX, INSTRUMENT PANEL, NO.1

main55451-0D140-C1iNSP131201711

EU BLACK,TRIM2#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-0D040-C1iNSP131201711

EU BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0D111iNSP131201711-201801

main73960-0D112iNSP131201802

8202

9010508460

main90105-08460

90105W0173

main90105-W0173

90119W0019

main90119-W0019

90119W0037

main90119-W0037

90119W0127

main90119-W0127

90119W0141

main90119-W0141

9015950311

main90159-50311

9015970004

main90159-70004

90167W0007

main90167-W0007

90178W0031

main90178-W0031

9017906278

main90179-06278

9018305103

main90183-05103

9046710203

main90467-10203

9046712080

main90467-12080

9155380616

main91553-80616

9167380616

main91673-80616

29 parts on this diagram · 4 diagrams in section
