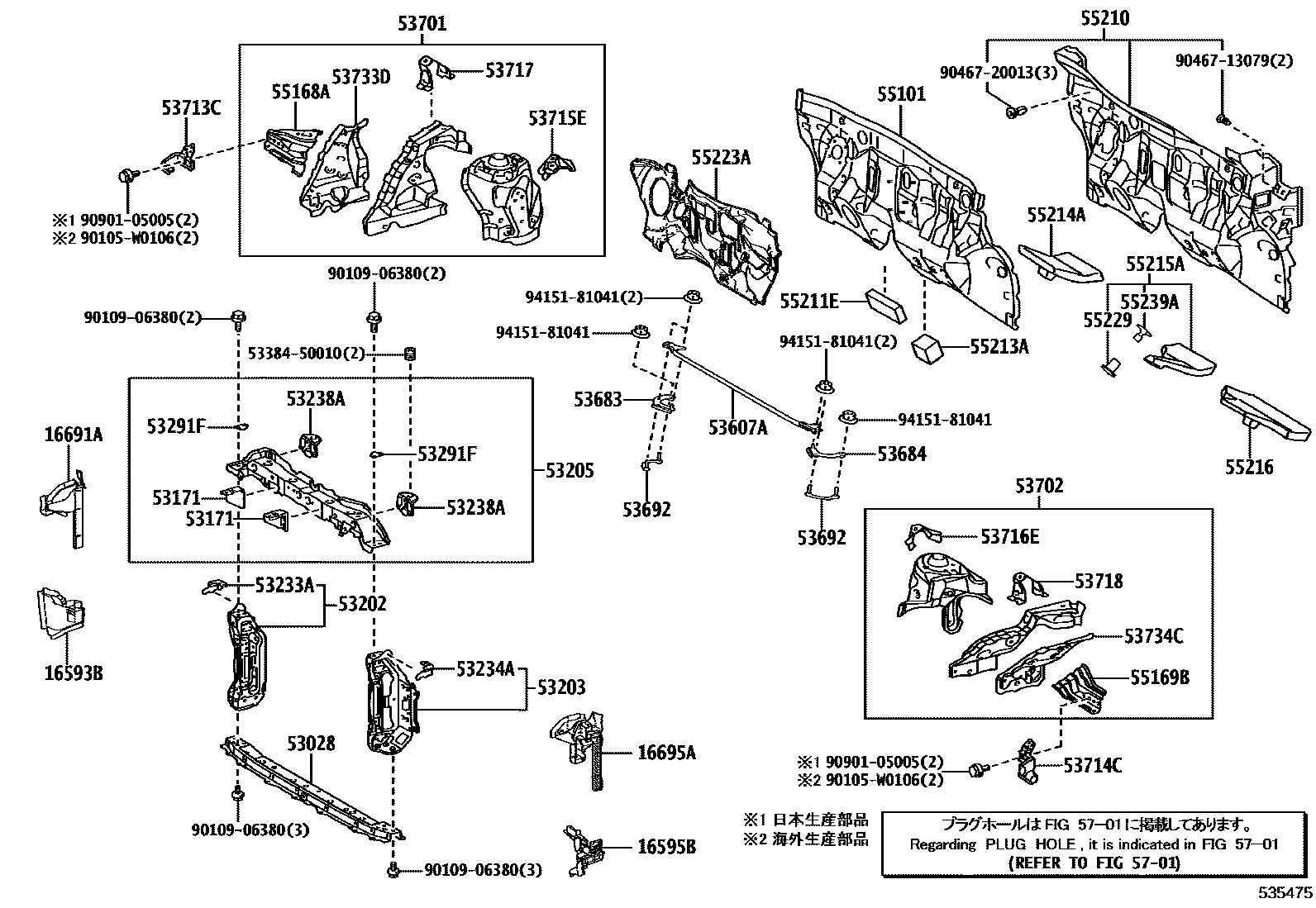

FRONT FENDER APRON & DASH PANEL
16593BGUIDE, RADIATOR AIR, NO.1 RH
16595BGUIDE, RADIATOR AIR, NO.1 LH
16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH
16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH
53028SUPPORT SUB-ASSY, RADIATOR, LOWER
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53233ABRACKET, HEADLAMP, NO.1 RH
53234ABRACKET, HEADLAMP, NO.1 LH
53238ABRACKET, HOOD BUMPER MOUNTING
53291FPLATE, RADIATOR SUPPORT
53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
53683BRACKET, FRONT SUSPENSION UPPER TO COWL BRACE, RH
53684BRACKET, FRONT SUSPENSION UPPER TO COWL BRACE, LH
53692BRACKET, FRONT SUSPENSION UPPER BRACE
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
55101PANEL SUB-ASSY, DASH
sub55101-0D401
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55210INSULATOR ASSY, DASH PANEL
55211ESILENCER, FRONT PANEL
55213APAD, DASH PANEL SILENCER
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55216PAD, DASH PANEL INSULATOR, NO.4
55223AINSULATOR, DASH PANEL, OUTER
55229PLATE, DASH PANEL INSULATOR, NO.4
55239APLATE, DASH PANEL INSULATOR, NO.3
5701
5338450010BAR, HOOD SILENCER SUPPORT
main53384-50010
90105W0106
main90105-W0106
9010906380
main90109-06380
9046713079
main90467-13079
9046720013
main90467-20013
9090105005
main90901-05005
9415181041
main94151-81041
47 parts on this diagram · 1 diagram in section
