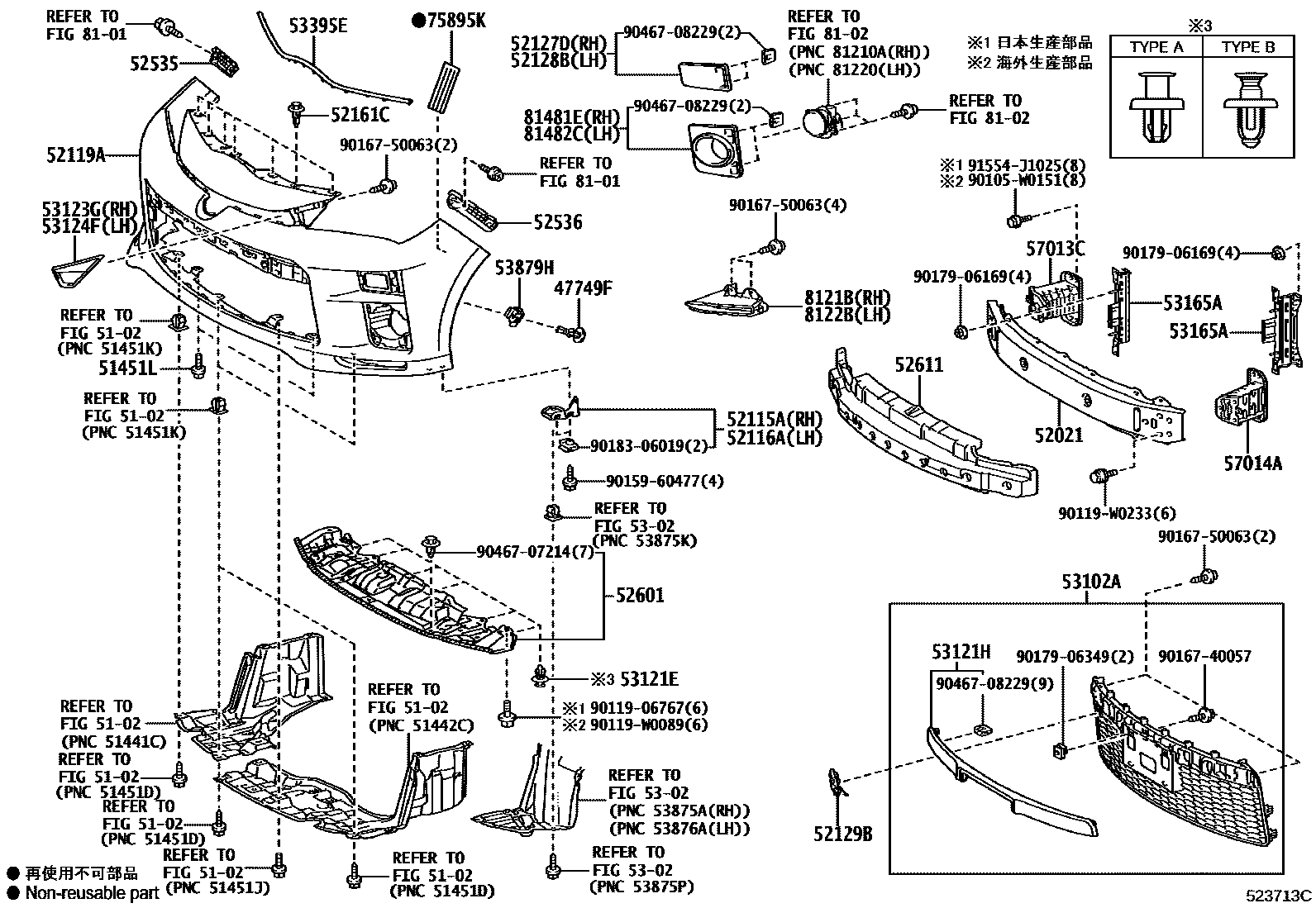

FRONT BUMPER & BUMPER STAY

47749FCLIP, PIN HOLD

main47749-50090iNSP131201711

5102

51451LBOLT, NO.1

main90119-06A13iNSP131201711-201804

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0D070iNSP131201711

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-52120iNSP131201711

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-52100iNSP131201711

52119ACOVER, FRONT BUMPER

main52119-5C928iNSP131201711

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-52690iNSP131201711

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-52150iNSP131201711

52129BCOVER, FRONT BUMPER, LOWER

main52129-52220iNSP131201711

52161CPIECE, FRONT BUMPER

main52161-16010iNSP131201711

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52111iNSP131201711

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52081iNSP131201711

52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY

main52601-0D040iNSP131201711

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52320iNSP131201711

5302

53102AGRILLE SUB-ASSY, RADIATOR, LWR

main53102-52120iNSP131201711

53121ECLIP(FOR FRONT BUMPER), NO.1

main51454-48010iNSP131201711

main90467-W0014-C0iNSP131201711

53121HMOULDING, RADIATOR GRILLE, NO.1

main53121-52260iNSP131201711

53123GMOULDING, RADIATOR GRILLE SIDE, RH

main53123-52160iNSP131201711

53124FMOULDING, RADIATOR GRILLE SIDE, LH

main53124-52160iNSP131201711

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-0D060iNSP131201711

53395ESEAL, HOOD TO FRONT END PANEL

main53395-52130iNSP131201711

53879HRETAINER, FRONT FENDER LINER

main53879-50020iNSP131201711

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0D041iNSP131201711

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0D030iNSP131201711

75895KTAPE, MOULDING, NO.1

main75895-30050iNSP131201711

8101

8102

8121BBRACKET, ILLUMINATION LAMP, RH

main8121B-52030iNSP131201711

8122BBRACKET, ILLUMINATION LAMP, LH

main8122B-52030iNSP131201711

81481ECOVER, FOG LAMP, RH

main81481-52760iNSP131201711

81482CCOVER, FOG LAMP, LH

main81482-52650iNSP131201711

90105W0151

main90105-W0151

9011906767

main90119-06767

90119W0089

main90119-W0089

90119W0233

main90119-W0233

9015960477

main90159-60477

9016740057

main90167-40057

9016750063

main90167-50063

9017906169

main90179-06169

9017906349

main90179-06349

9018306019

main90183-06019

9046707214

main90467-07214

9046708229

main90467-08229

91554J1025

main91554-J1025

46 parts on this diagram · 1 diagram in section
