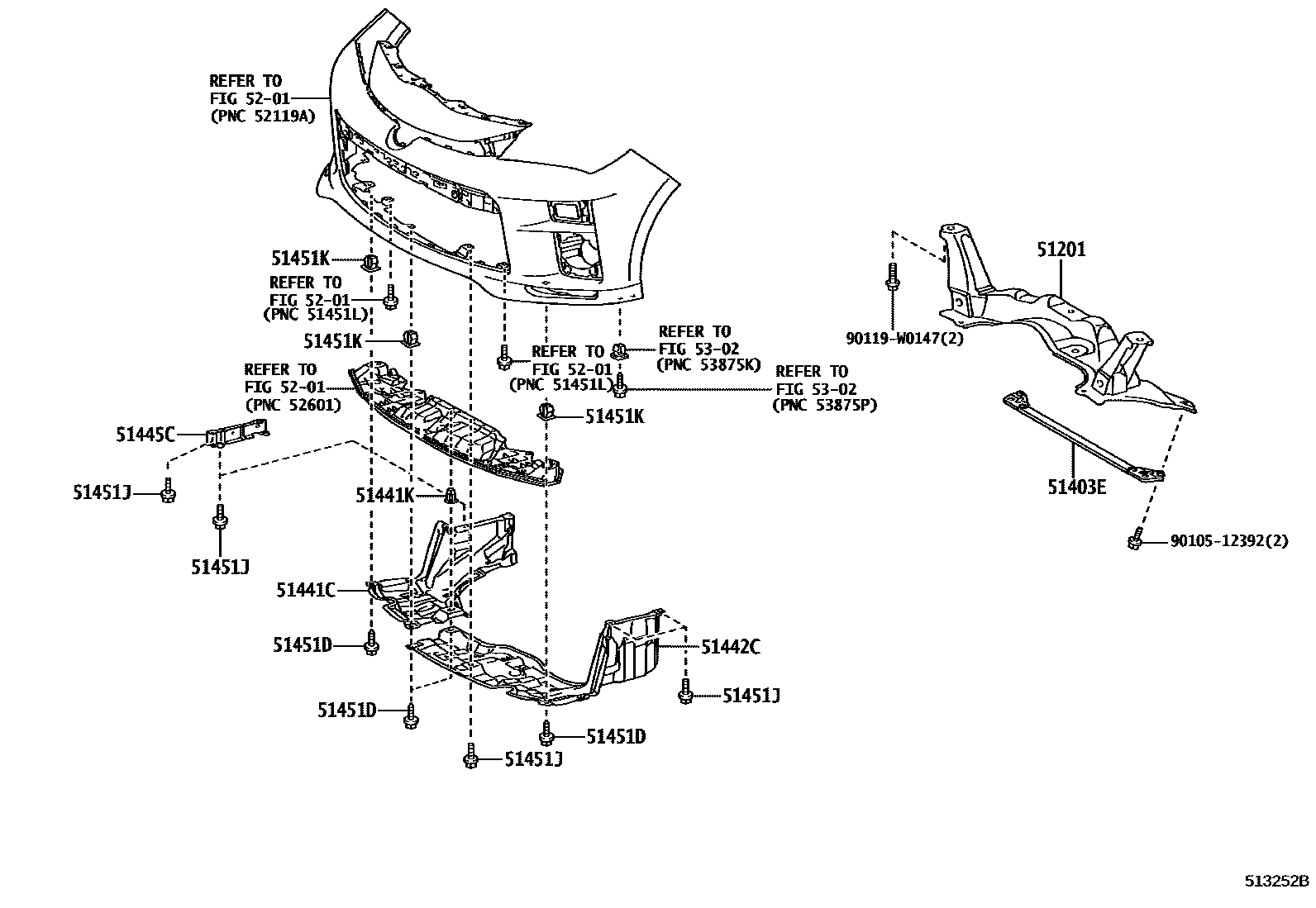

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0D106iNSP131201711

sub51201-52097

51403EBRACE SUB-ASSY, FRONT SUSPENSION MEMBER

main51403-WY050iNSP131201711

51441CCOVER, ENGINE UNDER, RH

main51441-52350iNSP131201711

51441KGROMMET(FOR ENGINE UNDER COVER)

main90189-06076iNSP131201711

51442CCOVER, ENGINE UNDER, LH

main51442-0D141iNSP131201711

51445CBRACKET, ENGINE REAR COVER

main51445-52030iNSP131201711

51451DSCREW, NO.1

main90159-W0007iNSP131201711-201804

51451JBOLT, NO.1

main90119-W0089iNSP131201711-201804

51451KGROMMET, SCREW, NO.1

main90189-06237iNSP131201711-201804

5201

5302

9010512392

main90105-12392

90119W0147

main90119-W0147

13 parts on this diagram · 1 diagram in section
