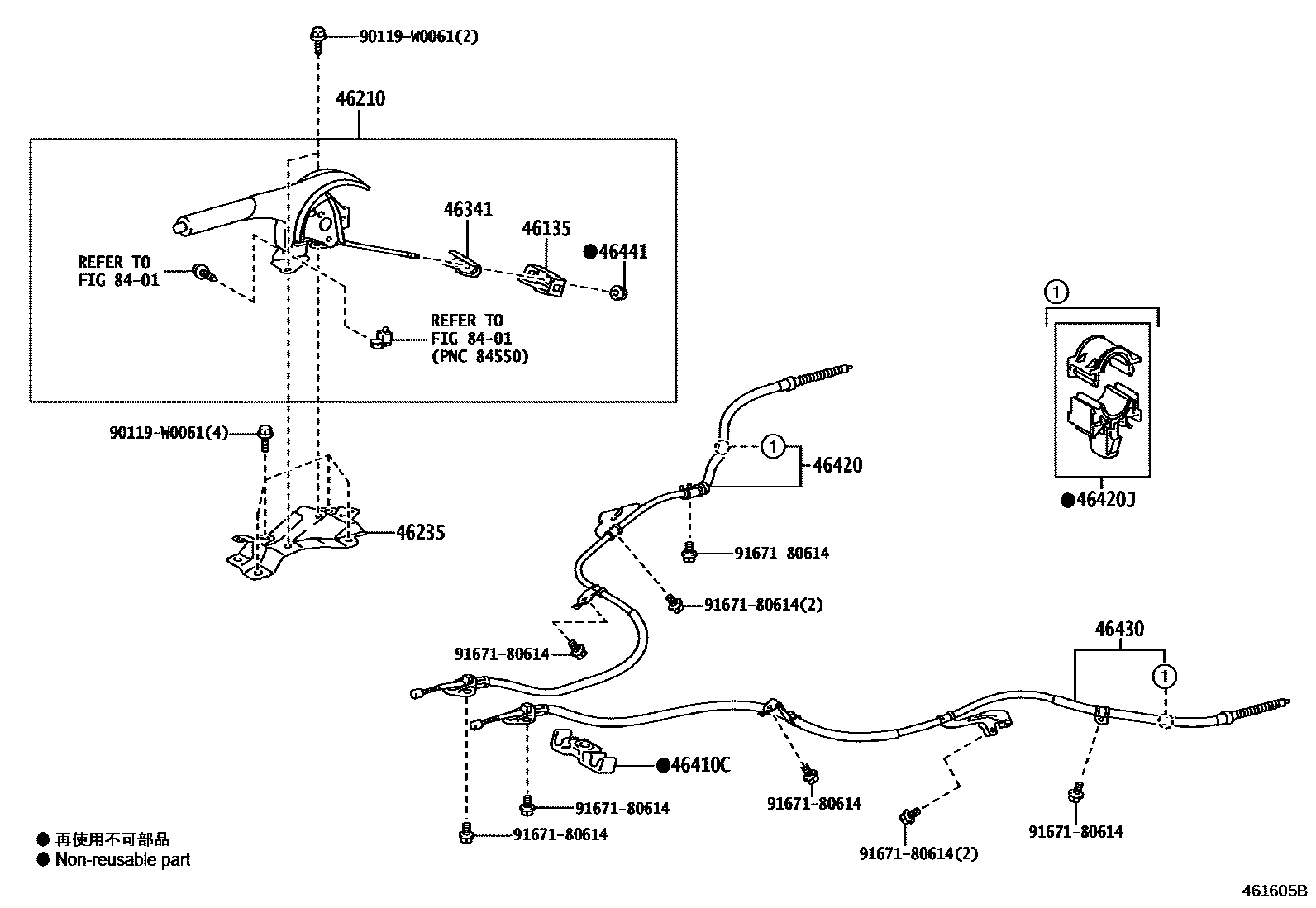

PARKING BRAKE & CABLE

46135STOPPER, PARKING BRAKE CABLE END

main46135-0D020iNSP131201711

46210LEVER ASSY, PARKING BRAKE

main46210-0D251-B5iNSP131201711

GRAY NO.205/SATIN CHROME,TRIM2#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-0D060iNSP131201711

46341EQUALIZER, PARKING BRAKE

main46341-0D060iNSP131201711

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0D010iNSP131201711

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D210iNSP131201711

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52030iNSP131201711

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D210iNSP131201711

46441NUT, WIRE ADJUSTING, NO.1

main46441-0D060iNSP131201711

8401

90119W0061

main90119-W0061

9167180614

main91671-80614

12 parts on this diagram · 1 diagram in section
