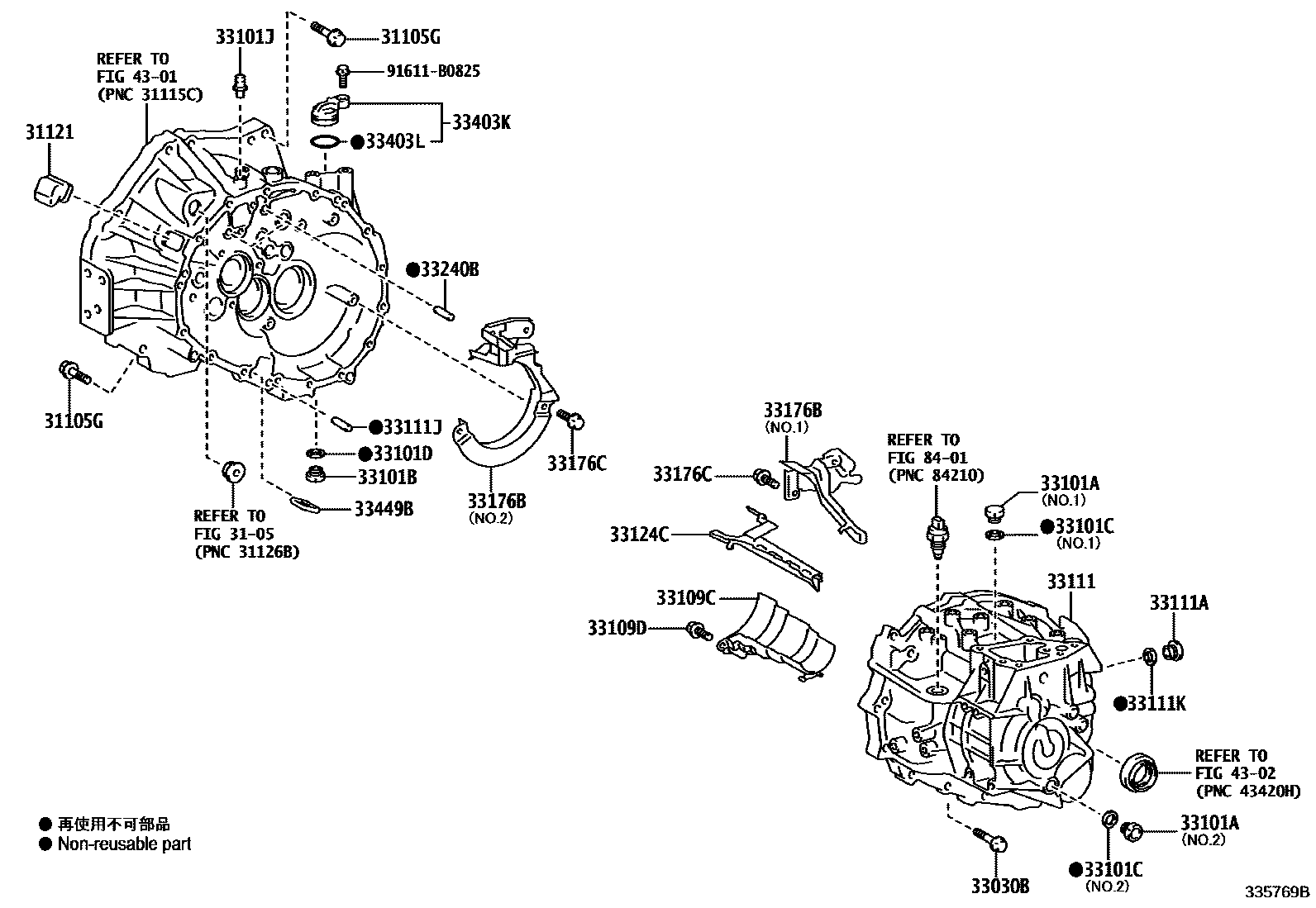

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
3105
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
31121COVER, CLUTCH HOUSING, NO.1
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
33101JPLUG, BREATHER
33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
sub33109-52011
33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
33111CASE, MANUAL TRANSMISSION
sub33111-12293
33111APLUG, MANUAL TRANSMISSION CASE
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
33111KGASKET(FOR TRANSMISSION CASE)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)
33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403LRING, O
33449BMAGNET, TRANSMISSION
4301
4302
8401
91611B0825
main91611-B0825
26 parts on this diagram · 1 diagram in section
