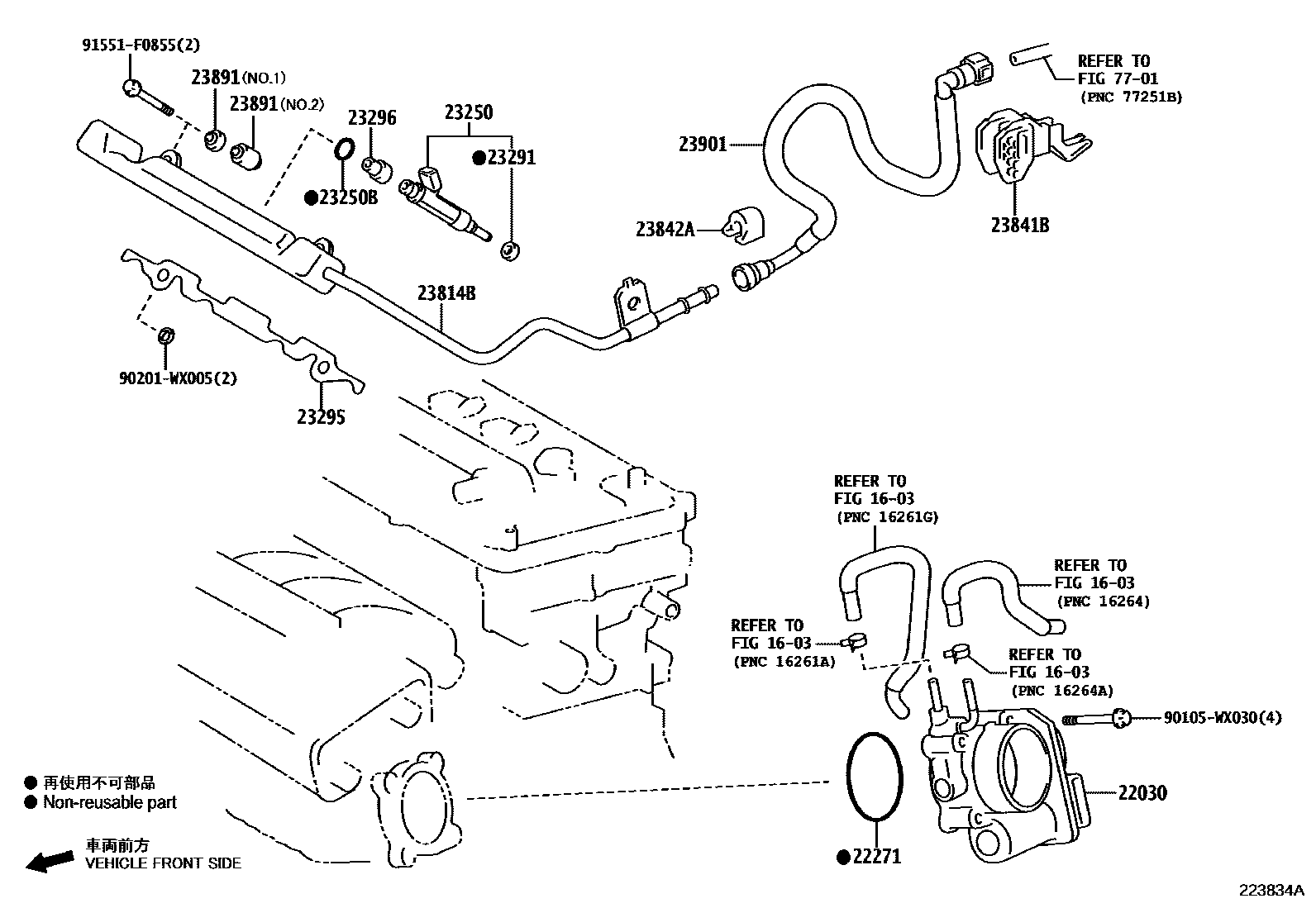

FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-36010i2ZRFE..NSP131201711

22271GASKET, THROTTLE BODY

main22215-YV010i2ZRFE..NSP131201711

23250INJECTOR ASSY, FUEL

main23209-39305×4i2ZRFE..NSP131201711

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2ZRFE..NSP131201711-201804

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i2ZRFE..NSP131201711

23295HOLDER, INJECTOR, NO.1

main23295-YV010i2ZRFE..NSP131201711

23296HOLDER, INJECTOR, NO.2

main23296-YV010×4i2ZRFE..NSP131201711

23814BPIPE, FUEL DELIVERY

main23814-37120i2ZRFE..NSP131201711

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37070i2ZRFE..NSP131201711

sub23841-37140

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i2ZRFE..NSP131201711

23891SPACER, FUEL DELIVERY

main23891-37010×2i2ZRFE..NSP131201711-201804

main23891-YV020×2i2ZRFE..NSP131201711-201804

23901TUBE SUB-ASSY, FUEL

main23901-0T440i2ZRFE..NSP131201711

7701

90105WX030

main90105-WX030

90201WX005

main90201-WX005

91551F0855

main91551-F0855

17 parts on this diagram · 1 diagram in section
