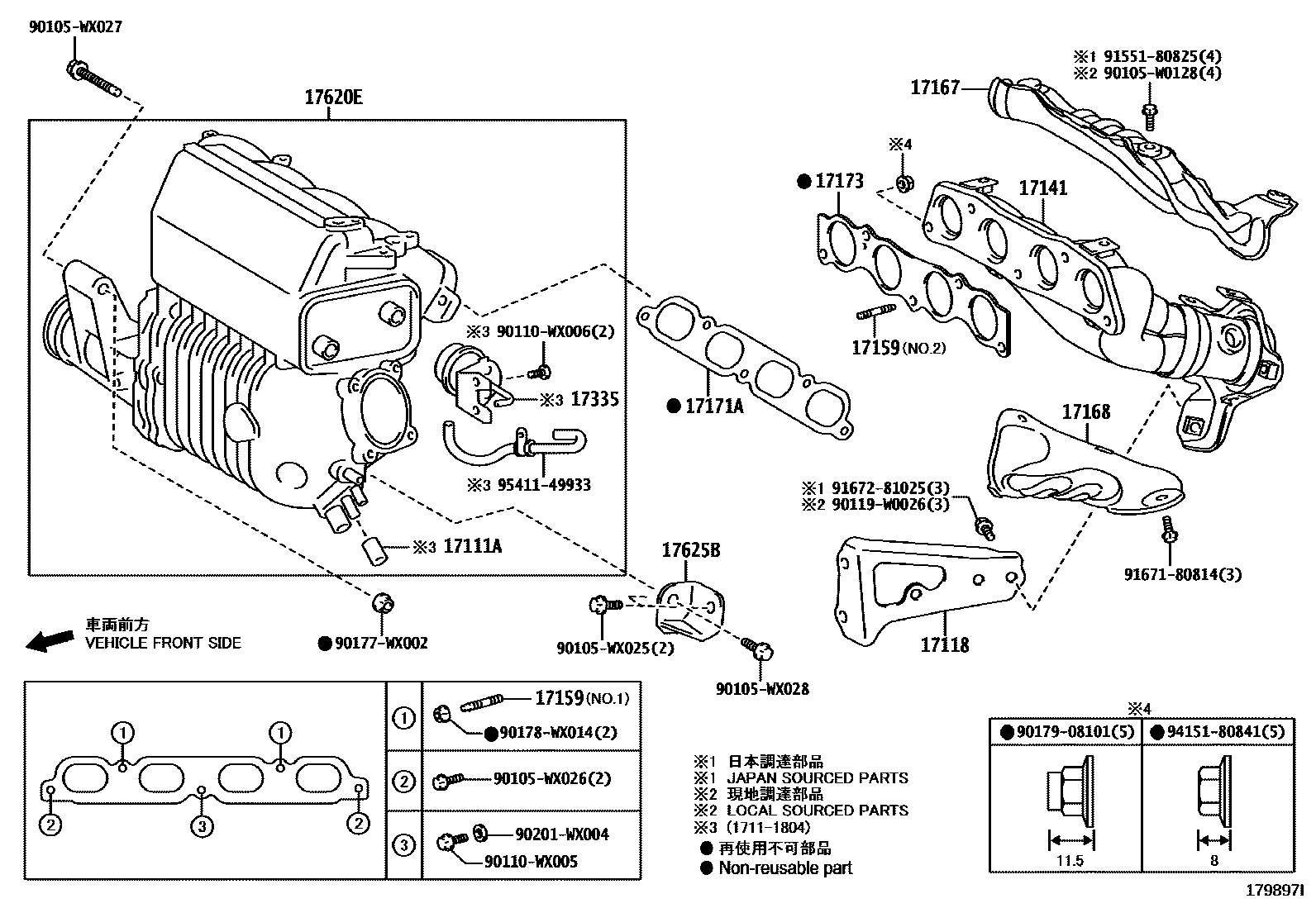

MANIFOLD

17111APLUG, NO.1

main90339-03005i2ZRFE..NSP131201711-201804

17118STAY, MANIFOLD

main17118-0T020i2ZRFE..NSP131201711

main17118-37010i2ZRFE..NSP131201711

17141MANIFOLD, EXHAUST

main17141-0T050i2ZRFE..NSP131201711

sub17141-37051

main17141-37051i2ZRFE..NSP131201711

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026i2ZRFE..NSP131201711

main90126-08052i2ZRFE..NSP131201711

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0T020i2ZRFE..NSP131201711

sub17167-37011

main17167-37011i2ZRFE..NSP131201711

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0T030i2ZRFE..NSP131201711

main17168-37100i2ZRFE..NSP131201711

17171AGASKET, INTAKE MANIFOLD

main17171-YV010i2ZRFE..NSP131201711

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0T020i2ZRFE..NSP131201711

main17173-37010i2ZRFE..NSP131201711

17335ACTUATOR, INTAKE AIR CONTROL VALVE

main17335-YV010i2ZRFE..NSP131201711-201804

17620ESUPERCHARGER ASSY

main17620-YV010i2ZRFE..NSP131201711

17625BBRACKET, SUPERCHARGER

main17625-YV020i2ZRFE..NSP131201711

90105W0128

main90105-W0128

90105WX025

main90105-WX025

90105WX026

main90105-WX026

90105WX027

main90105-WX027

90105WX028

main90105-WX028

90110WX005

main90110-WX005

90110WX006

main90110-WX006

90119W0026

main90119-W0026

90177WX002

main90177-WX002

90178WX014

main90178-WX014

9017908101

main90179-08101

90201WX004

main90201-WX004

9155180825

main91551-80825

9167180814

main91671-80814

9167281025

main91672-81025

9415180841

main94151-80841

9541149933

main95411-49933

28 parts on this diagram · 1 diagram in section
