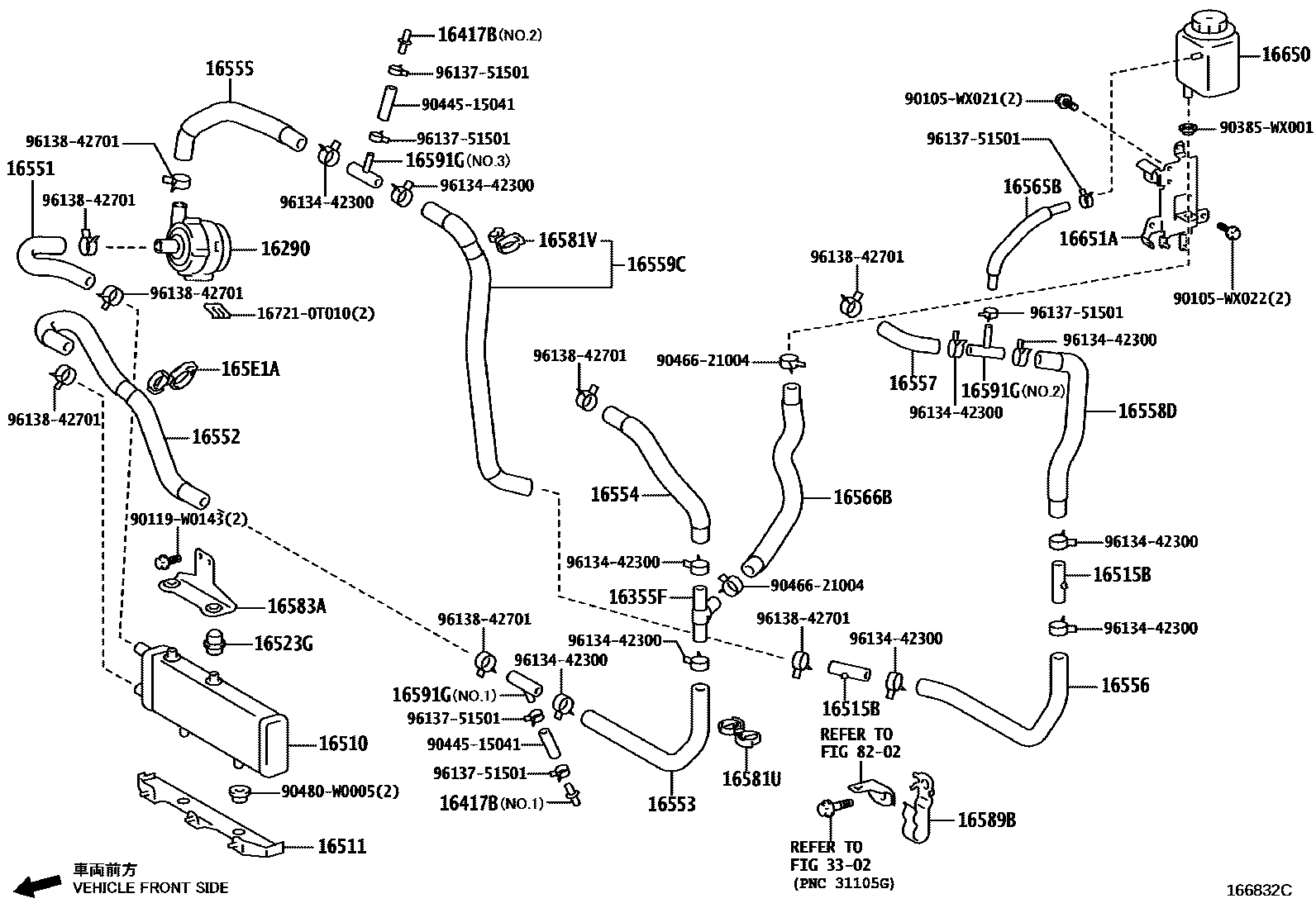

INTERCOOLER & SUB RADIATOR
16290PUMP ASSY, WATER W/MOTOR & BRACKET
16355FJOINT, WATER BY-PASS, FRONT
16417BCOCK, RADIATOR DRAIN
16510SUB-RADIATOR ASSY
16511BRACKET, SUB-RADIATOR
16515BPIPE, SUB-RADIATOR, NO.1
16523GCUSHION, RADIATOR SUPPORT
16551HOSE, SUB-RADIATOR, NO.1
16552HOSE, SUB-RADIATOR, NO.2
16553HOSE, SUB-RADIATOR, NO.3
16554HOSE, SUB-RADIATOR, NO.4
16555HOSE, SUB-RADIATOR, NO.5
16556HOSE, SUB-RADIATOR, NO.6
16557HOSE, SUB-RADIATOR, NO.7
16558DHOSE, INTERCOOLER COOLING WATER, NO.8
16559CHOSE, INTERCOOLER COOLING WATER, NO.9
16565BHOSE, RESERVE TANK INLET
16566BHOSE, RESERVE TANK OUTLET
16581UCLAMP, HOSE(FOR SUB-RADIATOR HOSE NO.3)
16581VCLAMP, HOSE(FOR INTERCOOLER COOLING WATER HOSE NO.9)
16583ABRACKET, RADIATOR, NO.2
16589BBRACKET, RADIATOR HOSE CLAMP
16591GPIPE, RADIATOR BY-PASS
165E1ACLAMP, WATER BY-PASS PIPE, NO.1
16650TANK ASSY, RESERVE(FOR INTERCOOLER)
16651ABRACKET, INTERCOOLER RESERVE TANK
3302
8202
167210T010PLATE, HOLDER
main16721-0T010
90105WX021
main90105-WX021
90105WX022
main90105-WX022
90119W0143
main90119-W0143
90385WX001
main90385-WX001
9044515041
main90445-15041
9046621004
main90466-21004
90480W0005
main90480-W0005
9613442300
main96134-42300
9613751501
main96137-51501
9613842701
main96138-42701
39 parts on this diagram · 1 diagram in section
