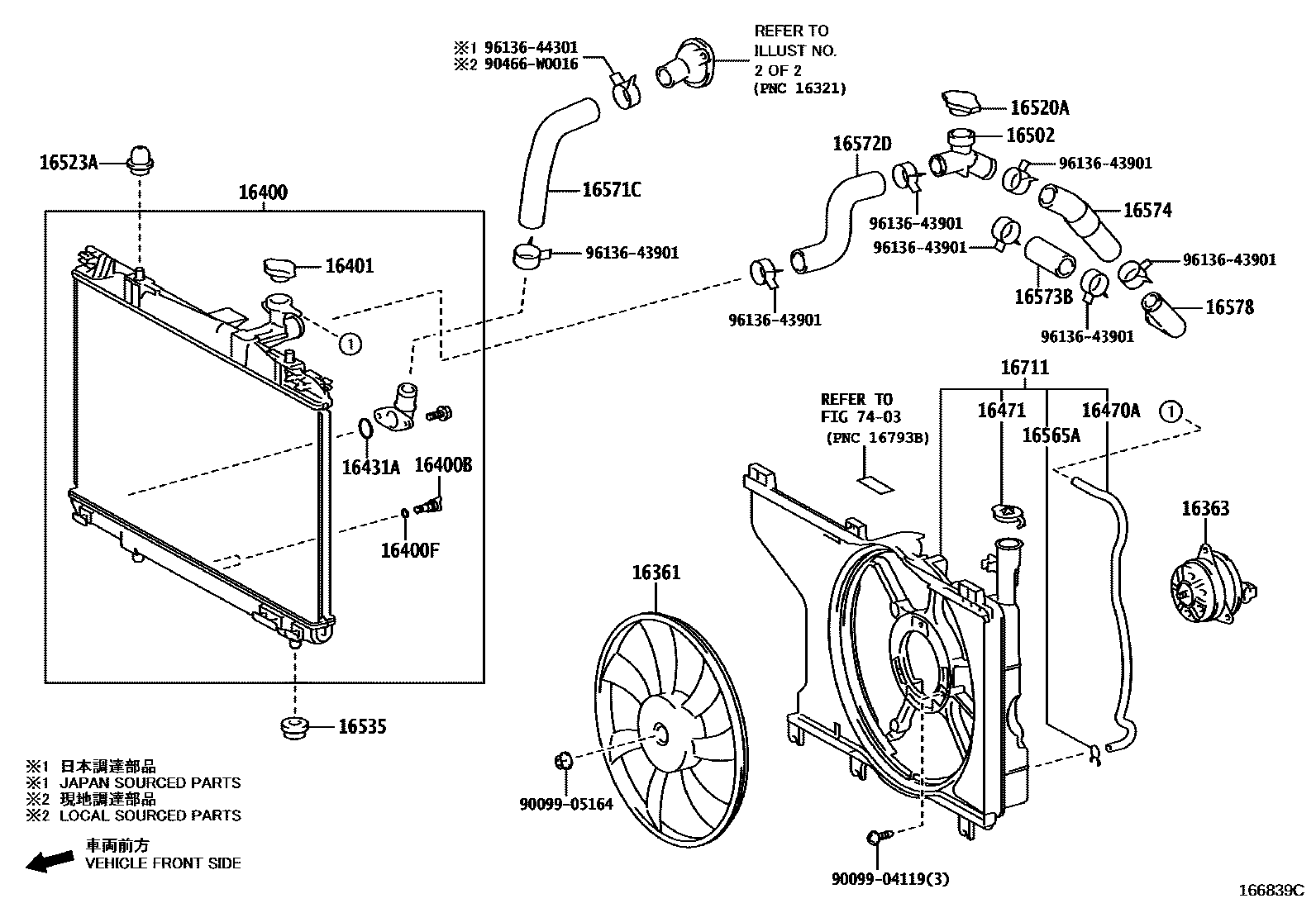

RADIATOR & WATER OUTLET

0001 1 0002 1

16361FAN

main16361-0Y250i2ZRFE..NSP131201711

16363MOTOR, COOLING FAN

main16363-0G051i2ZRFE..NSP131201711

16400RADIATOR ASSY

main16400-0T561i2ZRFE..NSP131201711

16400BPLUG, RADIATOR DRAIN COCK

main16417-0Q040i2ZRFE..NSP131201711-201804

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2ZRFE..NSP131201711-201804

16401CAP SUB-ASSY, RADIATOR

main16401-36020i2ZRFE..NSP131201711-201804

16431ARING, O(FOR RADIATOR WATER INLET)

main16492-0Y070i2ZRFE..NSP131201711-201804

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16378-0Y110i2ZRFE..NSP131201711

16471CAP SUB-ASSY, RESERVE TANK

main16471-23030i2ZRFE..NSP131201711

16502FILLER SUB-ASSY, WATER

main16502-37030i2ZRFE..NSP131201711

16520ACAP SUB-ASSY, WATER FILLER

main16401-30020i2ZRFE..NSP131201711-201804

16523ACUSHION, RADIATOR SUPPORT

main16523-0Q020×2i2ZRFE..NSP131201711

16535SUPPORT, RADIATOR, LOWER

main90480-W0005×2i2ZRFE..NSP131201711

16565ACLIP

main90467-11085i2ZRFE..NSP131201711

16571CHOSE, RADIATOR, NO.1

main16571-37250i2ZRFE..NSP131201711

16572DHOSE, RADIATOR, NO.2

main16572-37230i2ZRFE..NSP131201711

16573BHOSE, RADIATOR, NO.3

main16573-37100i2ZRFE..NSP131201711

16574HOSE, RADIATOR, NO.4

main16574-37030i2ZRFE..NSP131201711

16578PIPE, RADIATOR, NO.2

main16578-37020i2ZRFE..NSP131201711

16711SHROUD, FAN

main16711-0T350i2ZRFE..NSP131201711

7403

9009904119

main90099-04119

9009905164

main90099-05164

90466W0016

main90466-W0016

9613643901

main96136-43901

9613644301

main96136-44301

26 parts on this diagram · 2 diagrams in section
