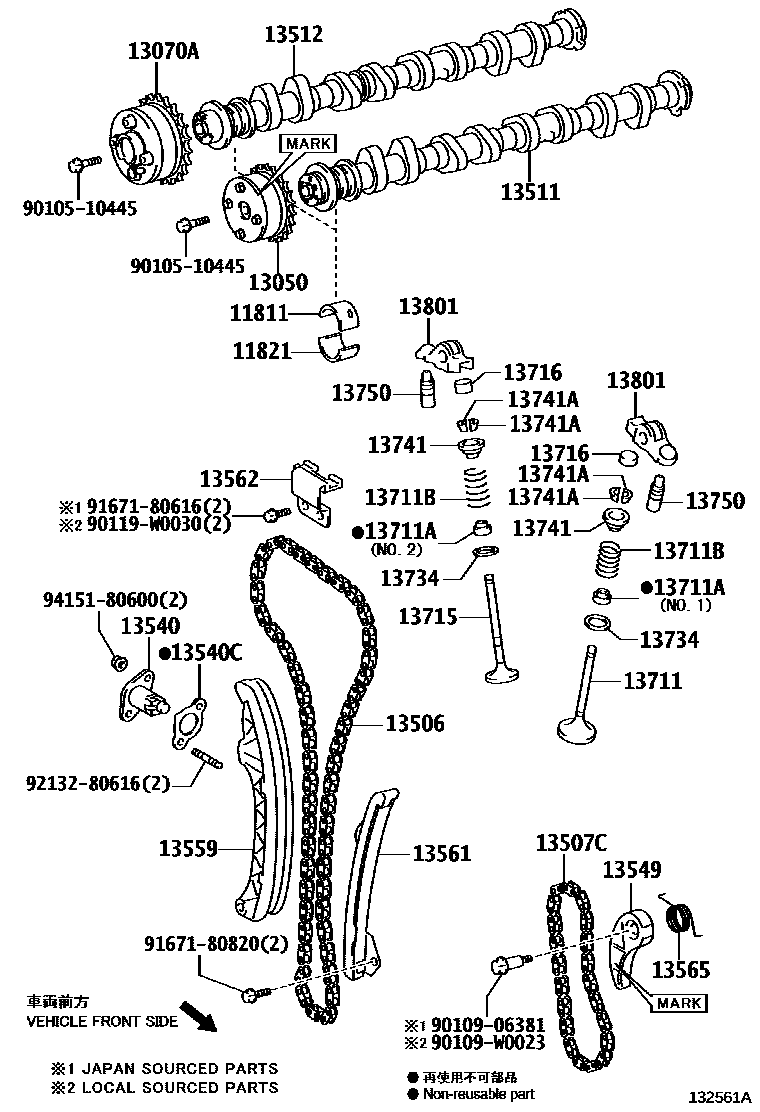

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
13050GEAR ASSY, CAMSHAFT TIMING
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13507CCHAIN SUB-ASSY, OIL PUMP DRIVE
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9010510445
main90105-10445
9010906381
main90109-06381
90109W0023
main90109-W0023
90119W0030
main90119-W0030
9167180616
main91671-80616
9167180820
main91671-80820
9213280616
main92132-80616
9415180600
main94151-80600
33 parts on this diagram · 1 diagram in section
