TELEPHONE & MAYDAY

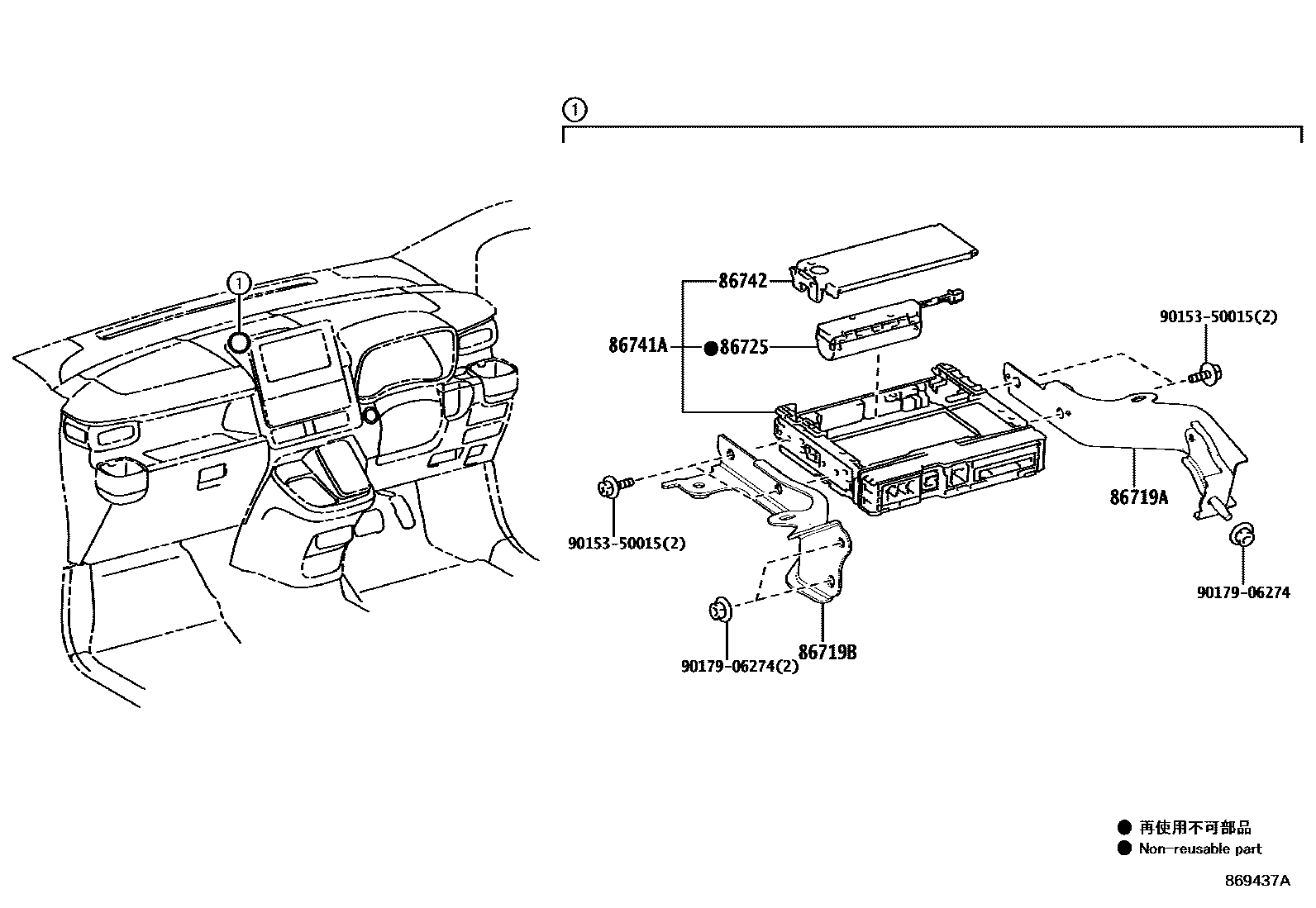

Parts diagram

86719ABRACKET, TELEPHONE NO.1

main86719-52100i¥1,120202207

86719BBRACKET, TELEPHONE NO.2

main86719-52110i¥1,420202207

86725BATTERY, MOBILEPHONE

main86725-78020i¥7,500202207

86741ATRANSCEIVER, TELEMATICS

main86741-42220i¥38,000202207-202401

sub86741-42221¥34,500

main86741-42221i¥34,500202402

86742COVER, TRANSCEIVER

main86742-26010i¥720202207

9015350015

main90153-50015¥60

9017906274

main90179-06274¥70

7 parts on this diagram · 1 diagram in section
