NAVIGATION & FRONT MONITOR DISPLAY

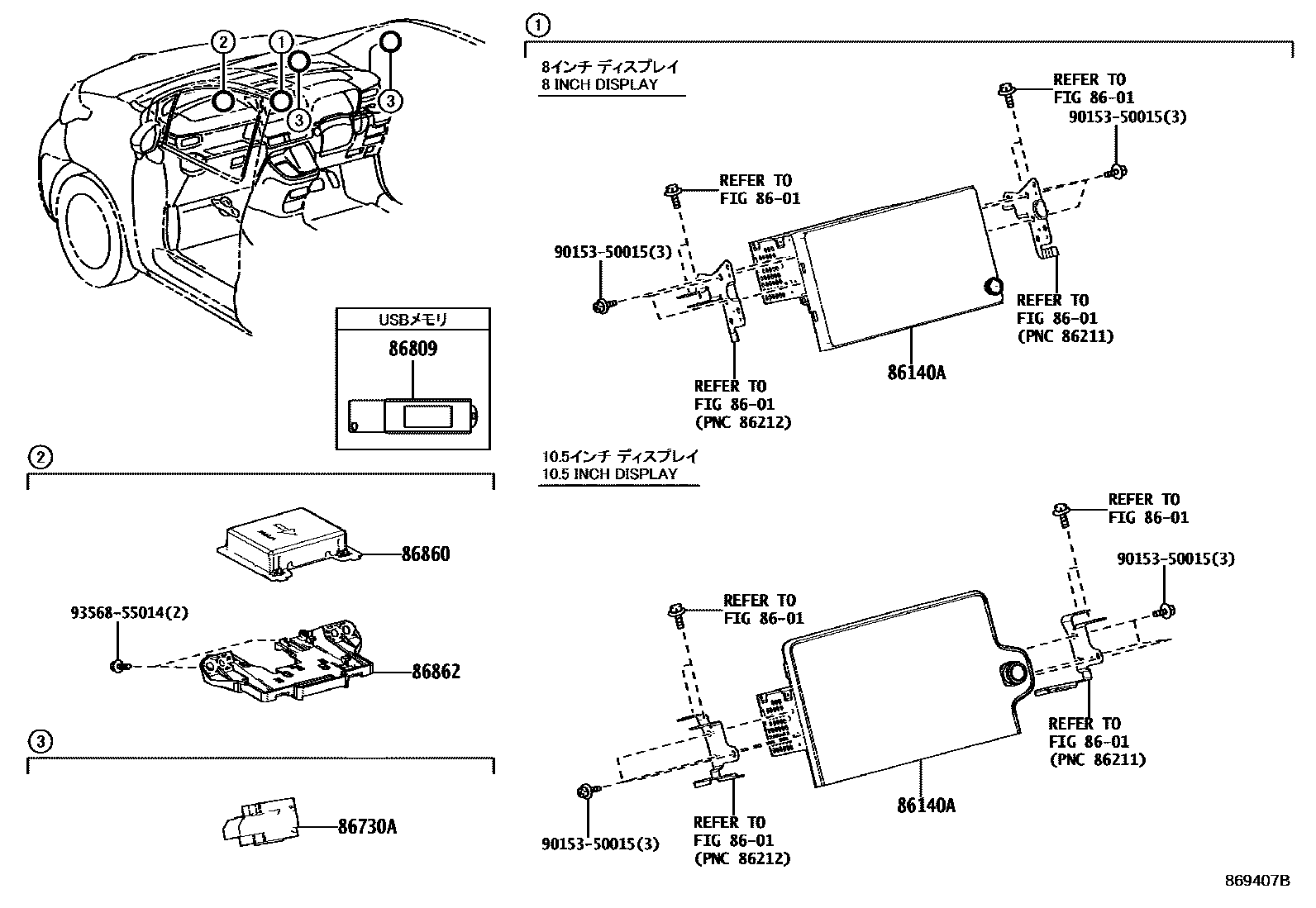

Parts diagram

8601

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-52260i202207-202208

main86100-52261i202405-202406

main86100-52261i202209-202406

main86100-52262i202407-202508

main86100-52262i202407-202508

main86100-52310i202207-202208

main86100-52311i202209-202406

main86100-52311i202405-202406

main86100-52312i202407-202508

main86100-52312i202407-202508

main86140-52640i202207-202406

main86140-52640i202207-202406

main86140-52641i202407-202508

main86140-52641i202407-202508

main86140-52710i202207-202406

main86140-52711i202407-202508

main86140-52A00i202207-202406

main86140-52A00i202207-202406

main86140-52A01i202407-202508

main86140-52A01i202407-202508

main86140-52A10i202207-202406

main86140-52A10i202207-202406

main86140-52A11i202407-202508

main86140-52A11i202407-202508

86730AMICROPHONE ASSY, TELEPHONE

main86730-16010i202207-202508

main86730-16010i202207

86809USB SET, USB MEMORY NAVIGATION DATA

main86809-78010i202207-202210

main86809-78011i202211-202310

main86809-78012i202311-202403

main86809-78013i202404-202410

main86809-78013i202405-202410

main86809-78014i202411-202503

main86809-78014i202411-202503

86860ANTENNA ASSY, NAVIGATION

main86880-52030i202207

86862BRACKET, NAVIGATION ANTENNA

main86862-76050i202207

9015350015

main90153-50015

9356855014

main93568-55014

8 parts on this diagram · 1 diagram in section
