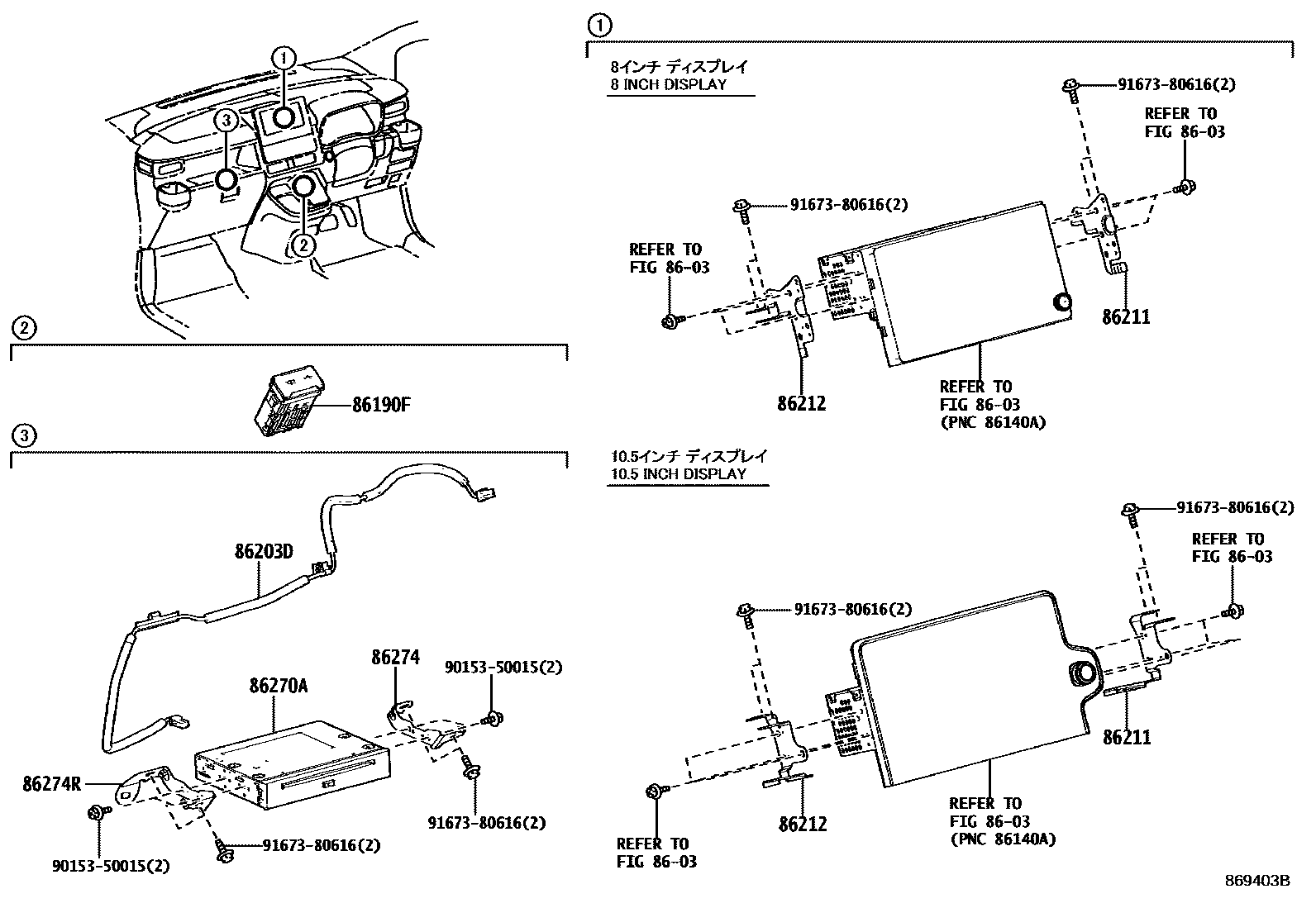

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

8603

86190FADAPTER ASSY, STEREO JACK

main86190-52090iMXPC1#,MXPL1#..G,Z202207-202508

main86190-52090iMXPC1#,MXPL1#..G,Z202207-202508

main86190-52090iMXPC1#,MXPL1#..G,Z202207-202508

main86190-52090iMXPC1#,MXPL1#..G,Z202207-202508

main86190-52090iMXPC1#,MXPL1#..G,Z202207-202508

main86190-52090iMXPC1#,MXPL1#..G,Z202207-202508

86203DWIRE, STEREO COMPONENT, NO.1

86211BRACKET, RADIO, NO.1

main86211-52370iMXPC1#,MXPL1#..Z202207-202405

main86211-52380iMXPC1#,MXPL1#..Z202405

86212BRACKET, RADIO, NO.2

main86212-52370iMXPC1#,MXPL1#..Z202207-202405

main86212-52380iMXPC1#,MXPL1#..Z202405

86270ADISC PLAYER ASSY

86274BRACKET, DISC PLAYER

main86274-52080

main86274-52090

86274RBRACKET, DISC PLAYER, NO.2

9015350015

main90153-50015

9167380616

main91673-80616

10 parts on this diagram · 2 diagrams in section
