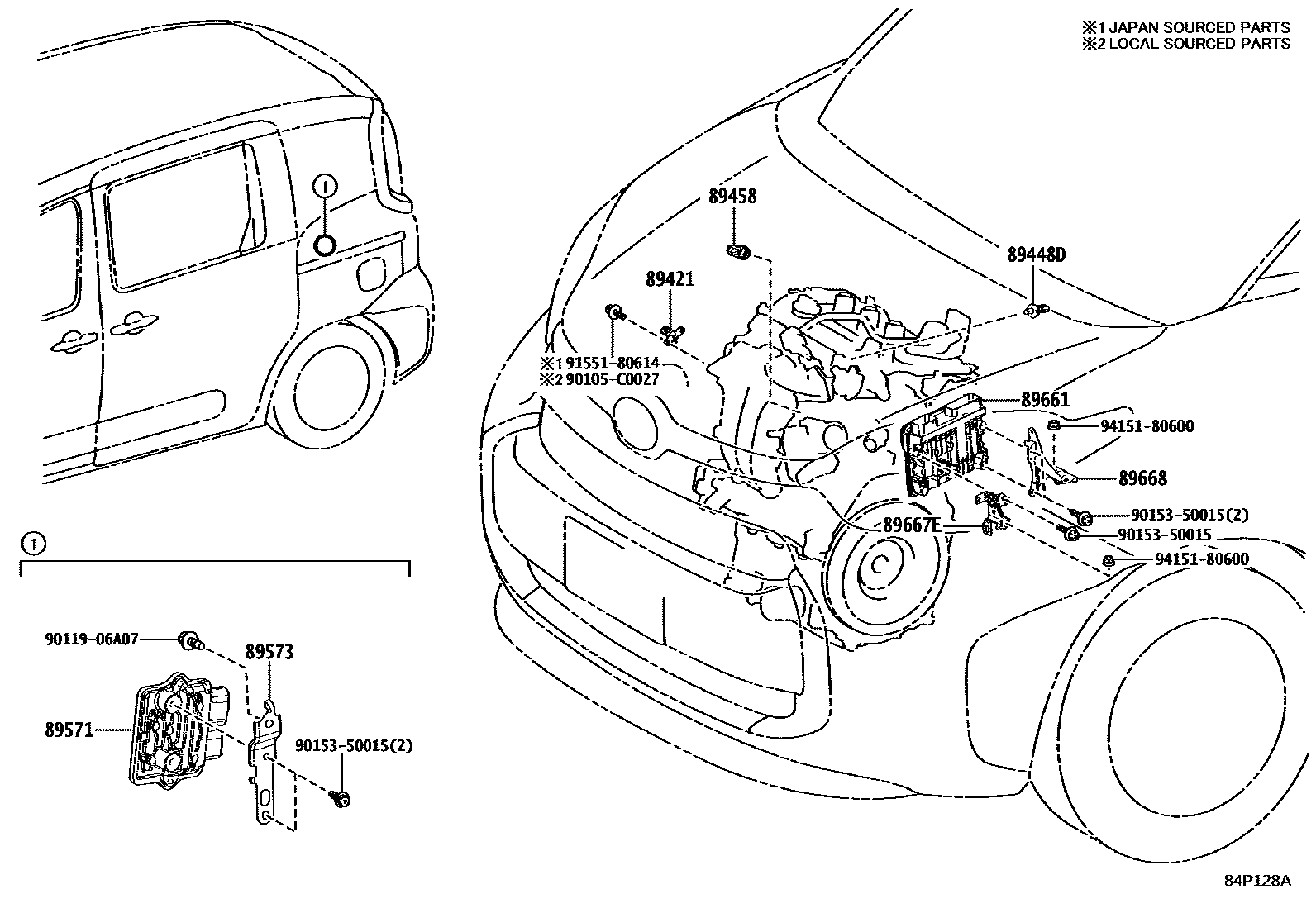

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iMXPC1#,MXPL1#202207

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iMXPC1#,MXPL1#202207

89458SENSOR, FUEL PRESSURE

main89458-33030iMXPC1#202207

89571COMPUTER, FUEL PUMP CONTROL

main89571-10010iMXPC1#202207

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-52050iMXPC1#202207

89661COMPUTER, ENGINE CONTROL

main89661-5CE00iMXPC1#202207-202405

main89661-5CE10iMXPL12,15;MXPL10..07S202207-202405

main89661-5CE20iMXPL10..05S202207-202405

main89661-5CL40iMXPC1#202405-202508

main89661-5CL50iMXPL12,15;MXPL10..07S202405

main89661-5CL60iMXPL10..05S202405

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-K0010iMXPC1#202207

main89667-K0020iMXPL1#202207

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52430iMXPC1#202207

main89668-K0020iMXPL1#202207

90105C0027

main90105-C0027

9011906A07

main90119-06A07

9015350015

main90153-50015

9155180614

main91551-80614

9415180600

main94151-80600

13 parts on this diagram · 2 diagrams in section
