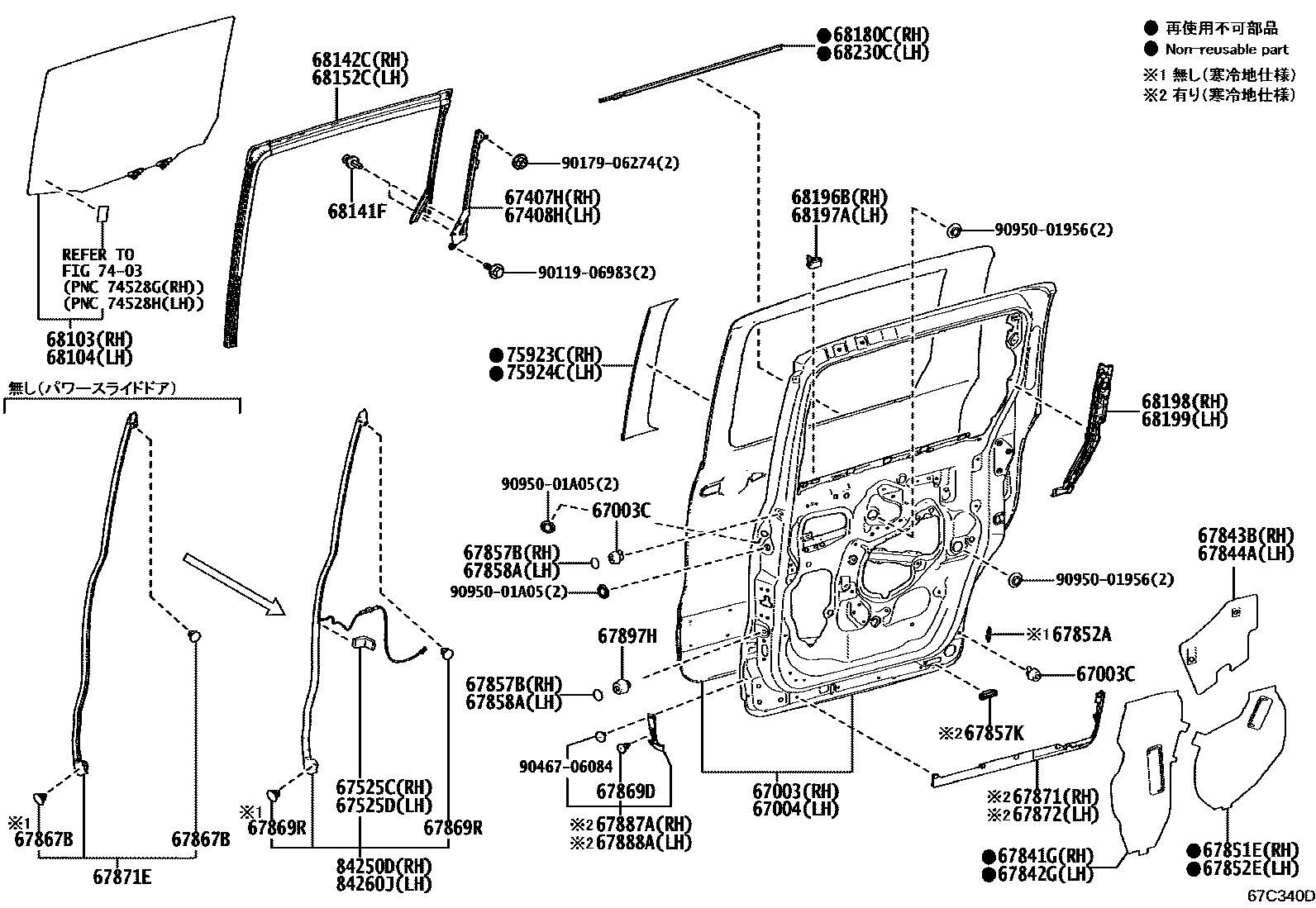

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH
67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH
67525CCOVER, SLIDE DOOR PANEL, LOWER RH
67525DCOVER, SLIDE DOOR PANEL, LOWER LH
67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH
67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH
67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2
67857BPROTECTOR, REAR DOOR PANEL, RH
67857KPROTECTOR, SLIDE DOOR PANEL
67858APROTECTOR, REAR DOOR PANEL, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67869DCLIP, DOOR WEATHERSTRIP
67869RCLIP(FOR POWER SLIDE DOOR SENSOR)
67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH
67872WEATHERSTRIP, REAR DOOR, LH
main67872-52270
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
67897HCUSHION, REAR DOOR
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68141FCLIP, REAR DOOR GLASS RUN
68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68196BSEAL, REAR DOOR BELT, FRONT RH
68197ASEAL, REAR DOOR BELT, FRONT LH
68198SEAL, REAR DOOR BELT, REAR RH
68199SEAL, REAR DOOR BELT, REAR LH
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
7403
75923CTAPE, BLACK OUT, NO.2 RH
75924CTAPE, BLACK OUT, NO.2 LH
84250DSENSOR ASSY, POWER SLIDE DOOR, RH
84260JSENSOR ASSY, POWER SLIDE DOOR, LH
9011906983
main90119-06983
9017906274
main90179-06274
9046706084
main90467-06084
9095001956
main90950-01956
9095001A05
main90950-01A05
47 parts on this diagram · 2 diagrams in section
