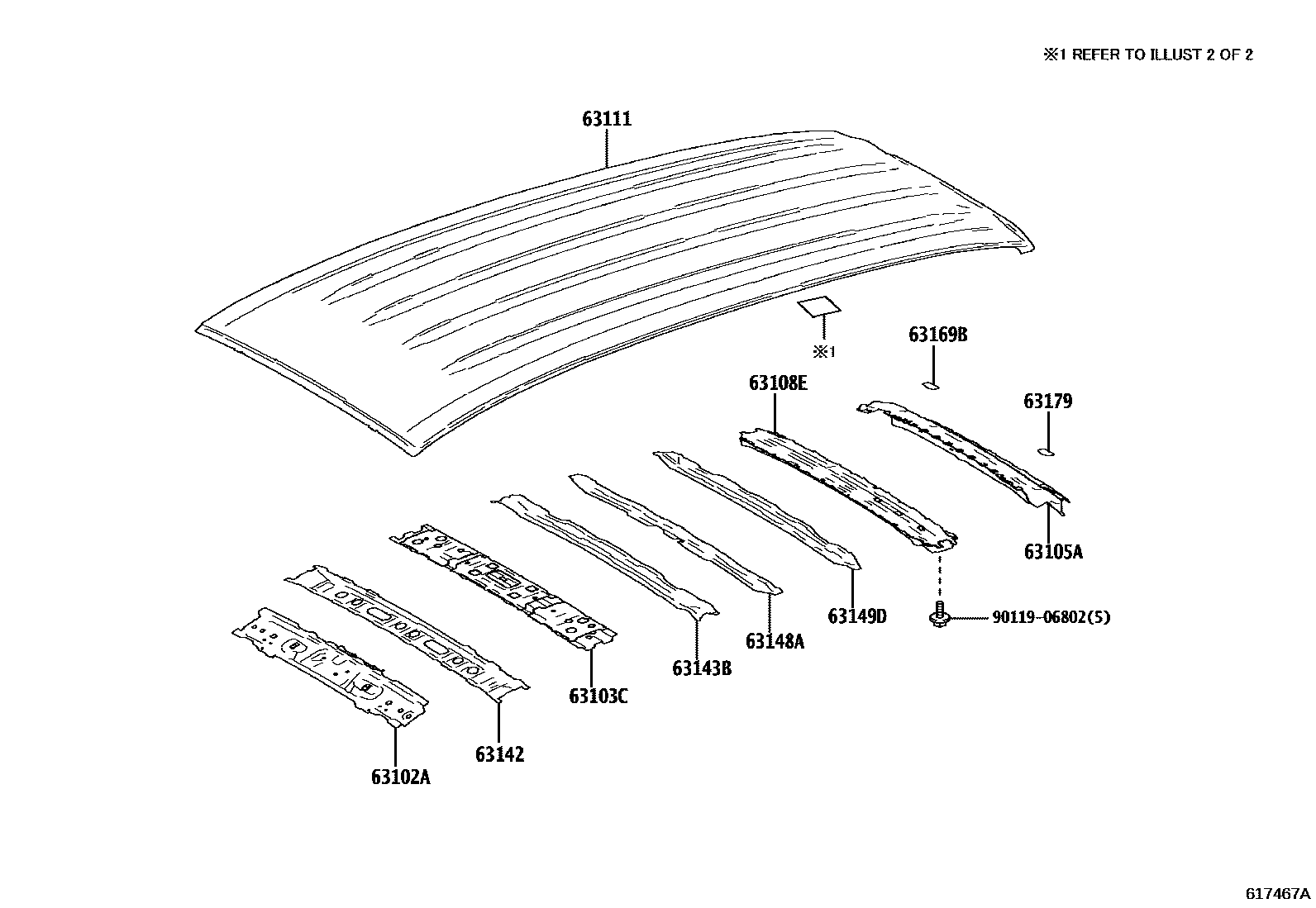

ROOF PANEL & BACK WINDOW GLASS

0001 1������� 0002 1���������������

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52290iMXPC1#,MXPL1#202207

63103CREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-52120iMXPC1#,MXPL1#202207

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-52250iMXPC1#,MXPL1#202207

63108EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63108-52030iMXPC1#,MXPL1#202207

63111PANEL, ROOF

main63111-52510iMXPC1#,MXPL1#202207

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-52140iMXPC1#,MXPL1#202207

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-52250iMXPC1#,MXPL1#202207

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-52170iMXPC1#,MXPL1#202207

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-52110iMXPC1#,MXPL1#202207

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-47010iMXPC1#,MXPL1#202207

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010iMXPC1#,MXPL1#202207

9011906802

main90119-06802

12 parts on this diagram · 2 diagrams in section
