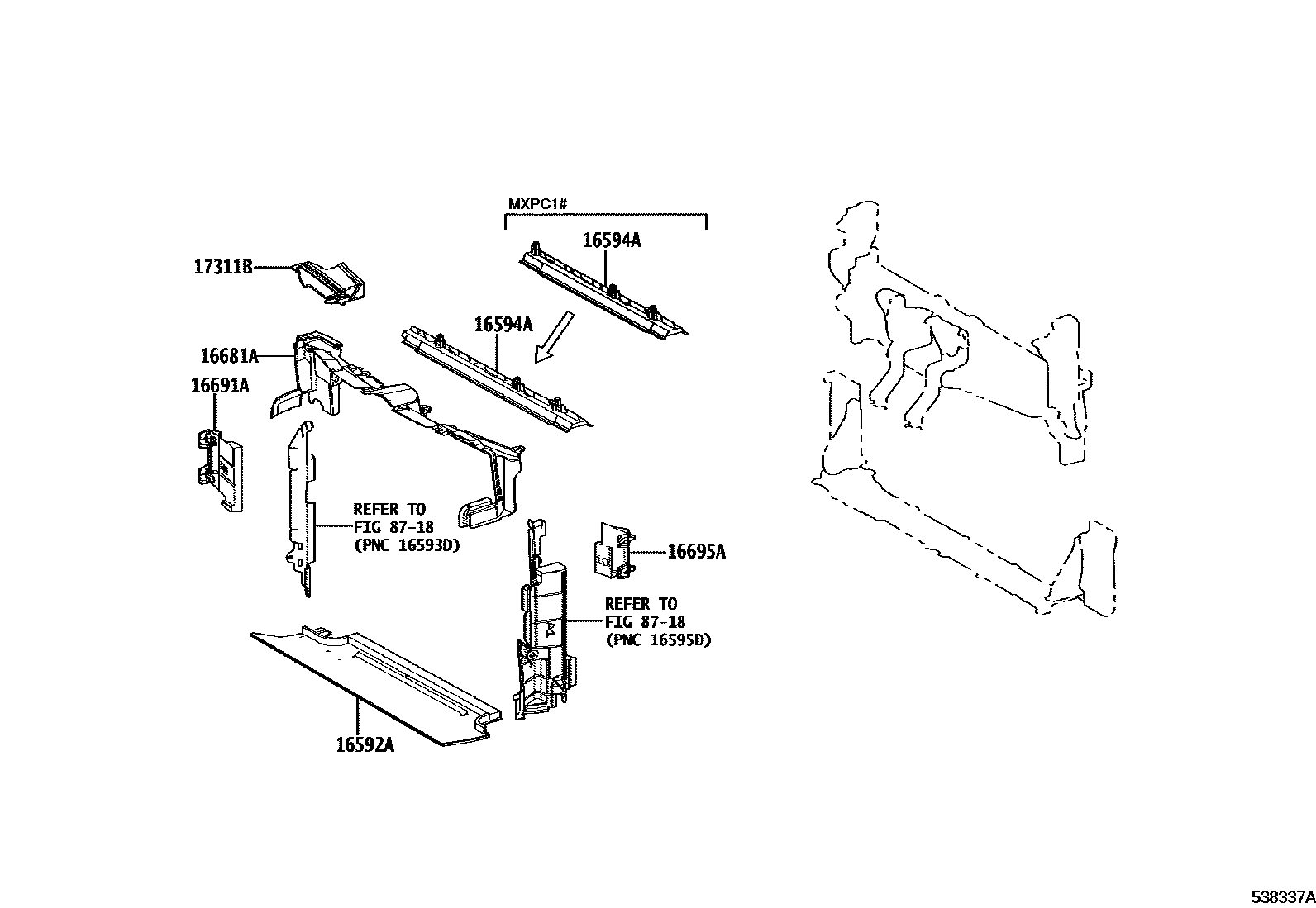

FRONT FENDER APRON & DASH PANEL

0001 1������� & ��������������� 0002 1����������� & ���������� 0003 1���������

16592AGUIDE, RADIATOR AIR, NO.3

main16592-15020iM15#..MXPC1#,MXPL1#202207

16594AGUIDE, RADIATOR AIR, NO.2

main16594-15010iM15AFKS..MXPC1#202207

main16594-15020iM15AFXE..MXPL1#202207

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-15040iM15#..MXPC1#,MXPL1#202207

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-15010iM15#..MXPC1#,MXPL1#202207

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-15010iM15#..MXPC1#,MXPL1#202207

17311BDUCT, AIR INLET, NO.1

main17311-15030iM15#..MXPC1#,MXPL1#202207

8718

7 parts on this diagram · 3 diagrams in section
