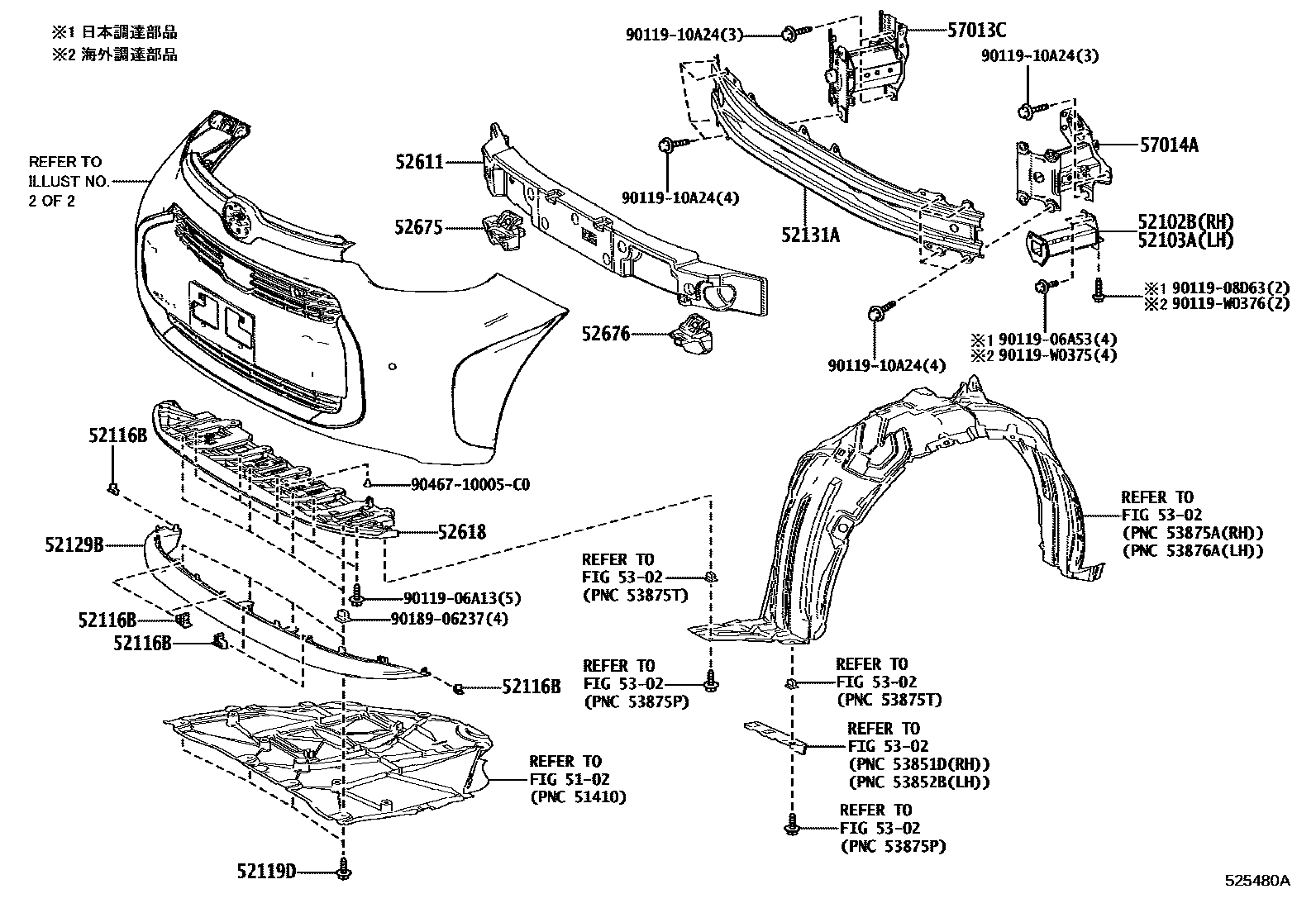

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-52040iMXPC1#,MXPL1#202207

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-52040iMXPC1#,MXPL1#202207

52116BRETAINER, FRONT BUMPER

main75392-52030iMXPC1#,MXPL1#202207

52119DSCREW, NO.1

main90159-60477iMXPC1#,MXPL1#202207

52129BCOVER, FRONT BUMPER, LOWER

main52129-52320iMXPC1#,MXPL1#202207

52131AREINFORCEMENT, FRONT BUMPER

main52131-52350iMXPC1#,MXPL1#202207-202404

sub52131-52360

main52131-52360iMXPC1#,MXPL1#202405

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52400iMXPC1#,MXPL1#202207

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52200iMXPC1#,MXPL1#202207

52675SUPPORT, FRONT BUMPER LOWER SIDE, RH

main52675-52020iMXPC1#,MXPL1#202207

52676SUPPORT, FRONT BUMPER LOWER SIDE, LH

main52676-52020iMXPC1#,MXPL1#202207

5302

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-52060iMXPC1#,MXPL1#202207

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-52060iMXPC1#,MXPL1#202207

9011906A13

main90119-06A13

9011906A53

main90119-06A53

9011908D63

main90119-08D63

9011910A24

main90119-10A24

90119W0375

main90119-W0375

90119W0376

main90119-W0376

9018906237

main90189-06237

9046710005C0

main90467-10005C0

22 parts on this diagram · 2 diagrams in section
