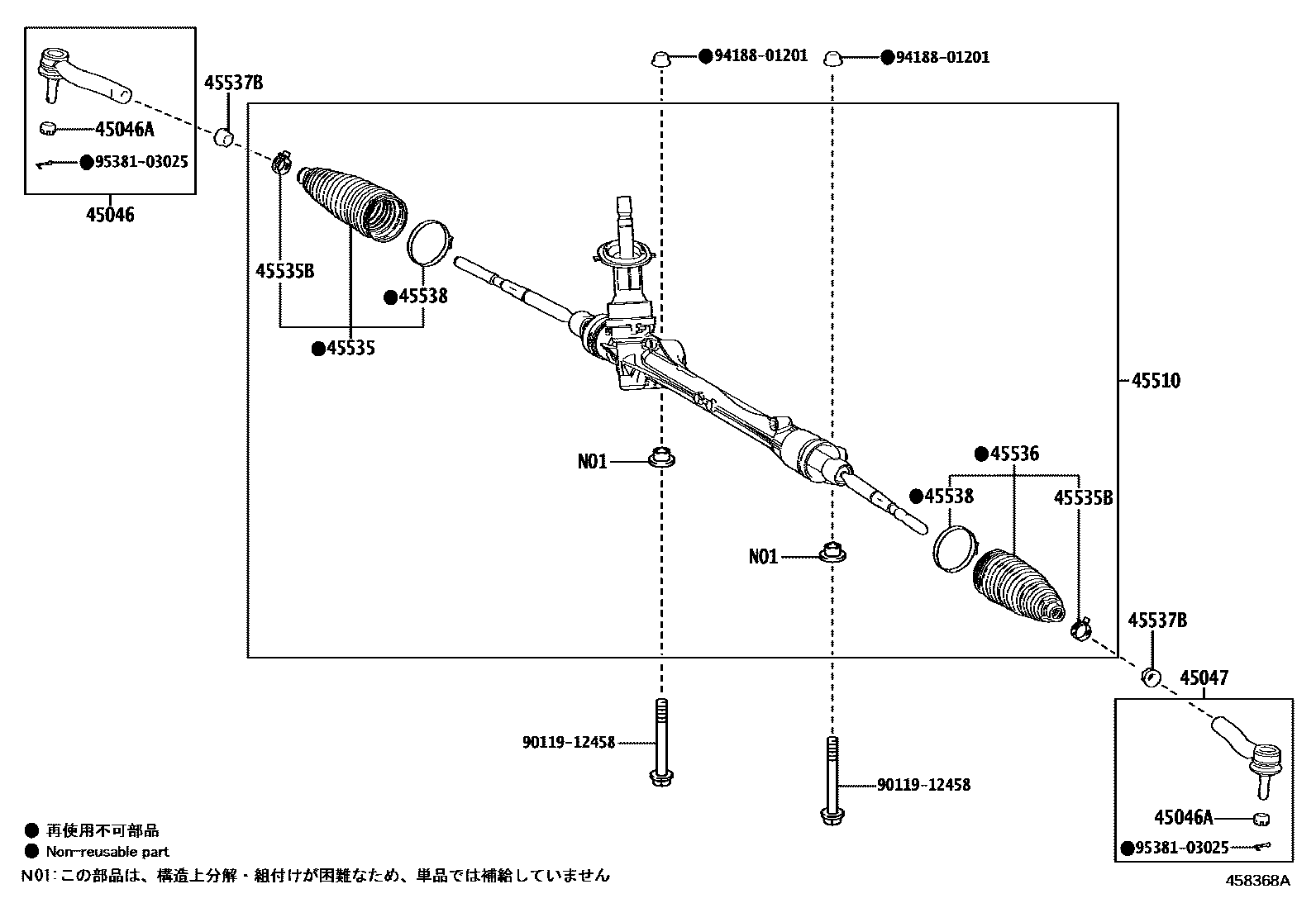

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-K9015iMXPC1#,MXPL1#202207

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMXPC1#,MXPL1#202207

45047END SUB-ASSY, TIE ROD, LH

main45047-K9015iMXPC1#,MXPL1#202207

45510GEAR ASSY, STEERING

main45510-K0010iMXPC1#,MXPL1#202207

45535BOOT, STEERING RACK, NO.1

main45535-59075iMXPC1#,MXPL1#202207

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iMXPC1#,MXPL1#202207

45536BOOT, STEERING RACK, NO.2

main45535-59075iMXPC1#,MXPL1#202207

45537BNUT, RACK END LOCK

main90179-14019iMXPC1#,MXPL1#202207

45538RETAINER, STEERING RACK BOOT

main45538-48020iMXPC1#,MXPL1#202207

9011912458

main90119-12458

9418801201

main94188-01201

9538103025

main95381-03025

12 parts on this diagram · 1 diagram in section
